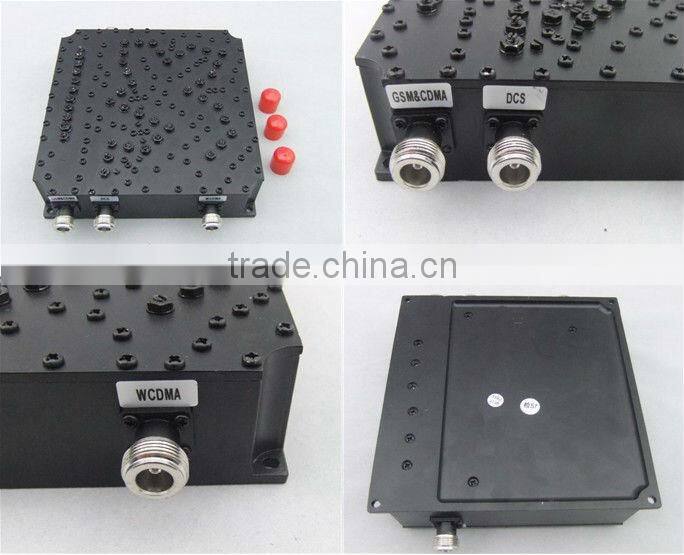

GSM900/DCS1800/UMTS2100 Triplexer Combiner

Name: GSM900/DCS1800/UMTS2100 Triplexer Combiner
Brand: SETSAIL
SKU: 132976887
Availability: InStock

Hefei Setsail Telecom Co., Ltd. Gold Verified Supplier

5Yrs

US$ 1 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

SETSAIL

Model Number:

YFTX-RF-01-NF

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name SETSAIL

Model Number YFTX-RF-01-NF

Applications: GSM900/DCS1800/UMTS2100MHz, RF Triplexer Combiner (Tri-band Combiner)

1. Mobile Communication Network Optimization and In-door distribution system.

2. Cluster communication, satellite communication, shortwave communication and hopping radio.

3. Radar, electronic navigation and electronic confrontation.

4. Aerospace equipment systems.

Technical Specifications

Product Name	Triplexer		Code	90040019
Product Type	YFTX-RF-01-NF
Port Name	GSM	DCS	UMTS
Frequency(MHz)	885-960	1710-1880	1920-2170
Insertion loss(dB)	≤ 0.4dB	≤ 0.8dB	≤ 0.8dB
Ripple in-band(dB)	≤0.2dB	≤0.6dB	≤ 0.6dB
Stop-band Attenuation(dB)	≥80@1710-1880MHZ ≥80@1920-2170MHZ	≥80@885-960MHZ ≥80@1920-2170MHZ	≥80@885-960MHZ ≥80@1920-2170MHZ
VSWR	≤1.3
Impedance(ohm)	50 Ω
Third-order intermodulation(dBc)	≤-120dBc 2×43dBm
Power Rating(w)	100W
Connector	N female
Temperature	-40deg ~ +85deg
Color	Black paint
Size(mm)	224mm×146mm×40mm(Without tuning screws,connector)
