Home > Products > Ceramic Fiber Board > SGS Certificate thermal insulation board supplier
SGS Certificate thermal insulation board supplier
- 1000 Ton / Tons per Month
- CHINA PORT
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Application: | Heat Insulation | Thickness: | 10-80mm | Width: | 1000/700/600 Mm |
Length: | 600/900/1000/1200mm | Grade: | ST (Standard) | Chemical Composition: | AL2O3+SIO2 |
Working Temperature: | 1260C | Fiber Diameter: | 3-5um | Thermal Conductivity: | 0.135 |
Shrinkage (1800℉, 3h): | 1.1 | Place of Origin: | Henan, China | Model Number: | 1260 STD |
Brand Name: | HENGRUI |
Product Description

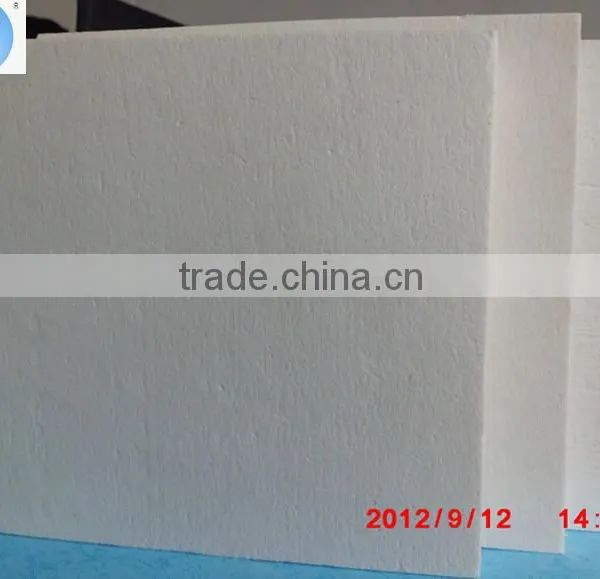

Hengrui thermal insulation board for industrial furnace is made by using Hengrui ceramic fiber bulk and a little binding agent through vacuum forming. Hengrui thermal insulation board can maintain its mechanical strength after high-temperature heating, and the board includes 6 levels: 1050℃, 1260℃, 1350℃, 1430℃, 1600℃, and 1700℃. Hengrui thermal insulation board can resist the scouring of airflow for its high strength, so it can be the material of internal linings.
The usability of thermal insulation board is really good under the condition of high moisture. Hengrui ceramic fiber board has excellent hyd-rophobicity after processing by specific techniques.
Hengrui thermal insulation board is made by using Hengrui ceramic fiber bulk and inorganic binding agent through vacuum forming. When using the board under the circumstance of high temperature, the pollution gas will not be generated.
We can provide free samples for customers
We can delivery goods quickly in 2-7 days
We can do OEM for trading company
thermal insulation board | HR1050
| HR1260ST
| HR1260HP
|
HR1350HA
| HR1430Zr
| HR1600 PMF | HR1700 PMF | |
Classification Temperature(°C)
| 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | 1700 | |
Density(KG/M3)
| 250-350 | 250-350 | 250-350 | 320-400 | 320-400 | 400-550 | 400-550 | |
Linear shrinkage%(24h) | ≤2.0 900°C | ≤2.0 1000°C | ≤2.0 1000°C | ≤2.5 1100°C | ≤3.0 1200°C | ≤1.5 1400°C | ≤1.5 1500°C | |
Flexural strength(MPa)
| ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.7 | ≥0.7 | |
Thermal conductivity rate(W/m.k) | 400 °C | 0.08 | 0.084 | 0.084 | 0.084 | 0.084 | -- | -- |
600°C
| 0.11 | 0.128 | 0.128 | 0.125 | 0.125 | 0.16 | 0.16 | |
Chemical Composition(%) | Al2O3
| 42-44 | 45-46 | 47-49 | 52-55 | 38-44 | ≥72 | ≥75 |
Al2O3+SiO2
| ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥83 | ≥99.0 | ≥99.0 | |
ZrO3 | - | - | - | - | 15-17 | - | - | |
Other | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
◊ Thermal insulation materials of industrial furnaces, steel ladles, and foundry ladles.
◊ Electric insulation and thermal insulation materials of industrial furnaces.
◊ Door and sealing expansion joints of industrial furnaces.
◊ Crystallite glass and hot melt (curved) glass release
◊ Sound absorption and thermal insulation materials of mobile mufflers.
◊ Exhaust pipe insulation, isolation anti-sintering materials.
◊ Insulation material for home application.
