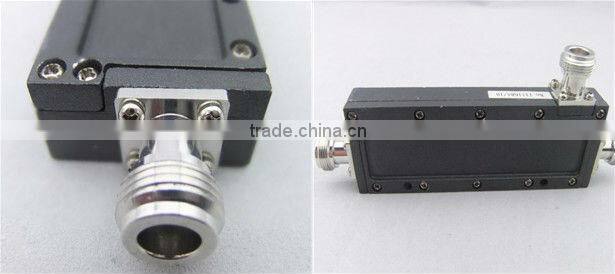

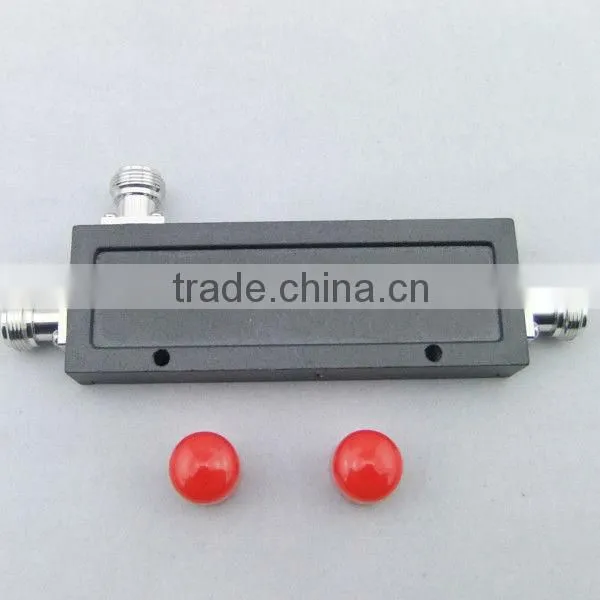

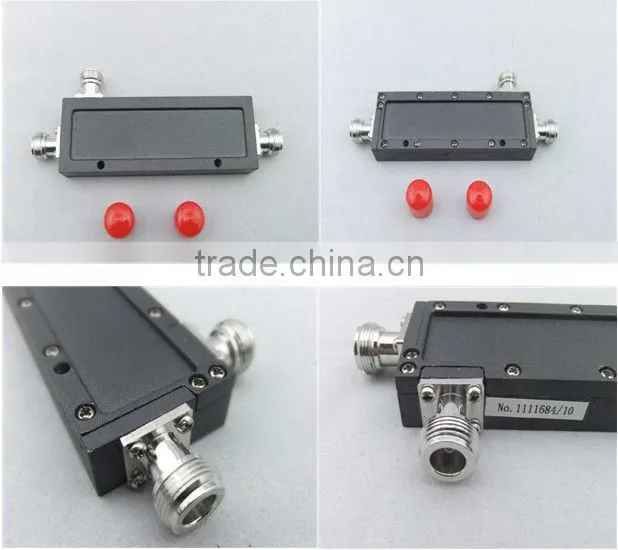

30dB RF Directional Coupler 698-2700MHz, (IBS Telecommunication)
US$ 1.2 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
SETSAIL
Model Number:
YF-DC-0727-XX-NF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
670-2700MHz, RF Coupler Directional (IBS Telecommunication)NegotiableMOQ: 1 Piece -
800-2500MHz 6/10/15/20/30dB Cavity RF Directional CouplerNegotiableMOQ: 1 Piece
-
800-2500MHz 6/10/15/20/30dB RF Cavity Directional CouplerNegotiableMOQ: 1 Piece
-
800-2500MHz 6/10/15/20/30dB RF Cavity Directional CouplerNegotiableMOQ: 1 Piece
-
6/10/15/20/30dB RF Cavity Directional Coupler(800-2500MHz)NegotiableMOQ: 1 Piece
Place of Origin
Anhui, China
Brand Name
SETSAIL
Model Number
YF-DC-0727-XX-NF
Applications:
698-2700MHz, 5/6/7/8/9/10/15/20/30/40/50dB, RF Cavity Directional Coupler
Widely Used in IBS and BTS projects
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Technical Specifications:
| Model Number | YF-DC-0727-06-NF | YF-DC-0727-10-NF | YF-DC-0727-15-NF | YF-DC-0727-20-NF | YF-DC-0727-30-NF |
| Frequency | 800-2500 | 800-2500 | 800-2500 | 800-2500 | 800-2500 |
| Insertion Loss | 1.7 | 0.8 | 0.5 | 0.4 | 0.3 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 | 1.25:1 |
| Directivity | 20 | 20 | 20 | 20 | 20 |
| Power | 200 | 200 | 200 | 200 | 200 |
| Impedance | 50 | 50 | 50 | 50 | 50 |
| Coupling | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 |
| RF Connector | N-female | N-female | N-female | N-female | N-female |
| Relative Humidity | 5%-95% | 5%-95% | 5%-95% | 5%-95% | 5%-95% |
| Color | Black | Black | Black | Black | Black |
| Temperature | -35~+125 | -35~+125 | -35~+125 | -35~+125 | -35~+125 |
| Weight | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 |
| Apllication | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor | Indoor or Outdoor |
Note: Specifications can be changed according with customers' requirements.
Cotact
Please feel free to contact with below information:
Phone:0086-551-65329702
Skype:maniron-mary
Mail:sales_2(@)
Yours Mary Ma
