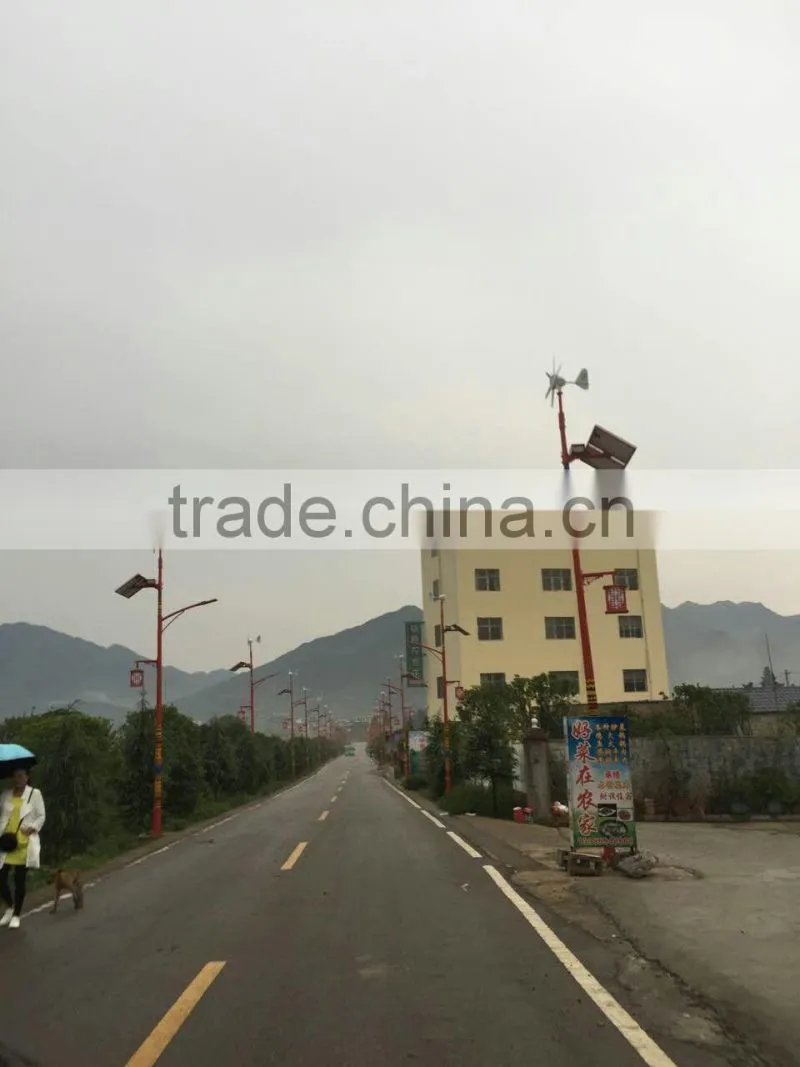

Solar street light LED road light traditional style

Material: Q235, mild steel (Q275 Q345 available)

Height: 4m, 5m, 6m, 7m,8m, 9m, 10m, 11m, 12m

Thickness: 2.75mm, 3mm

Finish: Hot-dip Galvanize, powder coating
Life span: 25years

Power:20W-100W

Chip: Epistar ,Bridgelux or Cree.

Average Illumination: 6m over 25Lux, 8m over 20Lux

LED Luminous Efficiency: over 110Lm/m

Light Luminous Efficiency: over 90%

Color temperature: 3000-5500K

Color Rendering Index: Ra over 75

Input Voltage: 85-265V, 50-60Hz

Power factor: over 0.95

Power efficiency: over 90%

Working temperature: -60 to +70 centigrade

IP rating: IP65

Power 50-200W

Mono-crystalline panel or Polycrystalline panel

Power tolerance : ±5%

Working temperature:  -40°C to 85°C

Solar Gel Battery (12V & 24V)

l  Chinese leading manufacturer of solar gel battery

l  Maintenance-free Gel battery

l  Patented design- 24V series, perfect combination of 2 12V        battery into 1

l  Patented formula: alloy and lead paste formula assures strong recovery after discharge

l  Long life span: Gel electrolyte – no acid layer, no leaking

l  Echo-friendly: No Cadmium. No leaking

l  Working temperature: -40 to +50 centigrade

l  Easy transportation with no leaking of battery

Waterproof

  Anti-corrosion

  Pressure resistant

  Heat protection

Intelligent sensor of

l  Light control

l  Time control

l  Power control

l  Over charging protection

l  Discharging protection

l  Short Circuit protection

l  Reverse polarity protection
