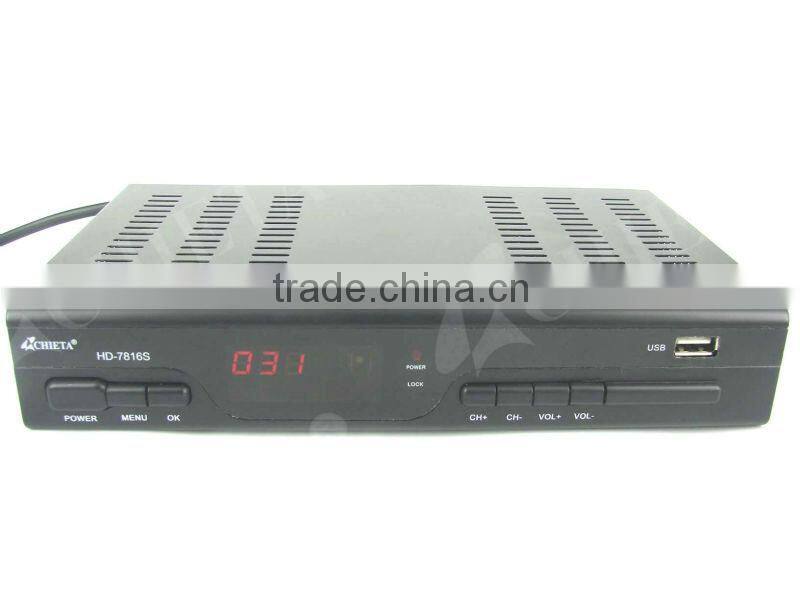

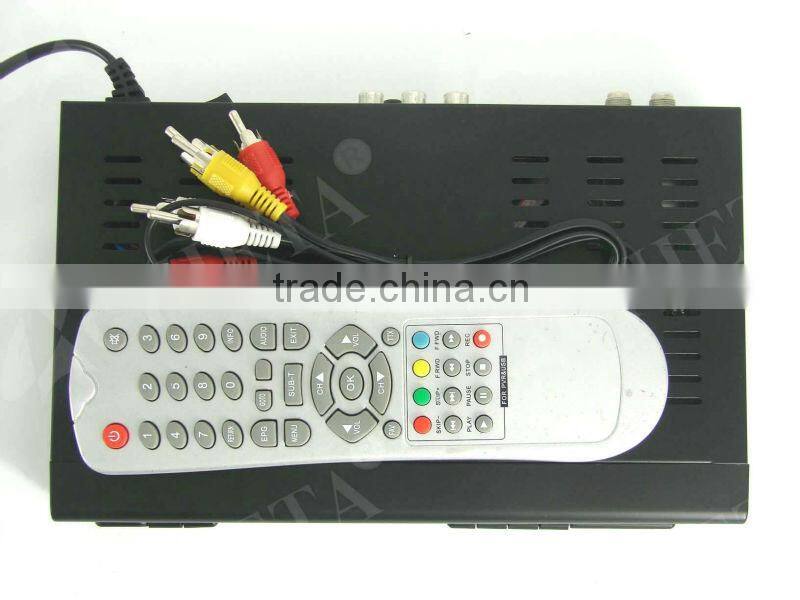

DVB-S2 TV Satellite TV Tuner Decoder

FOB Price

USD $10 - $20 / Piece

2000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Zhuhai/ Shenzhen/ Guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Chieta Satellite Receiver	Model Number:	DVB-S2 220mm
FTA(Free To Air):	Yes	Type:	Digital	High Definition:	Yes

Product Description

DVB-S2 TV Satellite TV Tuner Decoder

Product Description

*DVB-S/S2 standard compliant

*Compatible with MPEG-4,MPEG-2 output

*Compatible with MPEG-1 Layer I & II, Stereo Digital Audio

*950-2150MHz input & LOOP OUT

*Multi-bilingual OSD language, audio & subtitle language supported

*Fully support to Electronic Program Guide(EPG)

*Support Picture in Graphics(PIG)

*Support Auto & Manual search and Bilnd Scan

*Channel editing: Favorites, Move, Skip,Lock, Delete

*Parental control for channels

*Plug & Play installation with an ease to use Menu System

*Coaxial S/PDIF and optical S/PDIF Digital audio output

*576i, 576P, 720P, 1080i, 1080P Video Resolution supported

*Support 4:3 and 16:9 Aspect Ratio

*DVB or EBU subtitle selected by the system based on availability on the network

*USB 2.0 interface PVR& media playback

*Record digital television FTA program to a USB Flash Drive

*Software upgrade via USB2.0

*High sensitivity, low Eb/No

Specification Detail

English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech
Input Frequency	950~2150MHz
Loop Out Frequency	950~2150MHz
Input Level	-65~ -25dBm
Input Impedance	75Ω
LNB Power	Auto/14v/18v/OFF
Video Decoder
Video Compression	MPEG-2& MPEG-1 compatible, H.246
Video Formats	4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio Decoder
Audio Compression	MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode	Dual (main/sub), Stereo
Frequency	32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz 24 kHz
Digital Output
Output Level	0,5 Vss on 75 Ohm
Sampled Data Filtering	32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Video Parameter
Input Level	FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

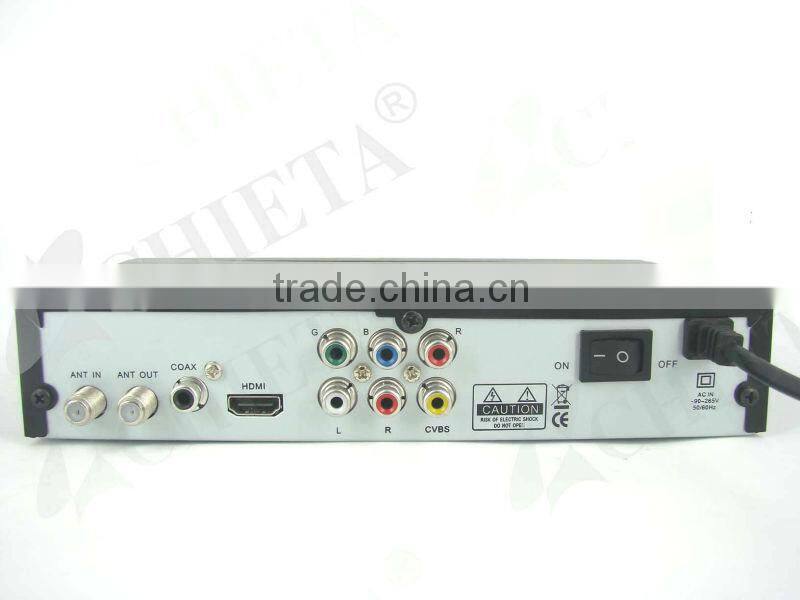

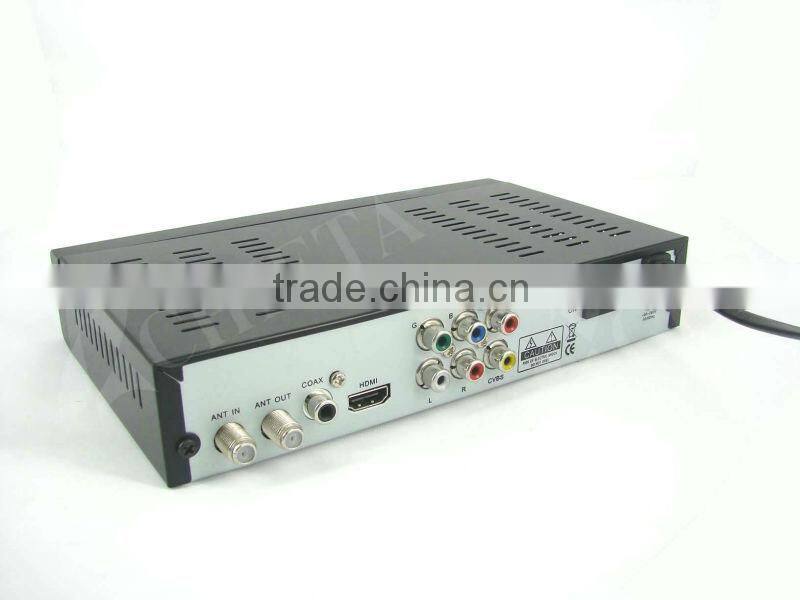

Console Interface
LNB In		IEC169-24.F-Type.Female
LNB Out		IEC169-24.F-Type.Female
Video Output		1×CVBS/1×YpYbYr/1×HD port(optional)
Audio Output		1×RCA
USB		1×USB2.0 Host Type-A

LNB Power and Polarisation Per Tuner
LNB Voltage Vertical		< 14V no load, > 11,5V at 400mA
LNB Voltage Horizontal		< 20V no load, > 17.3V at 400mA
Count of Active Satellite Position
DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

OSD Menu View

Packaging & Shipping

Unit Packing Size	PCS/ Carton
23021045mm	20pcs
Carton CBM (0.06m3)	QTY per Container
53.045.525.5 cm	20GP: 9180pcs
Box Type	40GP: 16390pcs
Color/ Neutral	40HQ: 21310pcs
Unit Weight:	Carton Weight:
800g	15.5kg
