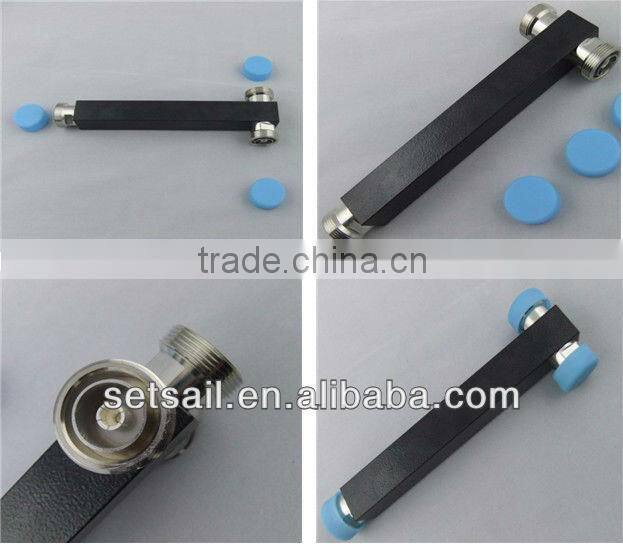

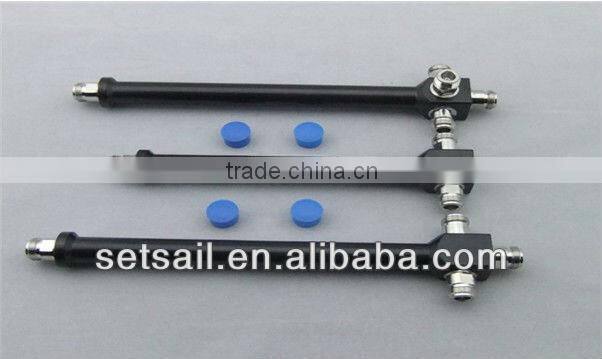

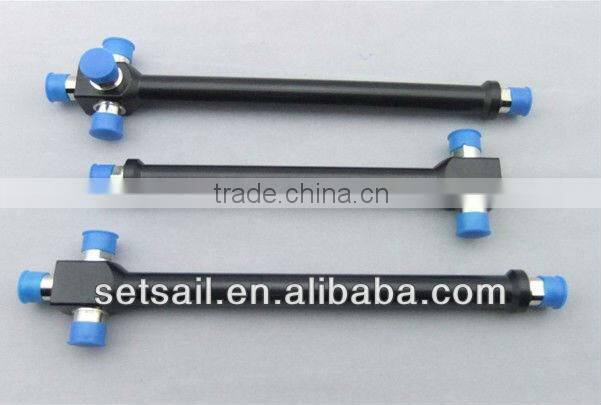

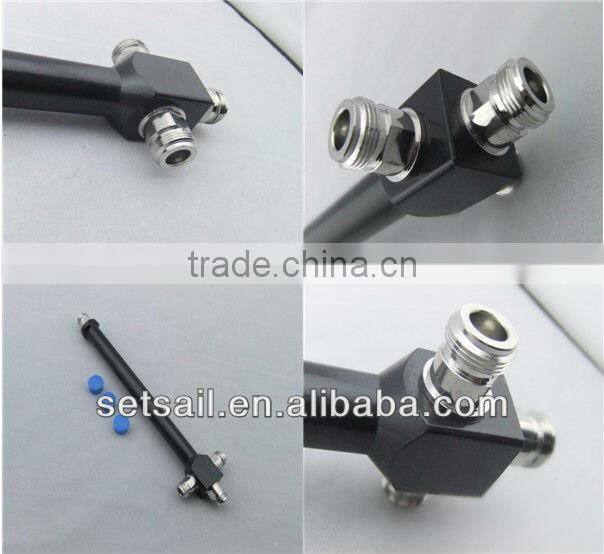

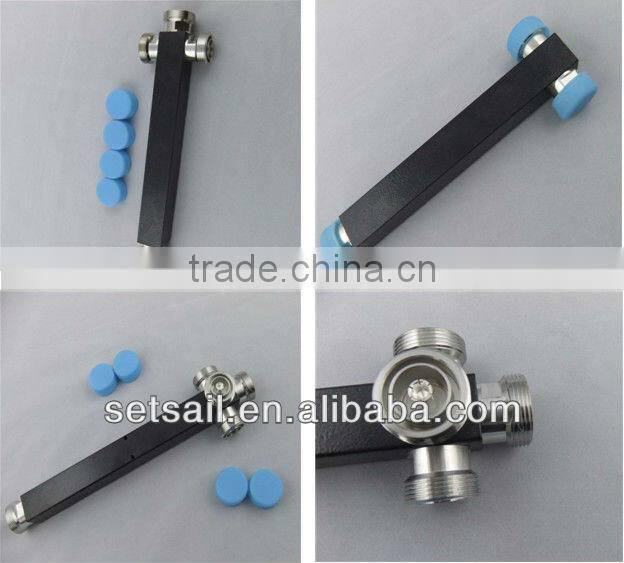

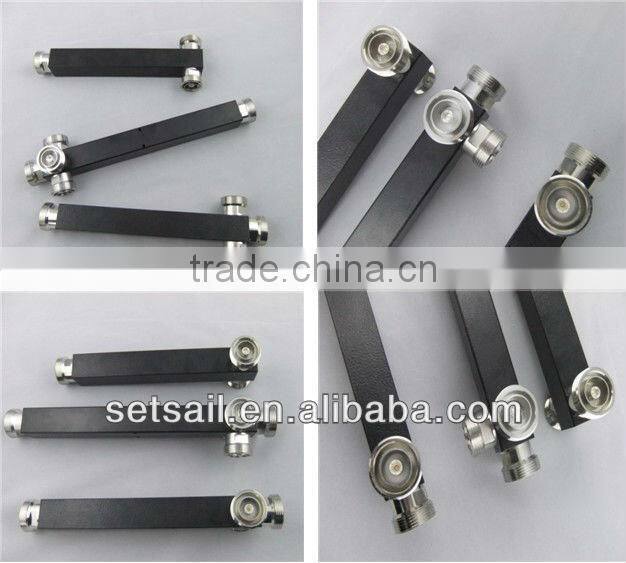

Help Center698-2700MHz, 3-way Cavity RF Power Splitter/Divider(200W, IBS Used)
Related Products
-
698-2700MHz, 4-way Cavity RF Power Splitter/Divider(200W, IBS Used)NegotiableMOQ: 10 Pieces -
698-2700MHz, 2/3/4-way Cavity RF Power Splitter/Divider(200W, IBS Used)NegotiableMOQ: 5 Pieces
-
800-2500MHz, RF 2-way Power Divider/Splitter (IBS Used)NegotiableMOQ: 5 Pieces
-
800-2500MHz, RF 3-way Power Divider/Splitter (IBS Used)NegotiableMOQ: 10 Pieces
-
800-2500MHz, RF 4-way Cavity Power Divider/Splitter (IBS Used)NegotiableMOQ: 1 Piece
Specifications
1. We are Manufacturer of RF Power Splitter2. OEM Service is available
3. 100pcs in stock
4. Power Splitter with Best Price
Applications:
Power Splitter: 698-2700MHz, N-female, 200W, 3-way, Cavity-type, Low PIM3
Used in IBS and BTS projects
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems
698-2700MHz Cavity Power Splitters (N-female Connector, 200W, PIM3=-140dBc)
Technical Specification:
Model | YF-CPS-0727-02-NF | YF-CPS-0727-03-NF | YF-CPS-0727-04-NF | ||
Frequency(MHz) | 698-2700 | ||||
Insertion loss(dB) | 3.3 | 5.4 | 6.5 | ||
| Color | Black-plated | ||||
VSWR | 1.25:1 | ||||
Power Capacity (W) | 200 | ||||
3rd order PIM | -140dBc@2×43dBm | ||||
Impedance(ohm) | 50 | ||||
Temperature(deg) | -35 deg to +60 deg | ||||
RF connector | DIN-female | ||||
Relative Humidity | 5%-95% | ||||
Size(mm) | 2210.1×60.4×20 | 223.4×60.4×18 | 223.4×60.4×18 | ||
Wight(kg) | 0.17 | 0.21 | 0.235 | ||
Send Inquiry to This Supplier
