Home > Products > RF Attenuator > RF High Power Coaxial Attenuator 20dB 50W

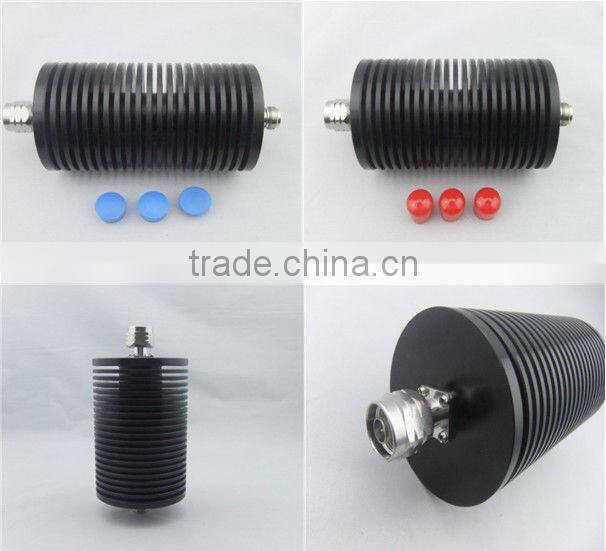

RF High Power Coaxial Attenuator 20dB 50W
- 300 Piece / Pieces per Month
- Shanghai/Shenzhen/Ningbo
- T/T Credit Card
Product Details
| Place of Origin: | Anhui, China | Brand Name: | SETSAIL | Model Number: | YF-ATT-3G-(3-60)-50W-NSF |
Packaging Details
1. Standard Export Cartons
2. Carton Dimensions: 450mm*350mm*340mm
3. Quantity in each Carton: 5pcs
Product Description
Specifications
1. We are Manufacturer2. OEM Service is available
3. 200pcs in stock
4. Best Price and Service
5. Warranty Time:3 Years
Applications: 50W Fixed Coaxial RF Attenuator (DC-3G, N-connector)
1. 50W RF Attenuator is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. In 2008, Setsail has successfully exported more than 10,000 pcs to one of Brazil customers, which is used in ZTE's IBS and BTS projects in Brazil. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of the Coaxial Fixed 50W RF Attenuator is around 50,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2. Fixed 50W RF Attenuator is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.

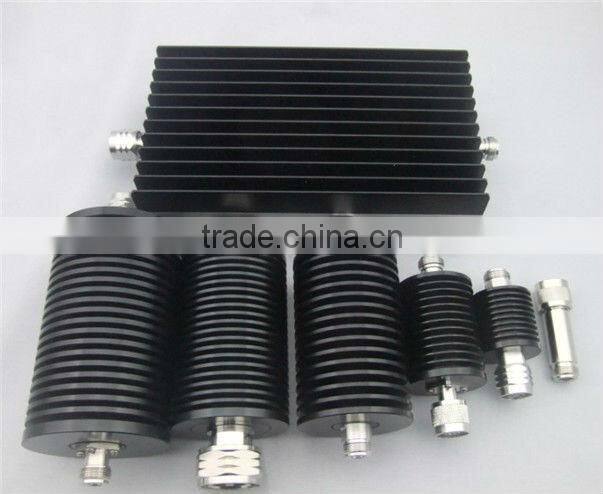

3. Coaxial Fixed 50W RF Attenuator is just one of SETSAIL's RF Attenuators Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Attenuator. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Technical Specifications:
Main Specifications | |||||||
Part Number | YF-ATT-3G-(3-40)-50W-NSF | ||||||
Operating Frequency( GHz ) | DC-3.0 | ||||||
Impendence( Ohm ) | 50 | ||||||
VSWR | ≤1.20:1 | ||||||
Application | Indoor or Outdoor | ||||||
Average Power ( W ) | 50 | ||||||
Attenuation( dB ) | 3-6 | 10 | 20 | 30 | 40 | 50 | |
Tolerance( dB ) | ±0.5 | ±0.8 | ±1.0 | ±1.2 | ±2.0 | ±2.5 | |
Interface | N (M) - N (F) | ||||||
Operating Temperature( °C ) | -40 ~ + 80 | ||||||
Dimensions( mm ) | See Below Outline Drawing | ||||||
Connector Material | Brass | ||||||
100 Watts RF Attenuator
Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional
Manufacturer of RF Passive Components:Power Spliter, Directional
Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna.
1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies.
2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable
Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available.
3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world.
4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.)
5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
