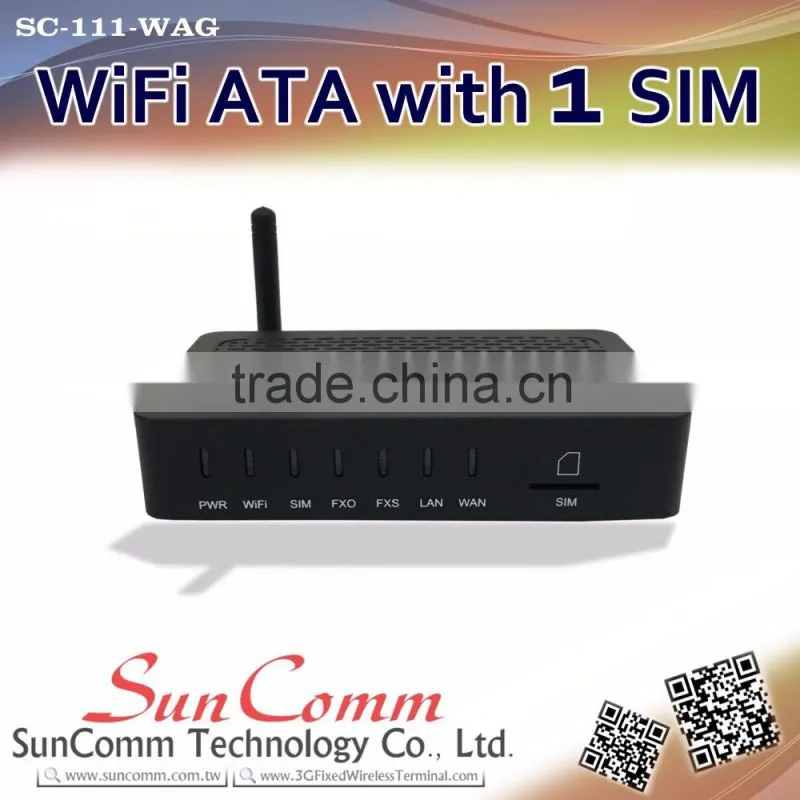

SC-111-WAG including 1 GSM 1 FXS 1 FXO multi-functional WiFi ATA

SC-111-WAG with 1SIM, 1FXS+1FXO, Wifi is multi-functional gateway, integrated both voice and data service. It provides 3 voice interfaces (including GSM, FXS & FXO), offering seamless connectivity to VoIP Network, PLMN and PSTN.

Based on SIP, it not only can interact with VoIP network, but also supports GSM quad band frequency for worldwide requirement. It supports WiFi IEEE 802.11n 2.4GHz with high-speed data-handling capacity, allowing users to enjoy high-speed internet surfingthrough WiFi or the LAN port.

With VPN transparent transfer function, it is ideally suitable for personal use as well as SOHO or SME enterprises, providing high-speed internet access, good voice service and messaging service.

 Features:

• FXS/FXO/GSM interface on a single device/gateway
• Send/receive calls from PSTN/PLMN via FXO/GSM
• High speed NAT forwarding, support WIFI hotspot Built-in
• SIP server, support up to 8SIP A/C User-friendly web interface, multiple management ways
• Flexible dial plan, via time, numbers, source IP etc.IVR customization

Physical Interfaces:

• FXS Port: 1
• FXO Port: 1
• SIM Slot:  1
• Ethernet:1WAN&1LAN 10/100 Base-T RJ-45
• WIFI:IEEE 802.11n2.4GHz

Voice Capabilities:

• VoIP Protocols: SIP over UDP/TCP/TLS,SDP,RTP/SRTP
• Codecs: G.711a/μ law,G.723.1,G.729A/B, iLBC,G.726
• Silence Suppression
• Comfort Noise Generator(CNG)
• Voice Activity Detection(VAD)
• Echo Cancellation: G.168 with up to 128ms
• Dynamic Jitter Buffer
• Adjustable Gain Control
• Automatic Gain Control (AGC)
• Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone
• FAX: T.38 and Pass-through
• NAT: STUN/UPnP
• DTMF: RFC2833/Signal/Inband

FXS:

• Connector: RJ-11
• Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
• Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone
• Polarity Reversal
• Hook Flash

FXO:

• Connector: RJ-11
• Caller ID: FSK, DTMF
• Polarity Reversal
• Answer Delay
• Busy Tone Detection; No Current Detection

Mobile:

• GSM: 850/900/1800/1900MHz
• SIM/UIM: 1 SIM/UIM per Channel
• SIM Card: 1.8V, 3.0V
• Antenna: 3.0dB, SMA Interface
• SMS/USSD;
• Bulk SMS
• SMS Code/Decode: ASCII, Unicode
• IMEI/PIN Code Management

Supplementary Services:

• Call Forward (Unconditional/No Answer/Busy)
• Call Waiting
• Call Hold
• Call Transfer
• Hotline
• Do-not-disturb
• 3 Way Conference

Maintenance:

• Web GUI Configuration
• Telnet Management
• Configuration Restore/Backup
• Multiple Languages Supported
• HTTP/TFTP/FTP Firmware Upgrade
• Auto Provision
• CDR Report and Export
• Syslog
• Ping and Tracert
• Traffic Statistics: TCP,UDP,RTP
• Network Capture
• NTP

Software Features:

• Ring Group
• Routing Groups
• Caller/Called Number Manipulation
• Routing Base on Time Period
• Routing Base on Caller/Called Prefixes
• Routing Base on Source Trunks
• Dial Rules
• Failover Routing
• FXO Impedance Auto Match
• IVR Customization
• Auto Attendant Function
• CDRs
•

We also have CE Certifications/ FCC ID for

SC-9039-3G, SCG-4QE/ SCG-8QE, SC-368W, SC-396-GP3G/ SC-393-GP3G

SC-9079-3G, SC-9068-GH3G
