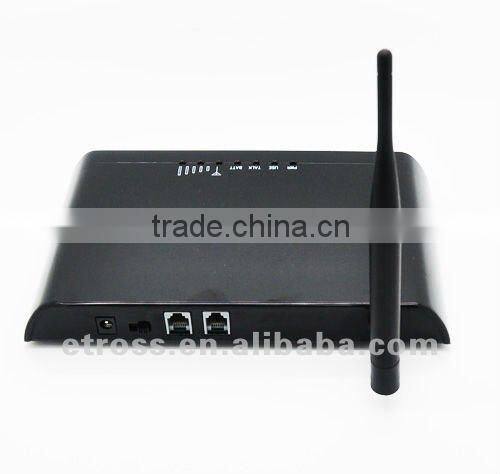

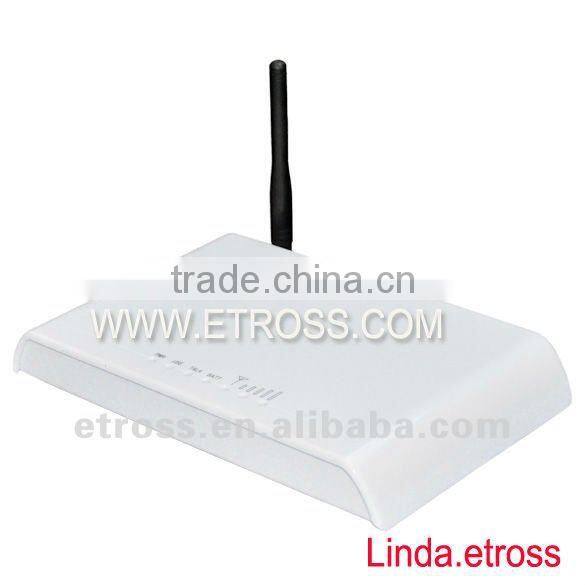

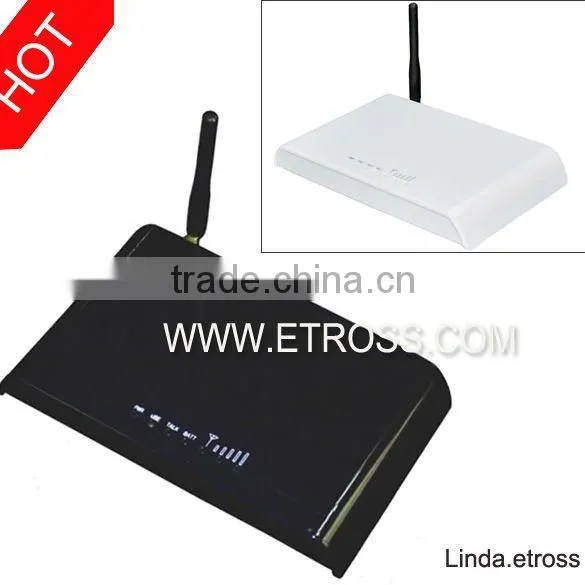

GSM G3 fax termininal gateway can connect the phone and fax support DTMF/polarity reversal (Siemens TC35I Module Made)

Specifications

GSM G3 Wireless fax
1.Support G3 Fax
2.RJ-11 Fax interface
3.Proper reversal polarity
4.Clear voice/IMEI Chan

Brand:Etross or OEM

Model No.:Etross-GSM G3 fax

Frequency:GSM900/1800MHZ,or 850/900/1800/1900mhz

Product name:GSM FWT fixed wireless terminal with G3 fax terminal/Wireless fax/Voice fax with 2

rj-11 ports

Main function & Features

-GSM G3 fax terminal supports voice and fax function

-Employ Siemens TC35i module to make

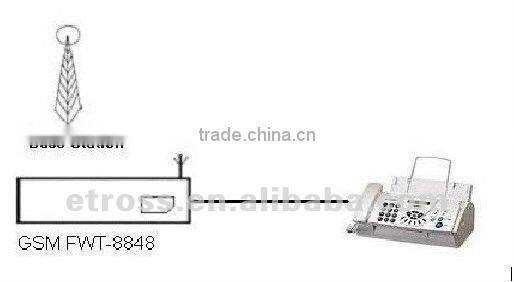

-Can send and receive fax by connecting to an analogue fax machine

-Connect to Alarm systems to realize wireless alarm(for security use)

-Strong signals with high gain antenna

-Attractive plastic casing

-SIM card supported(1.8V ,3V

-DTMF CLIP (Caller ID display)

-Provides reversal polarity signal for billing

-No noise and clear voice

-Suitable for wide voltage range and low power consumption

-suitable for all kinds of weather and environment

-RJ-11 ports (1 for connecting ordinary telephone set,another for connecting fax device)

-Locking PIN / Locking Phone



Specifications

Air interface:GSM 900/1800Mhz or Quadband(850/900/1800/1900Mhz)

-External in interface:

 The power supply interface: POWER / DC12V

 Outside phone interface:RJ-11(PHONE)

 Outside fax interface:RJ-11 (FAX)

 The antenna interface: SMA (Male)

 1.8V,3V SIM interface

 The data Service interface: SERIAL PORT

-Power adaptor

 Input voltage: AC90-260V / 50Hz

 Output voltage: DC12V

 Output current: 1.2A

-Backup battery

 Ni-MH battery

 7.2V / 1.2A

-Antenna

 Frequency Band:

 890-960 MHz / 1710-1880 Mhz

 Gain: 2.5dBi

 Wave ratio: ≤1.5

 Input resistance: 50ohm

 Polarize method: perpendicularity polarizes

-Size: (L x W x H): 185 x 135 x 22mm (not include the antenna)

-Weight:0.8kg(include the antenna,battery,power adaptor)
