Heat transfer fluid(HTF) roller, belonging to the textile dyeing and finishing machinery technology. Including roller itself, roll in left burning body left axis fixed cover, which constitute the central support shaft head left and right ends of the fixed RHS cover, which constitutes the central axis of the head right support; heating mechanism in the chamber vivo; inner sleeve, disposed within the cavity, the heating means includes a left and right closure panel, electric heating and electric heating pipe jacket tube, electrically heated tube has a set number, the left end of the electric heating tube and left head-cap fixing shaft , the right end of the shaft with the head cover is fixed right, on the left and / or right closure disk medium introducing holes provided in corresponding to the position of the medium introduction hole disposed medium introducing hole closures.

WHOLE VIEW

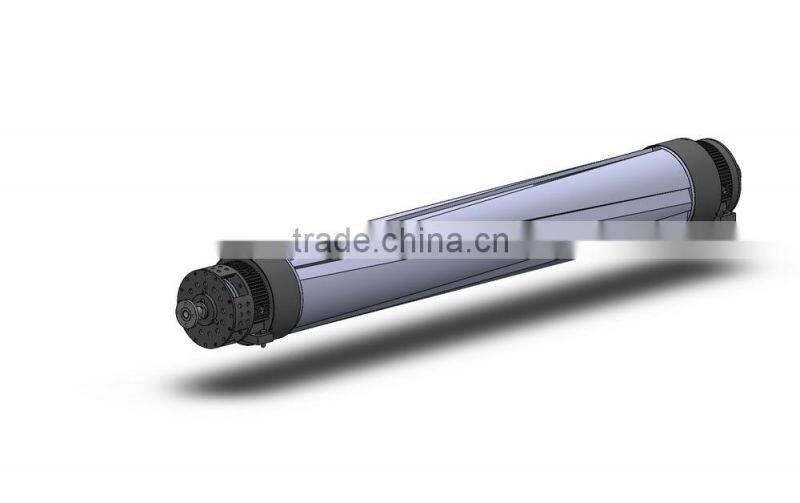

DRAWING

features

The inner sleeve cavity of the inner sleeve equipped with thermal filler, the filler opening is centrally located in the closure panel of the right inlet, the filler is introduced into the sleeve and the inner sleeve muzzle and disposed corresponding to the filler inlet cover. Protection of the fabric hot light quality; fast heating and energy.

Newly roller heating principle

1, 90% of coal combustion heat - heating oil - HTF transport --95% - 99% HTF distributor - heat - the outer drum efficiency: 85%

2, due to the level of management of the factory, oil furnace performance indicators, insulation, and other factors, we assume that the thermal efficiency of coal-fired as follows: 70%

ADVANTAGE:

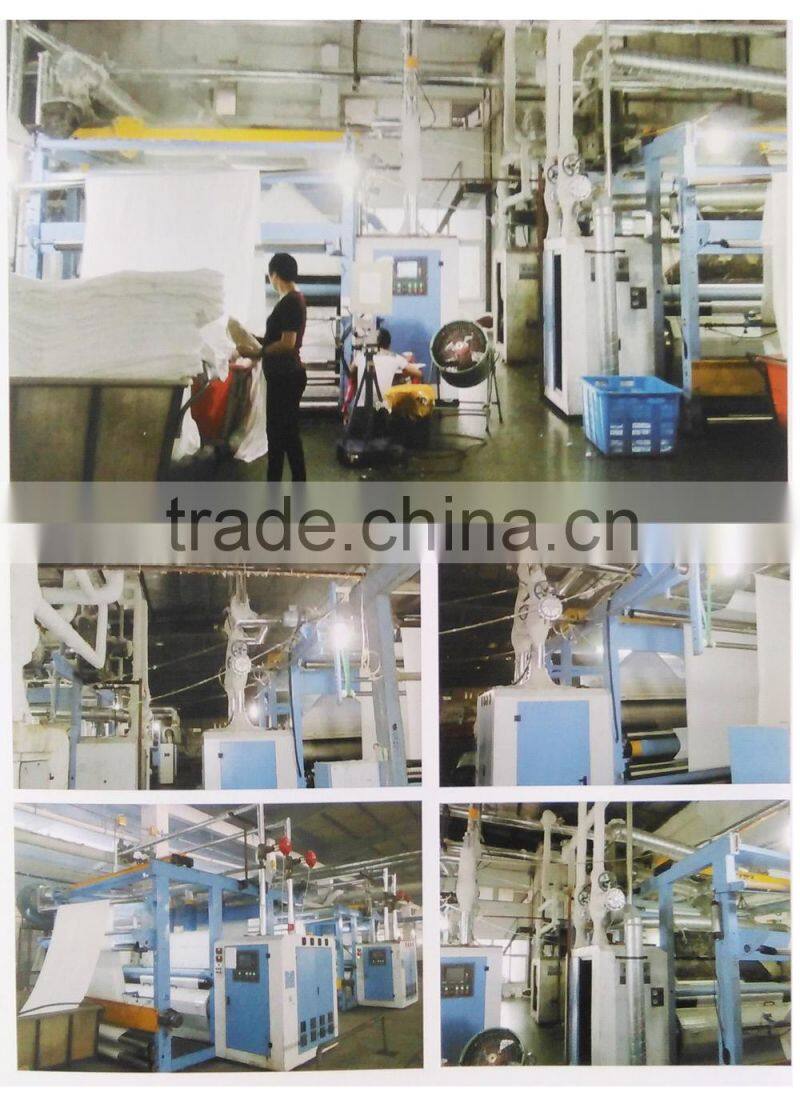

CASE:
