Single Nozzle Water Jet Textile machine and water jet loom
- 500 Set / Sets per Month
- Qingdao
- T/T D/P D/A Credit Card
- Single Nozzle Water Jet Textile machine and water jet loom
- water jet loom /textile weaving machine from Qingdao with low price for sale
- water jet loom /textile weaving machine from Qingdao with low price for sale
- water jet loom /textile weaving machine from Qingdao with low price for sale
- water jet loom /textile weaving machine from Qingdao with low price for sale
- water jet loom /textile weaving machine from Qingdao with low price
Product Details
Condition: | New | Type: | Water Jet Loom | Application: | Weaving,Nylon, chemical fibber |
Production Capacity: | 500 | Place of Origin: | Shandong, China | Brand Name: | BAIJIA |
Model Number: | 408-3 | Dimension(L*W*H): | 2.0*1.5*1.0 | Weight: | 2T |
Power(W): | 1.5~4.5KW | Certification: | ISO9000 CE | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Water jet loom is a new-generation textile machine for weaving of synthetic fiber fabrics like nylon fiament,polyester thread etc.It is also an ideal facility for making taffeta,nylon shoes,umbrella cloth ,cash and bag cloth,oxford and high-class outside material cloth.
water jet loom | ||
Item | Specification | |
shedding system | plain shedding | Crank harness standard 4 heald frame (additive to 6 pieces) |
cam shedding | 10 piece the most | |
dobby shedding | 16 piece the most | |
loom width specifications | 150/170/190/210/230/240/260/280/320/360(Can be customized) | |
Effective work width | Maximum is standard width (Adjustable range from standard width reduction 50-80 cm) | |
drive | start | Super starting motor moment drive |
moter power | 2.2/2.8/3.0/3.75/4.5/5.5kw | |
brake | Electromagnetic clutch brake | |
beating system | beating system | Crank shaft drive beating-up many reed feet |
Beating-up dynamic range | 66mm 76mm 86mm 96mm | |
into weft | into weft way | single nozzle:single pump single nozzle |
double nozzle:single pump double nozzle (double pump double nozzle can choice) | ||
pump | Spring pressure piston pump | |
nozzle | Clearance adjustable ring nozzle (stainless steel or ceramic needle can choose) | |
measuring & storing device | Mechanical transmission drum length measuring (weft into automatic cycle) | |
double nozzle:electronic feeder (can choose domestic and international famous brands) | ||
weft feeler | Mechanical ground weft photoelectric induction ground weft | |
let-off system | let-off way | Automatic mechanical negative type continuous let off device (with standard) |
The let-off plate size | 800 mm standard | |
take up system | take up type | electronic take up type (standard) |
Maximum cloth diameter | 600 mm (cam, dobby open) 520 mm (crank open) | |
cutting system | Mechanical scissors device | |
Lubrication system | Main drive for oil bath way, centralized automatic refueling | |
weft density | Short fiber 5.83-233.24 filament: 2.2-135 | |
selvage form | Planetary gear wring side mode |
Our group has passed ISO9001 and CE.
Conventional packing or the request of the guests on the packaging
We have engineers available to service machinery overseas
We is a textile machinery manufacturing professional manufacturers, especially in the field of water-jet loom's design, manufacturing, technology in the domestic leading level.We are the factory with twenty years experience in manufacturing the water jet loom .
We products sell well in Russia, Turkey, Egypt, India, Pakistan, Indonesia, Vietnam, Thailand and other countries and regions, and has set up mature, after-sales service team.
Welcome to make an inquiry!

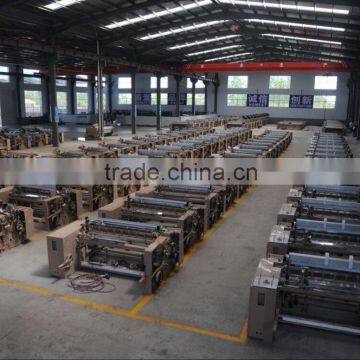

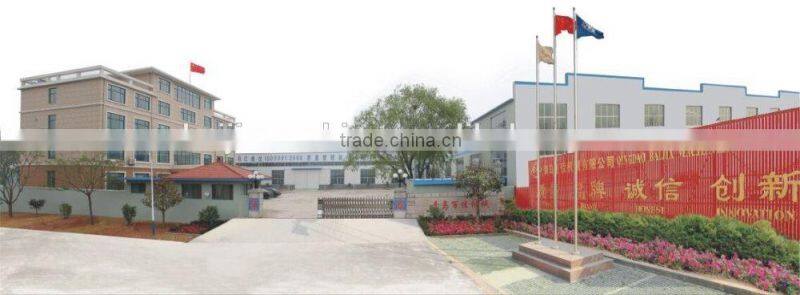

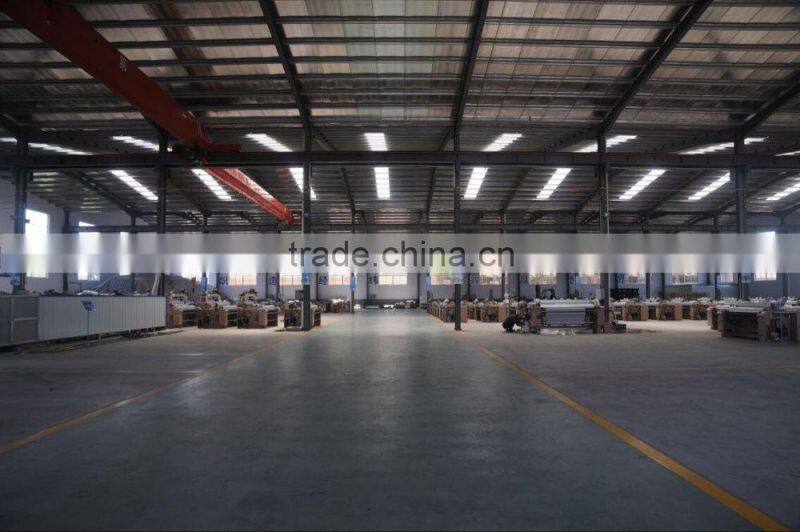

Welcome to visit our factory
