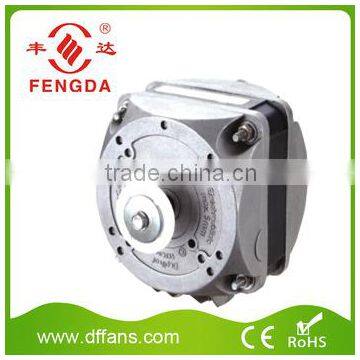

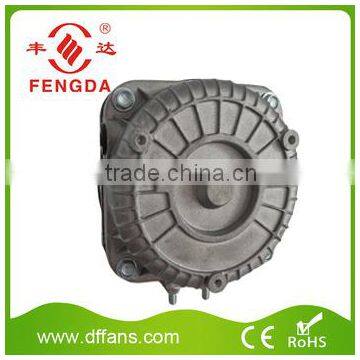

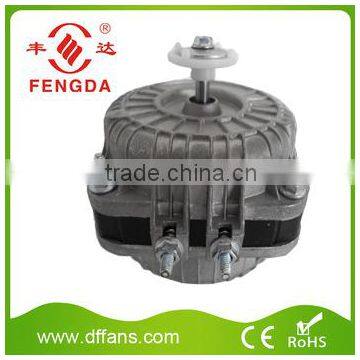

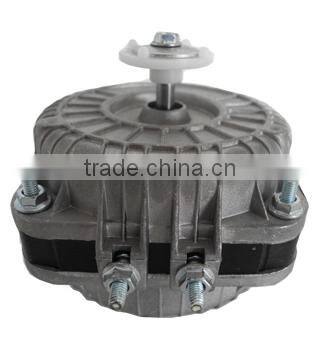

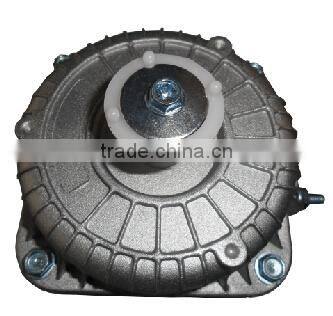

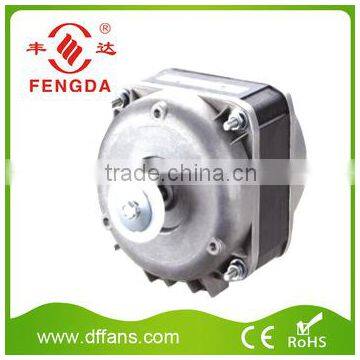

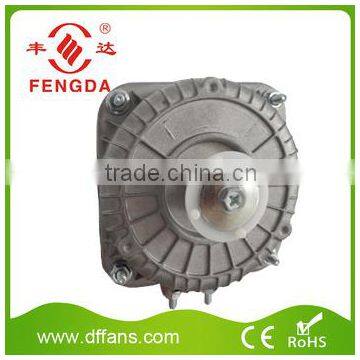

220v/60hz refrigerator shaded pole motor
1.PRODUCT OVERVIEW
(1) YZ series motors are shaded pole motors with single-phrase and four-poles, and running at the rated voltage/frequency of 220-240V, 50/60HZ or 110-120V, 60HZ.

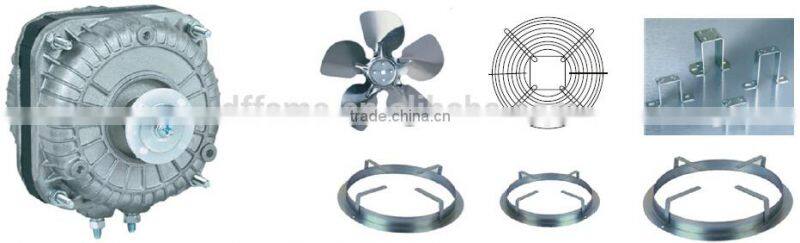

(2) Shade pole motor are widely applied to radiators, evaporators,condensing unit,ice machine and other refridgration equipments.
(3) Their output power is from 5W to 34W, which can be adjusted according to the stack length.
(4) Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protectors whose cut-off temperature is 135oC±5oC.

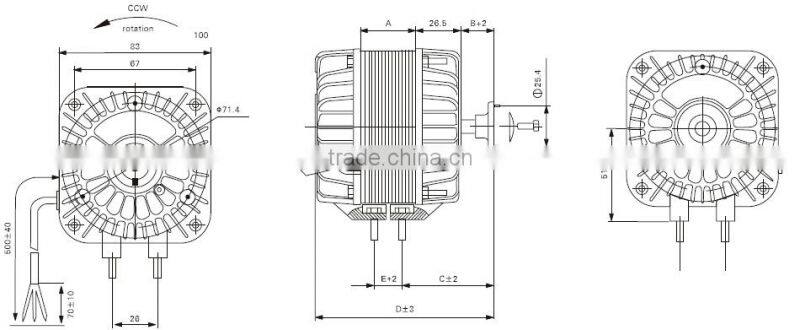

2. shape and the size of installation
3. performance parameters
Model |
Voltage V |
Frequency Hz |
Input Power W |
Output Power W |
Current A |
Speed RPM |
Fan Blade mm | A mm | B mm | C mm | D mm | E mm |
YZF5 | 220/240 | 50/60 | 30 | 5 | 0.20 | 1300/1350 | 200 | 13 | 13 | 44 | 79 | / |
110/115 | 50/60 | 30 | 5 | 0.40 | 1300/1350 | 200 | 13 | 13 | 44 | 79 | / | |
YZF7 | 220/240 | 50/60 | 38 | 7 | 0.27 | 1300/1350 | 230 | 19 | 13 | 44 | 85 | / |
110/115 | 50/60 | 38 | 7 | 0.54 | 1300/1350 | 230 | 19 | 13 | 44 | 85 | / | |
YZF10 | 220/240 | 50/60 | 42 | 10 | 0.30 | 1300/1350 | 230 | 19 | 13 | 44 | 85 | / |
110/115 | 50/60 | 42 | 10 | 0.60 | 1300/1350 | 230 | 19 | 13 | 44 | 85 | / | |
YZF16 | 220/240 | 50/60 | 58 | 16 | 0.40 | 1300/1350 | 250 | 25 | 14 | 45 | 92 | / |
110/115 | 50/60 | 58 | 16 | 0.80 | 1300/1350 | 250 | 25 | 14 | 45 | 92 | / | |
YZF18 | 220/240 | 50/60 | 64 | 18 | 0.43 | 1300/1350 | 250 | 30 | 17 | 48 | 100 | 21 |
110/115 | 50/60 | 64 | 18 | 0.86 | 1300/1350 | 250 | 30 | 17 | 48 | 100 | 21 | |
YZF20 | 220/240 | 50/60 | 65 | 20 | 0.47 | 1300/1350 | 250 | 30 | 17 | 48 | 100 | 21 |
110/115 | 50/60 | 65 | 20 | 0.94 | 1300/1350 | 250 | 30 | 17 | 48 | 100 | 21 | |
YZF25 | 220/240 | 50/60 | 100 | 25 | 0.70 | 1300/1350 | 300 | 40 | 18 | 49 | 111 | 31 |
110/115 | 50/60 | 100 | 25 | 0.40 | 1300/1350 | 300 | 40 | 18 | 49 | 111 | 31 | |
YZF34 | 220/240 | 50/60 | 120 | 34 | 0.90 | 1300/1350 | 300 | 45 | 22 | 53 | 120 | 36 |
110/115 | 50/60 | 120 | 34 | 1.8 | 1300/1350 | 300 | 45 | 22 | 53 | 120 | 36 |
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.
We professionally manufacture various fans and motors,which widely used in ventilation,air condition,cooling
and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,being
the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates and ISO9001
Quality Management System Certification.And our products are exporting to Europe and America,Middle East,Russia etc.

1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.

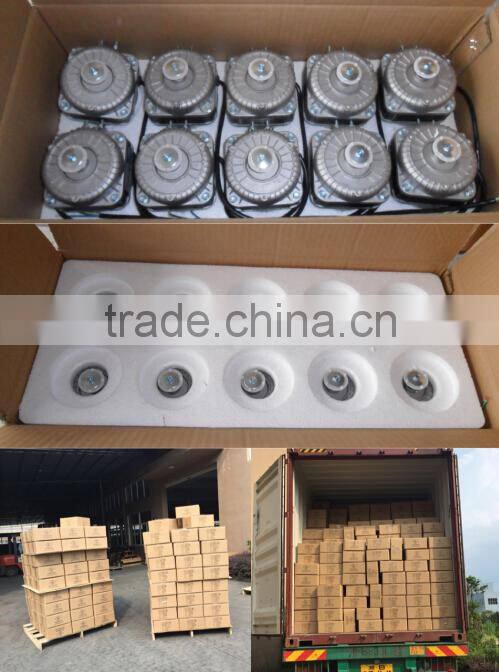

one piece in single carton
