High speed 2/4/6 color flexo printing machine

Specifications

High speed 2/4/6 color flexo printing machine
flexo printing machine/flexo printing machines/flexo printing machinery

Name:High speed 2/4/6 color flexo printing machine



Application:

Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.



Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9. Magnetic powder brake for unwinding tension control. magnetic powder clutch for rewinding tension control.



Technical Data:

Type	YT-4600	YT-4800	YT-41000
Max. Effective Printing Width	560mm	760mm	960mm
Max. Web Width	600mm	800mm	1000mm
Max. Printing Speed	50m/min	50m/min	50m/min
Max. Mechanical Speed	60 m/min	60 m/min	60 m/min
Max. Diameter of Roll Material	450mm	450mm	450mm
Internal Diameter of Roll Core	76mm	76mm	76mm
Rang of Repeat Printing Length	191-914mm	191-914mm	191-914mm
Accuracy of Registration	±0.5mm	±0.5mm	±0.5mm
Plate Thickness(Both side adhesive included)	2.38mm	2.38mm	2.38mm
Heating Power	7Kw	10.5Kw	14Kw
Total Power	11.5Kw	15Kw	18.5Kw
Weight of Machine	3000kg	3800kg	4500kg
Overall Dimension(L*W*H)	4500×1700×2500mm	4500×1900×2500mm	4500×2100×2500mm

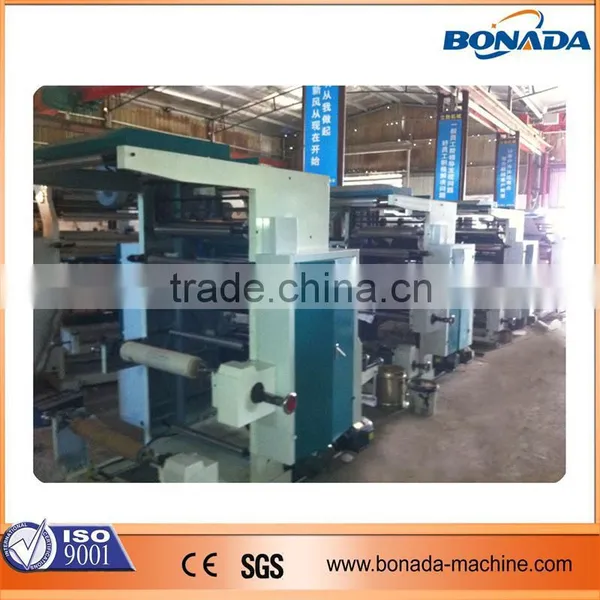

Machine live photo:
