CYMB high-quality shipping containers

Specifications

Quick info of shipping containers:
1. Easy locate and relocate
2.Easy transport
3.Cost-effective

Product Name:    CYMB   shipping containers

1. Company Profile:



Changshu Yahgee Modular Building Co., Ltd., (CYMB) a wholly owned subsidiary company of Yahgee Group, established in 2011. It covers an area of 166,500 square meters including 43,800 square meters steel structure production lines and 32,000 square meters interior decoration production lines.

CYMB specializes in the research, manufacture and sales of flat packed container house, container house, light gauge steel structure building, special container and other modular buildings.







2.  Product Info of CYMB  shipping containers :

• Based on steel structure and light wall panels, composed of top structure, base structure, corner posts and 14 interchangeable wall panels.
• Match ISO dimensions, 4 individual houses packed together for Combined transportation. 75% transportation cost can be saved.
• Can Stack 3 storeys without any external support.

• Recommend standard external dimension: 6058(20’, L) ×2438(8’, W) ×2800(H)mm.

• For some special projects, 3000mm W, 9125mm(30’) or 12192(40’) L will be available.

   Single Installation:







Integral installation:





Every individuar unit can be used individually, or combine them together horizontally or vertically (≤3-storey) to meet the using function in different areas.

1. We can offer you a full finished house which can be finished location by a  crane, A building with 2-storey can be finished in one day.

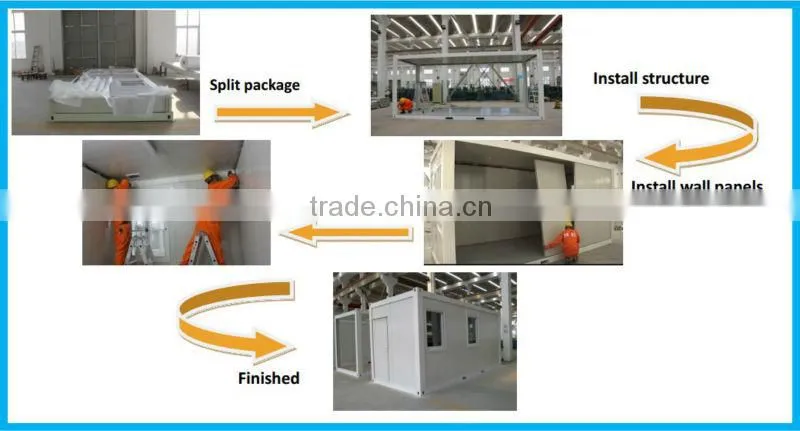

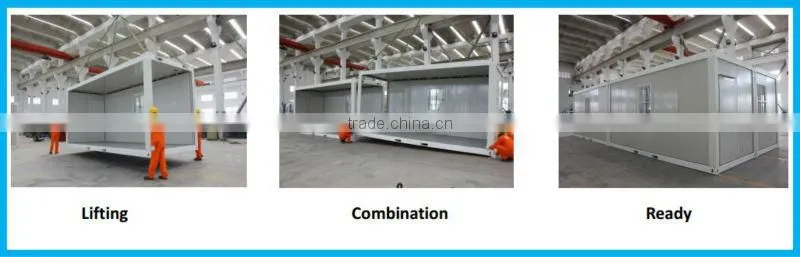

2. In order to save the transport cost we packed 4-6units in a bundle, a installation must be done to evey unit when they reached the local place. However, there is nothing to worry about, we will give you a installation vedio. After all the singel units finished we can do the lifting and combination.

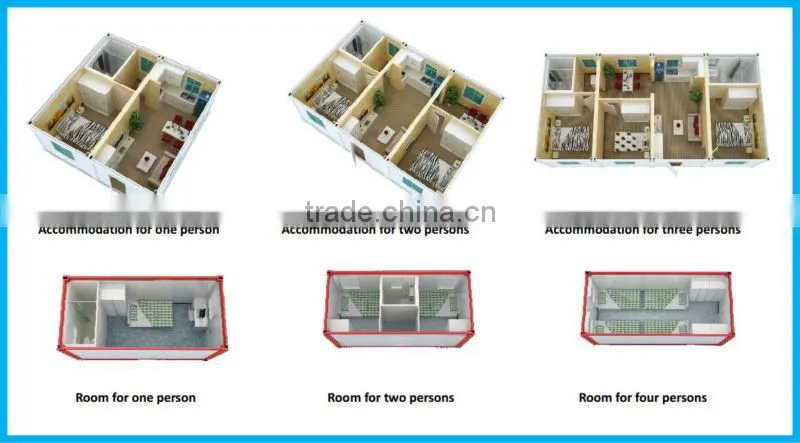

3. Typical Modular Unit --- Accommodation



Accommodation can be completed with toilet or not, the inner decoration, furnitures and electric appliances are according to your requirement.

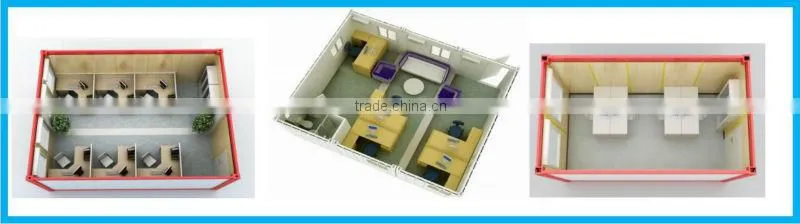

4. Typical Modular Unit --- Office



We have variety options for office:

1. Use it individually

2. Two or more single units joint together to get more working space, also you can set some functional zones, such as meeting room, restroom, entertainment room, reception room.

3. Inner decoration, furnitures and electric appliances are according to your requirement.

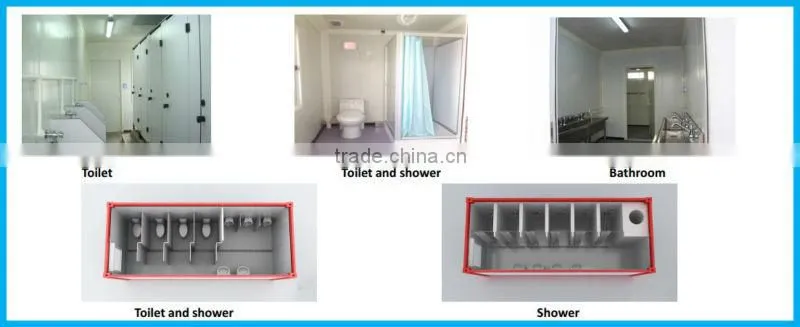

5. Typical Modular Unit --- Toilet/Barthroom



Public washroom, shower room, bathroom, kitchen room, laundry room and so on are available. Specific requirements can be met.





6. Other Infomation for you:

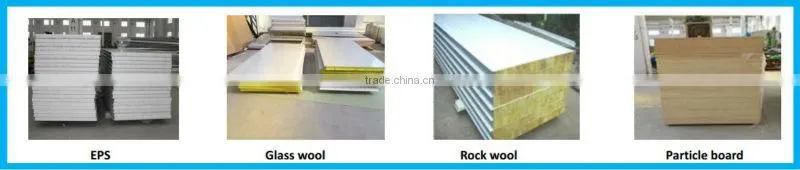

CYMB water proof flat-packed container house is based  on steel structure and light wall pannels. There are some kind of wall pannel can be chosed EPS Steel Sandwich pannel, Pre-painted Steel Glass Wool Pannel, Pre-painted Steel Rock Wool, inner Partical board pannel.

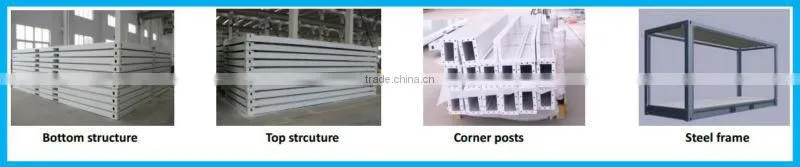

Structure of flat-packed house





  Materials





7. Performance Parameters:



Performance		Particle board interior panel	Pre-painted steel interior panel	Reinforced type
Inner dimension (mm)		5856(L)* 2236(W)* 2505(H)	5876(L)*2256(W)*2505(H)	5856(L) * 2236(W)* 2505(H)
Floor live load (KN/m²)		2.0	1.5	2.0
Roof live load (KN / m²)		1.0	0.75	1.4
Wind resistance (KN / m²)		0.66	0.38	0.94
Thermal resistance	floor	R13	/	R21
	roof	R13	R13	R21
	Wall	R9	R9	R15
Stacking storey		≤3 storey	≤3 storey	≤3 storey
Seismic performance		8 degree	8 degree	8 degree



8. Geographic Location:



Our company located in Changshu, Jiangsu, close to Changshu Port and Shanghai Port.



To Shanghai port: 1 hour's drive.



To Changshu port: 30-minutes drive.



To Taicang port: 45-minutes drive.





 Welcome to visit us!
