paper screen printing machine

Specifications

1.especial in screen printer area more than 17 years.
2.paper screen printing machine
3.with vacuum table
4.CE manufac











semi-auto flatbed silk screen printing machine with vacuum table

Characteristics:

Printing transmission is driven by the electric motor,synchronous belt drive.

Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.

 Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.

 Vacuum adsorption print.

 The working table has a vernier regulation system(can move up and down, left and right ,forward and backward)that makes registration more correctly and simply.

 With security devices to make the head printing stop on the upper part position that is more reliable and safer.

 The electronic control unit(ECU)is central control by the microcomputer, the operation of complete applicance is simpler and more flexible, easy to repair.

The front clip can be adjusted through forward and back.



Application Scope:

The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card.



Accessories:

Toolbox	six-angle-wrench, screwdriver, activity-wrench, manual, protective tube	1pcs/each
scraper and scraping blade rubber strip	600mm	1set
scraper and scraping blade	900mm	1set
Air tube	Φ8	5m
Power outlet		1pcs



The main component configuration:

Altivar------------------------------ Schneider

intermediate relay ------------------ Schneider

AC contactor ----------------------- Schneider

air cylinder -------------------------- Xintaiming

Motor drive belt ---------------------- JP Samsung

electromagnetic valve ----------------- Korea YSC

linear guide rail----------------------- Taiwan HIWIN

Suction pump ------------------------ Shanghai FULI

knob -------------------------------- Shanghai Re-gong Electric



technical parameters:

Model	YKP-6090	YKP-70100	YKP-90120
Workbench Area (mm²)	720×1000	800×1100	1000×1300
Max Print Area (mm²)	600×900	700×1000	900×1200
Max Screen Size(mm)	900×1200	1000×1300	1200×1500
Min Screen Size(mm)	450×550	550×650	650×700
Frame Lift Height (mm)	300	300	300
Operation Air Pressure (Mpa)	0.3-0.5	0.3-0.5	0.3-0.5
Air-Consumption(0.6Mpa)(L/pcs)	13	13	13
Source Power (kw)	2.3	2.3	3.7
Rated Power (V/Hz)	220/50	220/50	380/50
Max Table Height(to floor)	820mm	820mm	820mm
Printing Speed (pcs/h)	500-1200	500-1200	400-1000
Dimension (mm) L×W×H	1500×1200×1250	1600×1350×1280	1800×1400×1300
Weight (kg)	410	480	550
Thickness of printing stock	0-20mm,0-50mm	0-20mm,0-50mm	0-20mm,0-50mm





 4.tIP: We can manufact according customer's require

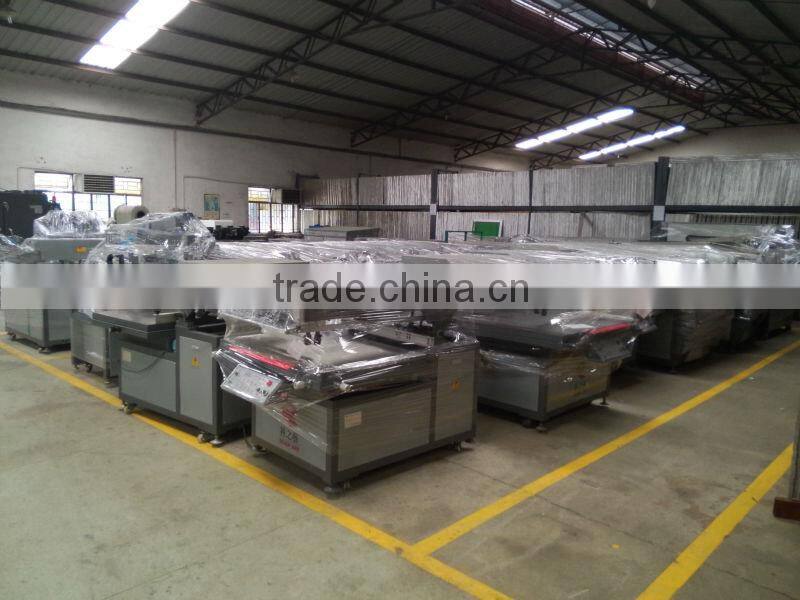

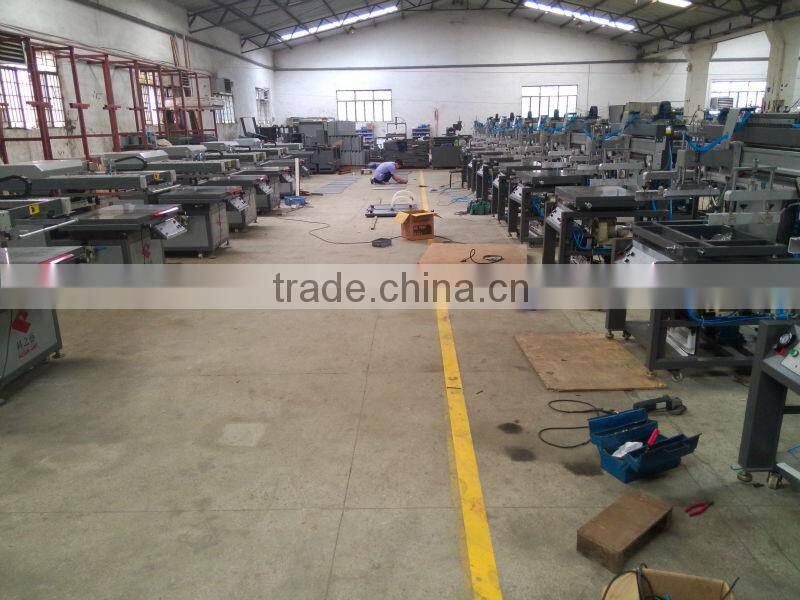

A corner of our factory
