W-TEL optical fiber distribution frame 12F 24F ODF

Specifications

12F 24F ODF DDF optic fiber distribution frame
excellent shielding capability
interchangeablility
ISO9001:2000
Huawei design

Shanghai Warner Telecom offer you ODF DDF system

 ( wiring system for telecom network projects )







24F ODF

12F 24F ODF optic fiber distribution frame

ODF optic fiber distribution frame

excellent shielding capability
interchangeablility
ISO9001:2000
Huawei design



Optical distribution frame ODF-R72 ODF-R72 with Cold-rolled Steel Box 4U and 72C, Special Notebook Style, Convenient for Testing

Key Specifications/Special Features:

• Description:
• ODF-R72 is the Rack-mount Optic Distribution Box, which with cold-rolled stell box 4U and 72C, provides fusion splices for outside plant cable to pigtails connecting the optic fiber terminal equipment and for storing excess, length of patch cords and pigtails in central office
• They also provides front side access to termination points, fusion splice, and convenient for testing, identification and installation
• Features:
• Dimension: 49 x 30.5 x 17.5cm
• Weight: 9kg
• Modular design with splicing and distribution function, obverse operation
• High consistency, easy management, convenient for fiber splicing, connection and adjustment
• The adaptor is clipped at 28 angle, protect the fiber bend radius prevent from the harm of the light, FC, SC, ST, LC adaptors for option.
• Can be fit for the pigtail or ribbon fan-out pigtail, suitable for 19 or 23 standard ODF
• 12 cores distribution and splicing unit is with the function of storage for maximum 2 meter pigtail
• The mark in the front panel for the easy identification, easy operation





DDF system

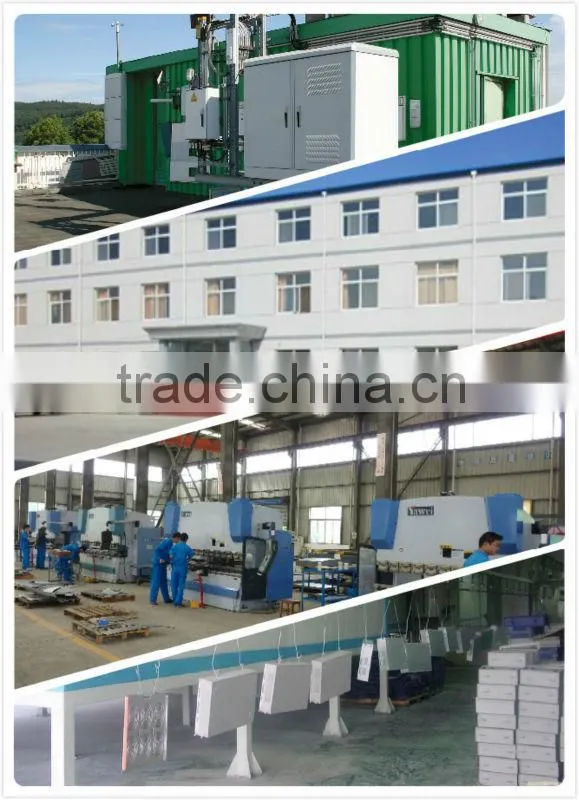

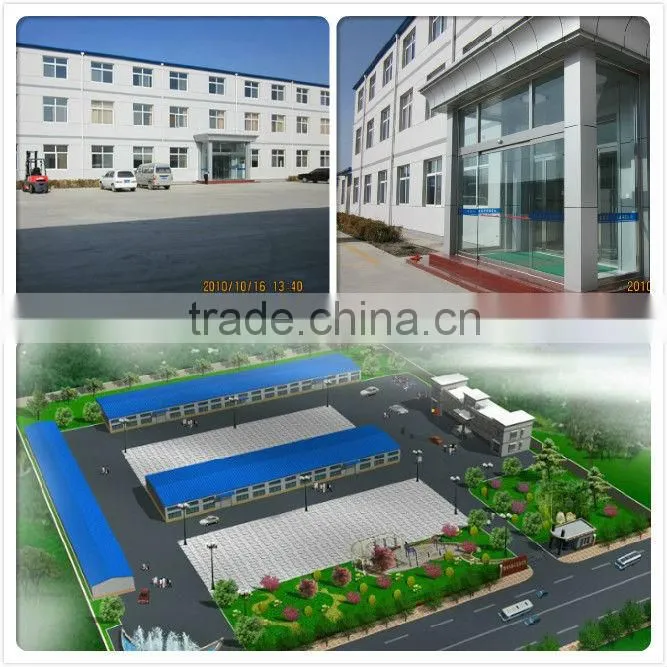

DISPLAY OF WARNER TELECOM
