three output switching power supply 48v +15v -15v with 5 pin xlr dc connector
- 80000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
dual output switching power supply12v 5v dual power supply
-
dual power supply 12v 2a 5v 2a power adapter dual smps power supply
-
12v 2a 5v 2a dual output switching power supply 5v 12v
-
dual output power adapter 12v 2a 5v 2a dual power supply
-
factory price dual output switching power supply 5v 12v
-
dual output 12v 5v 2a power adapter dual power supply 12v
Product Details
| Place of Origin | Guangdong, China | Brand Name | Highrun | |
| Model Number | 48v +/-15v triple output | Output Power | Other, 87W | |
| Output Type | Triple | Input Voltage | Other, 100-240Vac 50-60Hz | |
| Output Voltage | 48V +15v -15v | Output Frequency | 50/60Hz | |
| Output Current | 2.5a / 250ma |
Product Description

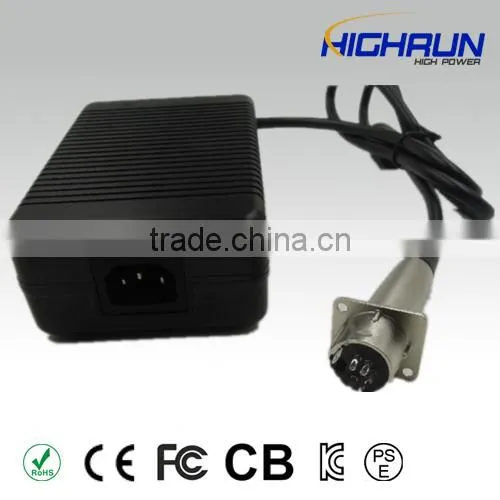

three output switching power supply 48v +15v -15v with 5 pin xlr dc connector
MODEL | PC-150025 | |||
OUTPUT | DC VOLTAGE | +15V | -15V | +48V |
| RATED CURRENT | 2.5A | 2.5A | 0.25A |
| CURRENT RANGE | 0~2.5A | 0~2.5A | 0~0.25A |
| RATED POWER | 87W | ||
INPUT | VOLTAGE RANGE | 90~264Vac(Normal Rated Input Voltage: 100~240Vac) | ||
| FREQUENCY RANGE | 50~60Hz | ||
| EFFICIENCY(Typ.) | >85% | ||
| Protection type | OVER LOAD/ OVER VOLEAGE/ OVER TEMPERATURE/OVER CURRENT / SHORT-CURRENT | ||
OTHERS | DIMENSION | 145*90*46mm(W*H*D) | ||
| PACKING | White box with PE bag | ||
three output switching power supply 48v +15v -15v with 5 pin xlr dc connector
new design multi output switching power supply 48v +15v -15v with 5 pin xlr dc connector
Shenzhen Easthighrun Electric Co., Ltd having more than 10 years experience for power supply.
We have own factory and R&D Dept , specialized in producing wall mount power supply, switch power supply ,led power supply ,3D printer power supply and power supply for other electric equipment,
with a product line of 5V 12V 24V 36V 48V and other voltages from 5W to 600W .We have big advantages in high power supply .
Also ,we have favorable price for Aluminum case power supply , water-proof and non water-proof .
More information about our company please browse our website:
www.szhighrun.en.china.cn
Please feel free to contact Amy for specific offer.
Tel: (86)755-22191543 Fax: (86)755-83531642
Skype: highrun2 Facebook:hai zhou
three output switching power supply 48v +15v -15v with 5 pin xlr dc connector
