Home > Products > LED Tri-proof Fixtures > 2*10w t8 0.6m led tri-proof light,100lm/w ,lighting fixture,IP65 IK10,CE ,Rohs,Erp,led tube light,super brightness 1600lm

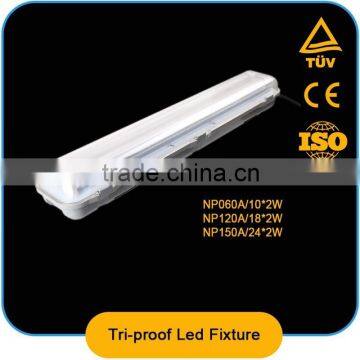

2*10w t8 0.6m led tri-proof light,100lm/w ,lighting fixture,IP65 IK10,CE ,Rohs,Erp,led tube light,super brightness 1600lm
Negotiable
/ Piece
100 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- shanghai or ningbo
- T/T Credit Card PayPal
You May Like
-
1.5m 60W tri-proof led light ,IP66,IK10,super brightness 105lm/w,led lighting fixture,CE ,EMC,LVD,ROHS,ERP,IEC
-
2015 new products newpeak 2*24w t8 1.5m tri-proof led tube light ,IP65,IK 10,led tri-proof light ,CE ROHS2015 new products newpe
-
led ceiling lighting UFO plastic little ceiling
-
led work light ceiling lighting UFO plastic little ceiling 20160315J
-
2u 6W led lamp 360 degree led corn light,led corn lamp,led u lamp,CE ,ROHS,LVD
-
3u 7W led lamp 360 degree led corn light,led corn light,led u lamp,CE ,ROHS,LVD
Product Details
| LED Light Source | SMD | Warranty(Years) | 3 | |
| Input Voltage(V) | 90-265V 50/60HZ | Lamp Power(W) | 20 | |
| Lamp Luminous Flux(lm) | 1600 | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Other, 3000K 4000K 6500K | Working Temperature(℃) | -20, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP66 | Certification | CCC, CE, EMC, LVD | |
| Place of Origin | Zhejiang, China | Brand Name | Newpeak | |
| Model Number | T8 |
Product Description
Product Description
1.Product Name: 2*10w t8 0.6m led tri-proof light ,lighting fixture,IP65 IK10,CE ,Rohs,Erp,led tube light,super brightness 1600lm
2.Detail and Technical Information as Below :
Model No | NP060A-10*2W | NP120A-18*2W | NP150A-24*2W | ||
Watts(±10%) | 20W | 36W | 48W | ||
Voltage (Frequency) | 90-265VAC(50/60Hz) | ||||
Power Factor (PF) | >0.9 | ||||
LEDs (SMD2835)/PCS | 48*2 | 96*2 | 120*2 | ||
Lumen(±10%)Lm | 1600 | 3000 | 4000 | ||
Efficiency (±10%)Lm/W | 85 | 85 | 85 | ||
CCT(K) | F3000,F4000,F6500 | ||||
CRI(Ra) | >80 | ||||
Beam Angle | 120° | ||||
Working Temperature | -20℃~45℃ | ||||
RH | 10%~95%RH | ||||
Storage Temperature | -30℃~60℃ | ||||
Lighting Lifespan | 50000 H | ||||
Body Material | ABS+PC Clear Cover ABS fastner | ||||
Tubes | T8 0.6M*2 | T8 1.2M*2 | T8 1.5M*2 | ||
Protection Rate | IP65 | ||||
Certifications | ROHS,CE | ||||
Remarks: The above information is for the mass production technical standard products ,if you have any customized products ,kindly please contact with us for further confirmation.
3.Pictures
4.Photometric Curve and Diagram
5.Installation :
First Step: Second Step:
Third Step:
6.Lamp Size:
Unit:mm
Model No | Spec | L | LF | H | W | Tubes |
NP060A-10*2W | 0.6m | 663 | 400 | 90 | 124 | T8/T10 |
NP120A-18*2W | 1.2m | 1265 | 900 | 90 | 124 | T8/T10 |
NP150A-24*2W | 1.5m | 1565 | 1000 | 90 | 124 | T8/T10 |
Packaging & Shipping
1.Package :color box and master carton with foam or air bag inside (refference pictures are below)
2.packing measurement :
No | Model No | Spec | (PCS)/CTNS | G.W(KGS) | Carton Size/L*W*H(mm) |
1 | NP060A-10*2W | 0.6m | 9 | 15.5 | 685*417*300 |
2 | NP120A-18*2W | 1.2m | 6 | 19.2 | 1295*285*300 |
3 | NP150A-24*2W | 1.5m | 6 | 24.8 | 1595*285*300 |
3.Shipment
Delivery date :within 3weeks normally
Way of shipment:By sea ,railway
