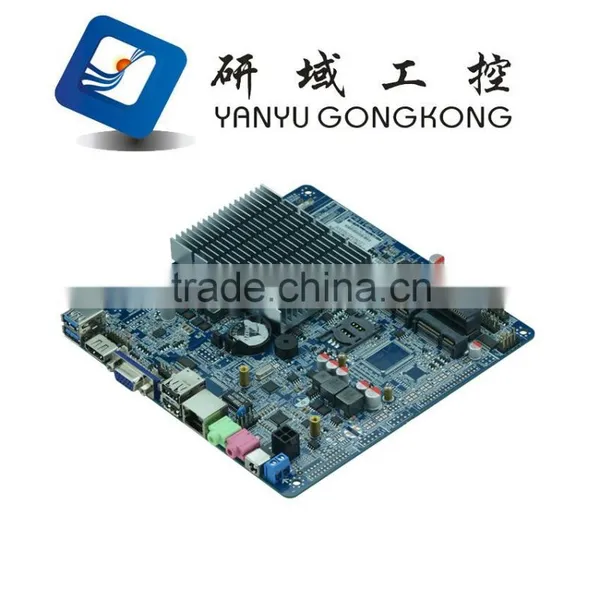

9*USB thin client mini motherboard without COM port support win7/8/10 linux system

Model NO.

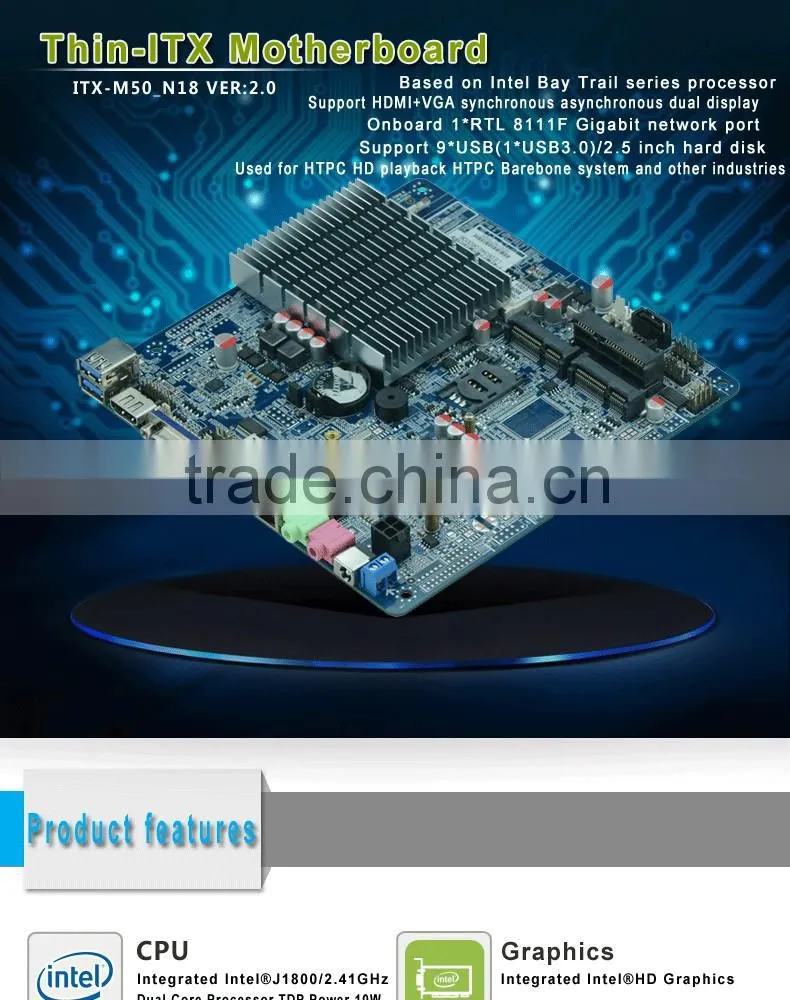

ITX-M50_N18  VER:2.0

CPU

Integrated Intel®J1800/2.41G Dual core,TDP 10W

Chipset

Intel® Bay trail SOC

Memory

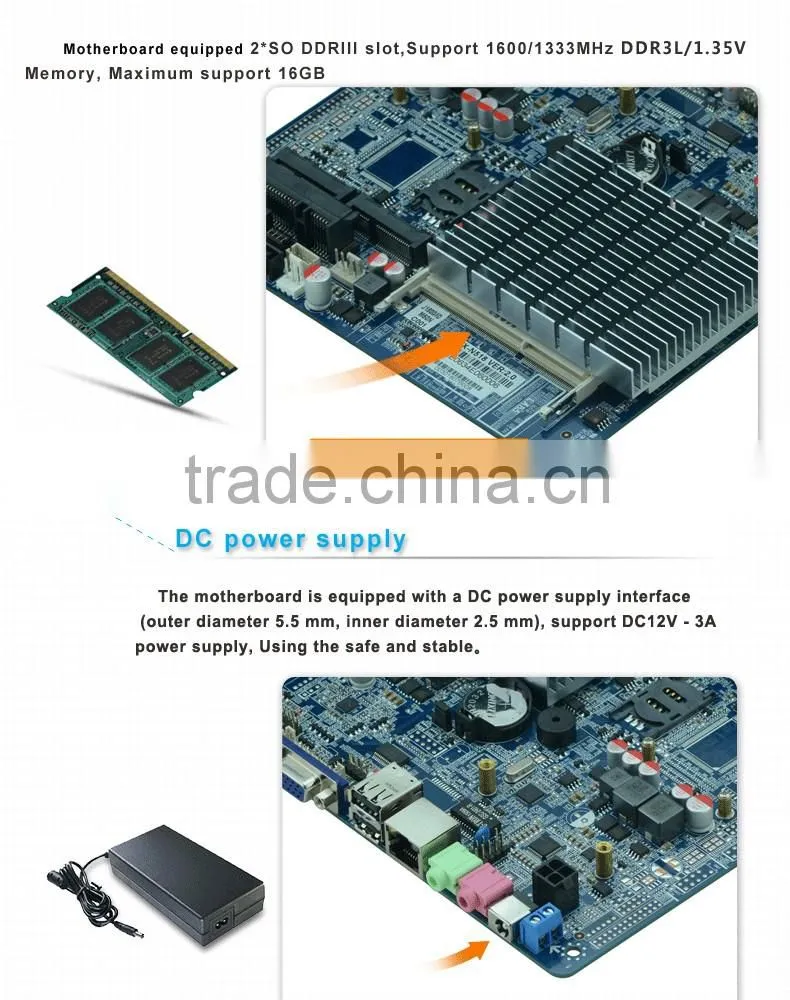

1*SO DDRIII,Only Support1600/1333MHz DDR3L/1.35V Memory, Up to 8GB

Display

Integrated Intel®HD Graphics

Support 1*VGA,2*HDMI

Support VGA;HDMI

LAN

1* RTL8111F 10/100/1000Mbps Ethernet,Support Wake-on-LAN/PXE

Storage

1* SSD

1* SATAⅢ 2.5 Inch notebook hard disk and 1* SATA Hard disk interface for you choose

Audio

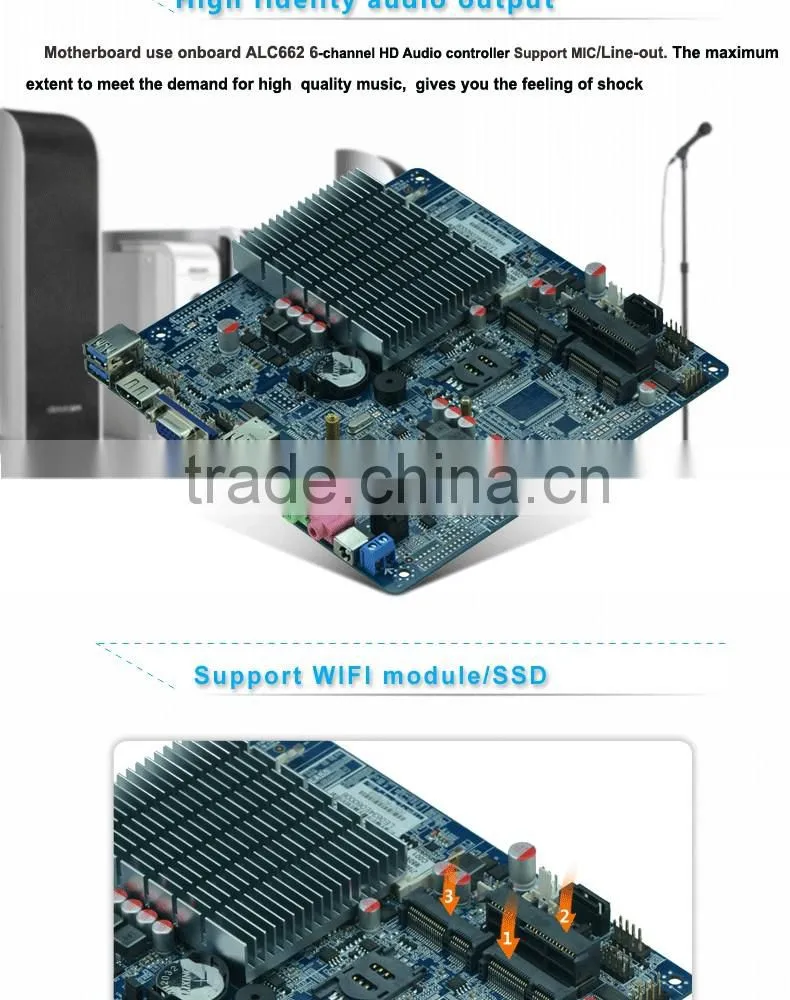

Integrated ALC662 6-Channel output,Support MIC/Line-out

Advise 3Ω5W loudspeaker

Expansion Slots

1* Mini-PCIE Support WIFI/3G

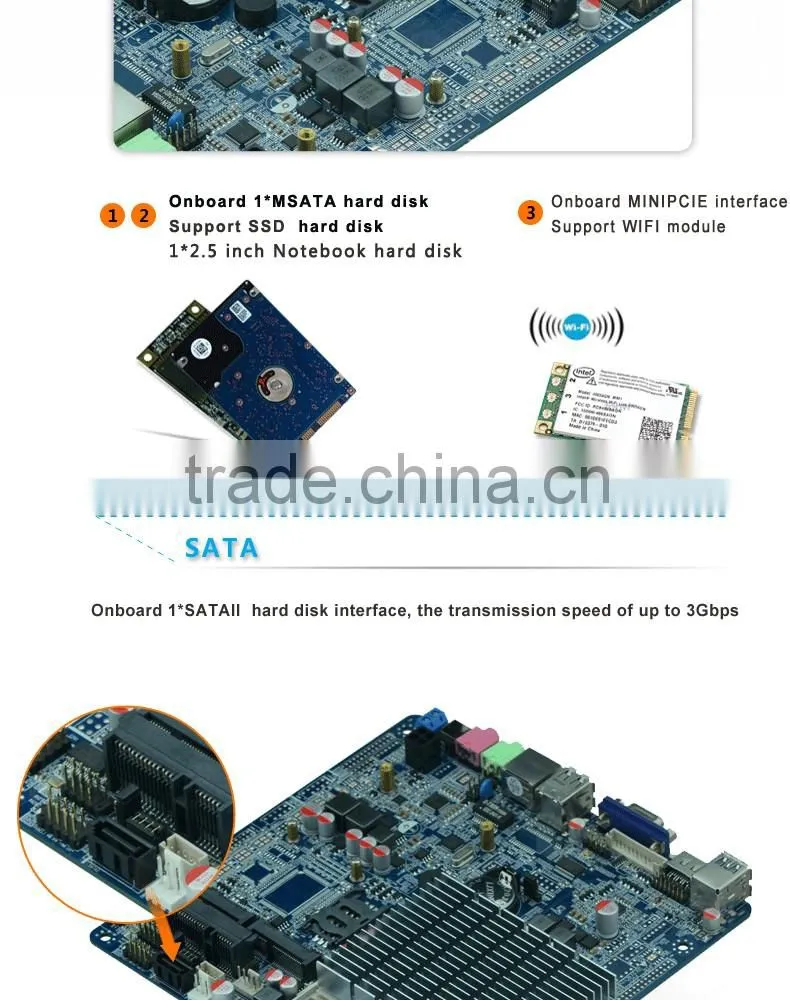

1* MSATA Support SSD/WIFI,SSD transfer rate up to 6Gbps

Rear I/O

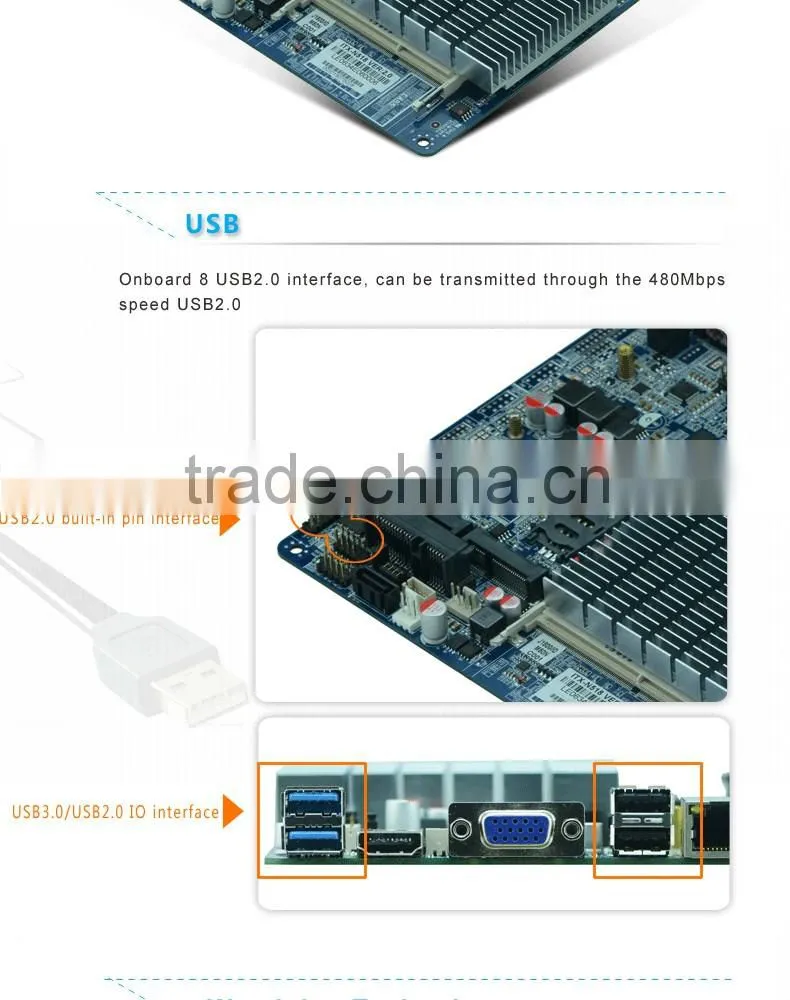

4* USB2.0

1* HDMI

1* VGA

1* RJ-45

1* Line out(Green)

1* Mic (Red )

1* 12V DC_JACK

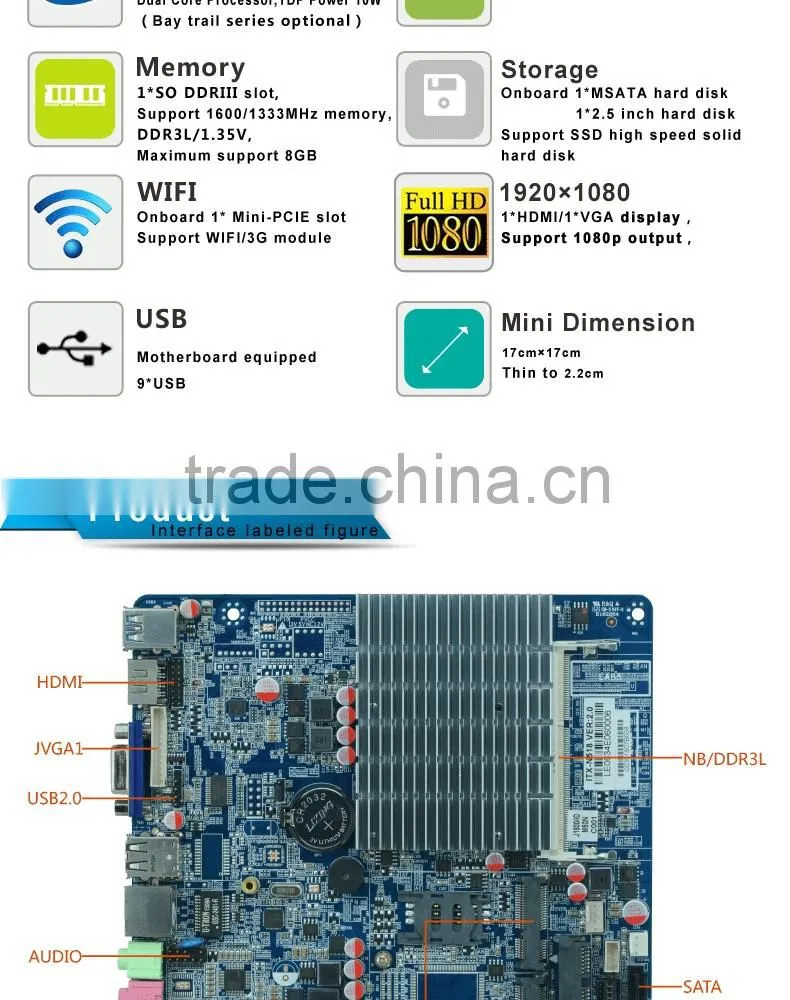

1* JHDMI(2*8Pin)

1* JVGA1(2*12pin)

1* LPT(2*13pin)

5* USB2.0(2*2X5pin,1*1x4pin)

1* PS/2(1*6Pin)

1* AUDIO (Front Audio interface 2*5pin)

1* SIM Card socket

1* PWROUT Hard disk power supply interface

1* FP1 (2*5pin Front panel buttons and LED connected)

1* ATX_12V Can be +12V Input and output power interface

Fan interface

1* CPUFAN 4pin;1* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

BIOS

AMI 64MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V Single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

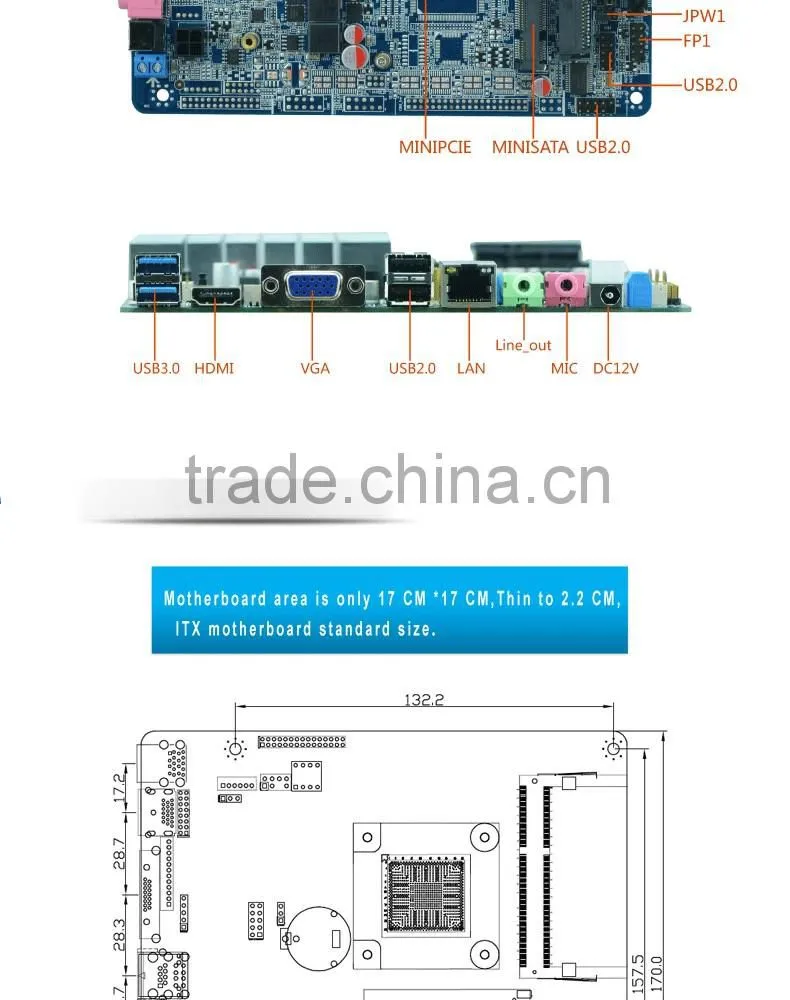

170mm x 170mm

NO.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M50_D6L VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

6

COM3

DC/12V

2

ITX-M50_N18 VER:2.0

J1800/2.41G

1*SODDR3

1*VGA

X

1*RTL8111F

9

X

X

DC/12V

3

ITX-M50_NC VER:1.3

J1900/2.00G

1*SODDR3

1*VGA

X

1*RTL8111F

7

X

X

DC/12V

4

ITX-M50_18 VER:2.2

J1800/2.41G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

2

X

DC/12V

5

ITX-M50 VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

1*RTL8111F

9

2

X

DC/12V

6

ITX-M50_2L VER:2.2

J1900/2.00G

1*SODDR3

1*VGA

2*24BIT

2*RTL8111F

7

6

COM3

DC/12V
