Best-selling design magnetic key door lock

Best-selling design magnetic key door lock

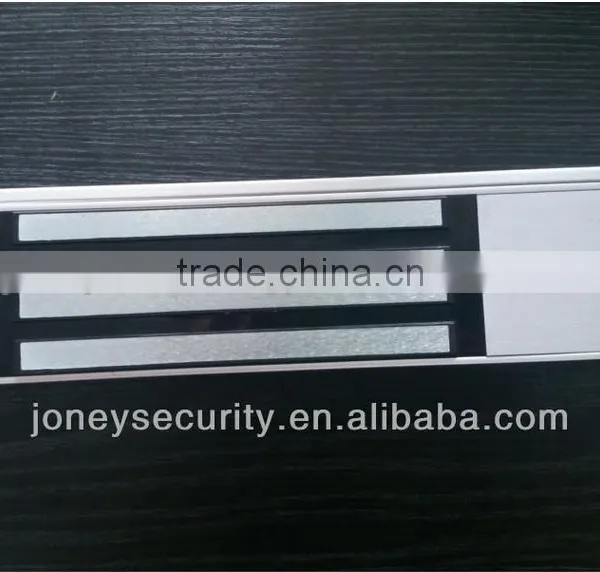

Magnetic Door Lock System
--1200 lbs holding force
--fail safe
--with LED
--easy to operate

500kg(1200lbs) Holding Force LED magnetic door lock system

instruction:

A. 12VDC Input

Required power 0.5Amp(Minimum)

Connect the positive(+) lead from a 12VDC power source

Connect the ground(-) lead from a 12VDC power source

Check jumper for 12VDC operation

B.24VDC Input

Require power 0.25 Amp(minimum)

Connect the positive (+)lead from a 24 VDC power source

Connect the ground (-) lead from a 24VDC power source

Check jumper for 24VDC operation

C. Contacts

Relay dry contacts are rates 1 Amp at 24VDC for safe operation, do not exceed this ratiing.

If you require a normally open switch, connect the wires from the system to C and NO.

If you require a normally closed switch, connect the wires from the system to C and NC.

Important!

If power switch is not wired beteen DC sorce voltage and magnet, it will take a longer time to de-energize the magnet simulating residual magnetism.
