Home > Products > AHD/CVI/SDI DVR > 5 in 1 hybrid dvr with HDMI AHD CVI TVI CVBS IP input ,4ch playback/4Audio
5 in 1 hybrid dvr with HDMI AHD CVI TVI CVBS IP input ,4ch playback/4Audio
- 10000 Piece / Pieces per Month
- SHENZHEN PORT
- Credit Card
You May Like
-
4 / 8 / 16 ch CCTV Camera System support 3G wifi P2P Manual Standalone Hybrid AHD DVR H 264
-
5 in 1 hybrid dvr, AHD CVI TVI CVBS IP VGA input ,8ch Playback Support 3g,wifi
-
16 ch AHD CVI TVI CVBS IP camera 5 in 1 hybrid dvr with competitive price
-
5 in 1 hybrid dvr economic AHD CVI TVI CVBS IP input ,4ch playback
-
5 in 1 hybrid dvr support AHD CVI TVI CVBS IP camera input cctv system
-
4 Channel Realtime 960H /D1 CCTV DVR Recorder
Product Details
Place of Origin | Guangdong, China | Brand Name | joneytech | |
Model Number | DVR-9104TS |
Product Description

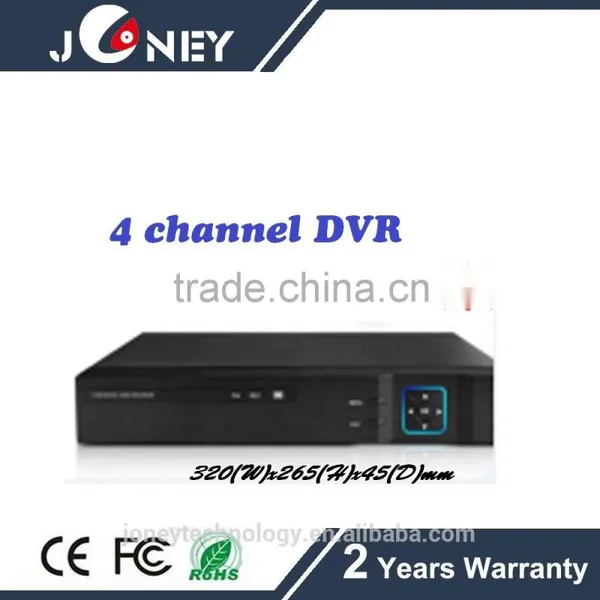

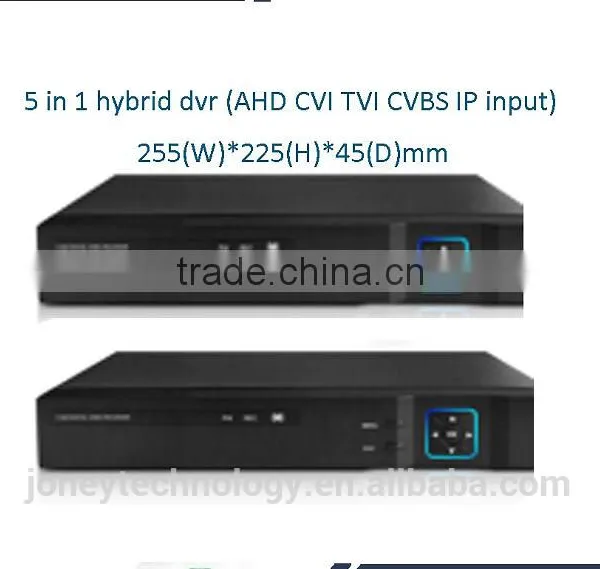

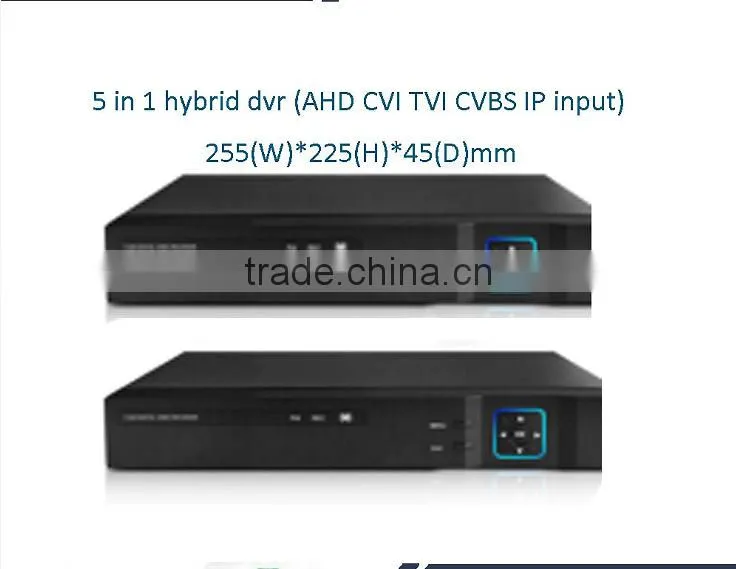

5 in 1 hybrid dvr with HDMI AHD CVI TVI CVBS IP input ,4ch playback/4Audio
Main Features:
- Support VGA,HDMI output;
- Support ONVIF protocol;
- Support Cloud function,P2P,Alarm push to mobile devices ,etc
- With Web,CMS,Central platform management software MYEYE,SDK for development;
- Support mobile devices.(Iphone,Android);
- Remote access ,built-in ddns and (ARSP),P2P
- Support 5 signal hybrid mode,IP+ analogue,AHD,TVI ,CVI input.
Analogue:4*1080N@30fps;4*960P;4*960H;(AHD/CVI/TVI/CVBS)Hybrid:2*960P(analogue)+2*720P(IP);IP camera:4*720P;8*1080P;4*1080P;1*1080P;8*720P;
| Model | DVR-9104TS |
System | Processor | HI3520D |
GUI | Channel display | 1/4/8/9/16ch |
view | Video compression Compression cccoccompression Compression | H.264 |
Monitor quality | VGA;HDMI | |
Encoding ability | 4*1080N@15fps | |
Onvif | Onvif 2.4
| |
Hybrid mode | Analogue:4*1080N@30fps;4*960P;4*960H;(AHD/CVI/TVI/CVBS) Hybrid:2*960P(analogue)+2*720P(IP); IP camera:4*720P;8*1080P;4*1080P;1*1080P;8*720P; | |
P2P | / | |
Motion detection | Each channel can setting :192(16*12)detection zon;mutiple sensitivity level (Local channels) | |
Audio | compression | G.711A |
Intercom | Support | |
Recording & Playback | mode | Manual>Alarm>motion detection>Time settings |
Local playback | 16ch(local channel inputs) | |
Recording search | Time search ,Date search,Event search,Channel search | |
Recording backup | Record | Local HDD,network |
Backup | Network backup,USB portable disk,USB recording,SATA recording | |
PORT | Video Input | 4ch BNC |
Video output | 1ch VGA,1ch HDMI | |
Loop output | N/A | |
Audio I/O | 2(6ch optional )/1 | |
Alarm I/O | no | |
Network | RJ45 10M/100M Enthernet port | |
PTZ | 1CH RS485;Support multiple PTZ protocol | |
USB port | 2*USB port | |
HDD port | 2*SATA port(each max 6T) | |
wireless | no | |
others | Power | 12V/4A |
Consumption | >=15W(without HDD) | |
Working environment | 0℃—+55℃,Humidity 10%—90%,86kpa—106kpa | |
Size | 320(W)x265(H)x45(D)mm | |
Weight | 1.5g(net weight) |
