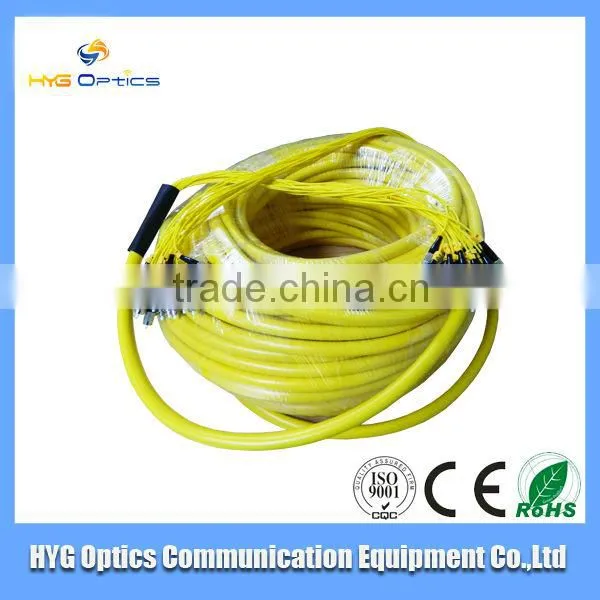

High Quality fiber optical fc/apc pigtail for network solution

Neutral Packing 300pcs/ctn 2pc/blister

Specifications

fiber optical fc/apc pigtail
1.material:LSZH/PVC/PU
2.indoor
3.LC/FC/ST/SC connectors
4.CE ,ROHS and ISO 9001

fiber optical fc/apc pigtail for FTTH solution

Applied range

1 Optical fiber communication system

2 Optical access network

3 Optic-fiber Date Communication

4 Optical-fiber CATV

5 A local area network (LAN)

6 Test Equipment



Order informations

HYG-ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M

          1     2      1     2     3      4     5        6

1 Connector types:  FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4 Cable Quantity: “2C” means duplex,C means simple

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



Technical parameters

1 The min bending radius: 3.8 cm

2 Operating temperature range: - 40 ~ 85 °C

3 connector materials: ceramic plug core

4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

5 Repeat plug: < 0.2 dB, each 500 times plug

6 Min reflection loss: 20 db

7 Max return loss:-50dB



ITEM			TEST conditions	Single mode	Multi mode
Optical properties	Insertion loss	UPC	1.31um,LED	<=0.3dB	<= 0.3dB
		APC	1.31um,LED	<= 0.3dB	<= 0.3dB
	Return loss	UPC	1.31um,LED	>=50dB	>=35dB
		APC	1.31um,LED	>=60dB
Mechanical properties	Impact test		HIGH:1.8   8 TIMES	<0.1dB	<0.1dB
	Vibration experiment		5-50HZ,1mm Full amplitude	<0.1dB	<0.1dB
	Plug life		More than 1000 times	<0.1dB	<0.1dB
	tensile strength		>100N,	<0.1dB	<0.1dB
Environment characteristics	Temperature Cycling Test		-25°C~+70°C,5 circle	<0.2dB	<0.2dB
	high-temperature test		+80°C,100 hours	<0.2dB	<0.2dB
	Low-temperature test		-40°C,100 hours	<0.2dB	<0.2dB
	Damp and hot test		+25°C~+65°C,Relative humidity 93%,100 hours	<0.2dB	<0.2dB



Environmental Reliability Test



The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others
