Model
25/30fps@1080P(1984×1225),25/30/50/60fps@720P(1280×720), 6mm fixed lens, IR LED, IP66
Features
- 1/2.8" 2.4Megapixel CMOS
- 25/30@1080P, 25/30/50/60fps@720P
- High speed, long distance real-time transmission
- HD and standard definition switchable
- OSD Menu, control over coaxial cable
- Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
6mm fixed lens (3.6mm, 8mm optional)
- Max. IR LEDs length 20m, Smart IR
IP66, DC12V
Specification
Model | HAC-HFW2220SP | HAC-HFW2220SN |
Camera | ||
Image Sensor | 1/2.8" 2.4Megapixel CMOS | |
Effective Pixels | 1984(H)×1225(V) | |
Electronic Shutter | 1/3s~1/100,000s | |
Video Frame Rate | 25/30/50/60fps,720P; 25/30fps@1080P | |
Synchronization | Internal | |
Min. Illumination | 0.05Lux,F1.2(AGC ON), 0Lux IR on | |
Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
Camera Features | ||
Max. IR LEDs Length | 20m, Smart IR | |
Day/Night | Auto(ICR) / B&W / Color | |
Noise Reduction | 2D/3D | |
OSD Menu | Support | |
Lens | ||
Focal length | 6mm (3.6mm, 8mm optional) | |
Mount Type | M12 | |
General | ||
Power Supply | DC12V±10% | |
Power Consumption | Max 4.5W | |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
Transmission Distance | Over 300m via 75-3 coaxial cable | |
Ingress Protection | IP66 | |
Dimensions(W×D×H) | Φ65mm×154.7mm | |
Weight | 0.38kg | |
Others | Default: bracket included | |

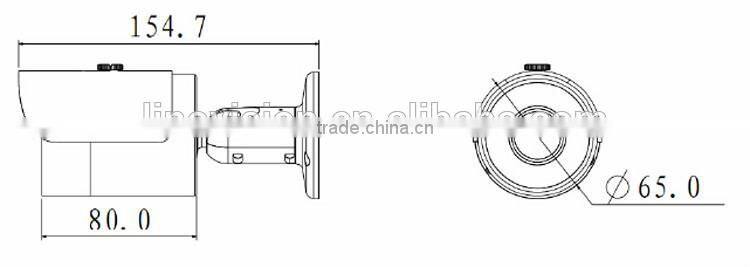

Dimension (mm)
WEB, Mobile App and CMS:
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
