Model

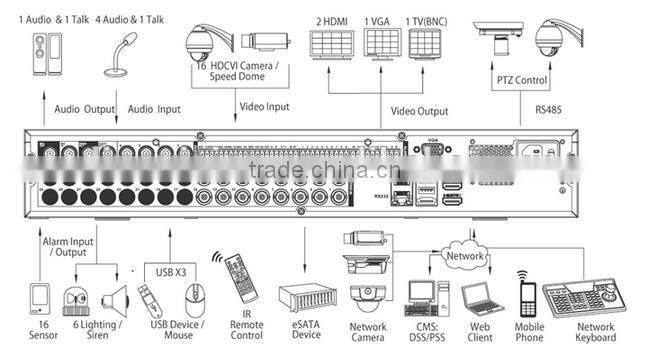

HCVR7416L: 16 channel video inputs, 4/1 audio input/output. Support 16 channels 1080P real-time preview and recording. Support HDMI, TV, VGA, USB2.0, 4HDD.
Features
- Tribrid: Each channel supports HDCVI/Analog/IP Video input
- 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
- HCVR7416L:All channel Max 1080P
- Up to 1080p realtime live view
- H.264 dual-stream video compression
- 4 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
- 3D intelligent positioning with PTZ dome camera
- Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,3 USB2.0
- Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
Specification
Model | HCVR7416L | ||
System | |||
Main Processor | Embedded processor | ||
Operating System | Embedded LINUX | ||
Video | |||
Input | 16 channel | ||
Video Standard | HDCVI | 1080P/720P HDCVI Camera | |
Analog | NTSC(525Line, 60f/s), PAL(625Line, 50f/s),Effio 960H Camera | ||
IP | 1080P/720P/D1/CIF IP Camera | ||
Audio | |||
Input | 4 channel, BNC | ||
Output | 1 channel, BNC | ||
Two-way Talk | 1 channel input,1channel output, BNC | ||
Display | |||
Interface | 2 HDMI,1 VGA,1 TV | ||
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | ||
Display Split | 1/4/8/9/16 | ||
Privacy Masking | 4 rectangular zones (each camera) | ||
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
Recording | |||
Video/Audio Compression | H.264/G.711 | ||
Resolution | 1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CI F(704×576/704×480)/CIF(352×288/352×240)/QCIF(176×144/176×120) | ||
Record Rate | Main Stream: | 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |
Extra Stream | CIF/QCIF(1~25/30fps) | ||
Bit Rate | 48~8192Kb/s | ||
Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
Video Detection & Alarm | |||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
Alarm Input | 16 channel | ||
Relay Output | 6 channel | ||
Playback & Backup | |||
Sync Playback | 1/4/9/16 | ||
Search Mode | Time/Date, MD & Exact search (accurate to second) | ||
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||
Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | ||
Network | |||
Ethernet | RJ-45 port (10/100M/1000M) | ||
Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | ||
Max. User Access | 128 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||
Storage | |||
Internal HDD | 4 SATA ports, up to 16TB | ||
External HDD | 1 eSATA port, up to 16TB | ||
Auxiliary Interface | |||
USB Interface | 3 ports(2 Rear),USB2.0 | ||
RS232 | 1 port, For PC communication & Keyboard | ||
RS485 | 1 port RS485 for PTZ control,1 port RS422 for Keyboard | ||
General | |||
Power Supply | AC 100~240 V, 50/60 Hz | ||
Power Consumption | 40W(without HDD) | ||
Working Environment | -10°C ~+55°C / 10%~90%RH / 86~106kpa | ||
Dimension(W×D×H) | 1.5U, 440mm×410mm×70mm | ||
Weight | 6KG(without HDD) | ||
Dimension (mm)

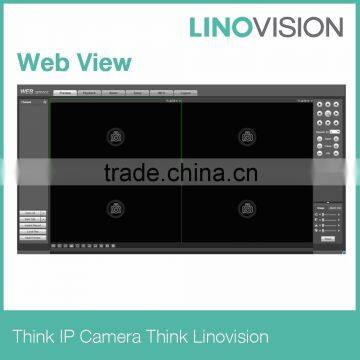

WEB, Mobile App and CMS:
Package:
All of our products are neutral packing.
Shipping:
- Lead time: for most of our popular models, we have them in stock for small quantity. And we will ship them immediately after payment is confirmed. For other products, it will take about 2-3 weeks for manufacturing and quality control process;
- We generally ship goods via express couriers like DHL, FedEx, which we have special discount with them. You can also arrange shipping agent to pick up goods from our stock house.
OEM:
We provide OEM service, including Logo, Sticker, Software, etc.
Warranty:
- 2 year hardware warranty
- life-time software upgrade and technical support
Think IP camera, think Linovision.
In the last 8 years, we are proud of designing and manufacturing a complete line of IP cameras, as well as DVRs, NVRs, IP Speed Domes, PC based DVRs, management software, PoE switches, etc.
With headquarters in the city of Hangzhou (China), we are working closely with several world-leading manufacturers here, like Hikvision, Dahua, etc.
Our Core Competence includes:
- Excellent product quality as you can expect from other big brands;
- Capable of hardware/software customization according to your specific requirements;
- Faster response and speed delivery;
- We insist on win-win cooperation, most of our partners are growing together with us in the last 5 years.
