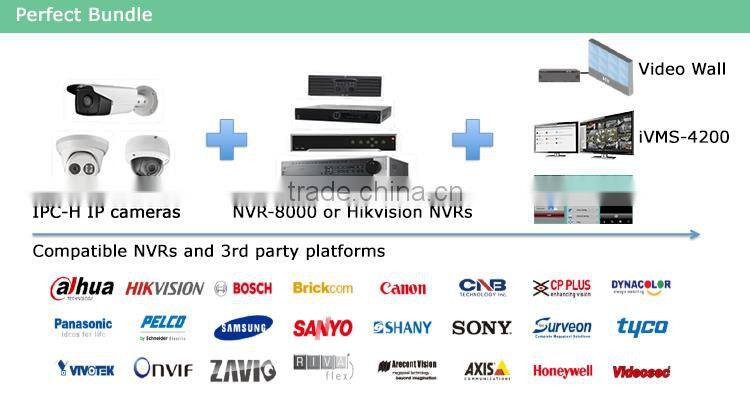

> Third-party network cameras supported
> Up to 6 Megapixels resolution recording
> HDMI and VGA output at up to 1920×1080P resolution
> 8ch network cameras can be connected with 80Mbps incoming bandwidth
> Up to 2 SATA interfaces
> Plug & Play with up to 8 independent PoE network interfaces
> Support network detection, including network delay, packet loss, etc.
Model | NVR-8108-P8 |
Video/Audio input | |
IP video input | 8-ch |
| Two-way audio | 1ch, BNC (2.0 Vp-p, 1kΩ) |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 80 Mbps |
Remote connection | 128 |
Video/Audio output | |
Recording resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Frame rate | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
HDMI/VGA output | 1ch, resolution: 1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
Audio output | 1-ch, RCA (Linear, 1KΩ) |
Synchronous Playback | 8-ch |
Decoding | |
Live view/Playback resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 8-ch@720P, 6-ch@1080P |
Hard disk | |
SATA | 2 SATA interfaces for 2 HDDs |
Capacity | Up to 4TB capacity for each HDD |
External interface | |
Network interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
USB interface | 1 × USB 2.0 and 1 × USB 3.0 |
Alarm in/out | 4/1 |
| POE | |
| Interface | 8 independent 100 Mbps PoE network interfaces |
| Max. Power | 120W |
| Supported Standard | AF and AT |
General | |
Power supply | 100 to 240 VAC |
Consumption | ≤ 20 W( |
Working temperature | -10 to +55° C (14 to 131° F) |
Working humidity | 10 to 90 % |
Chassis | 19-inch rack-mounted 1U chassis |
Dimensions (W × D × H) | 445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch) |
Weight(without HDD) | ≤ 1 kg(2.2 lb) |
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider.
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestone
| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
