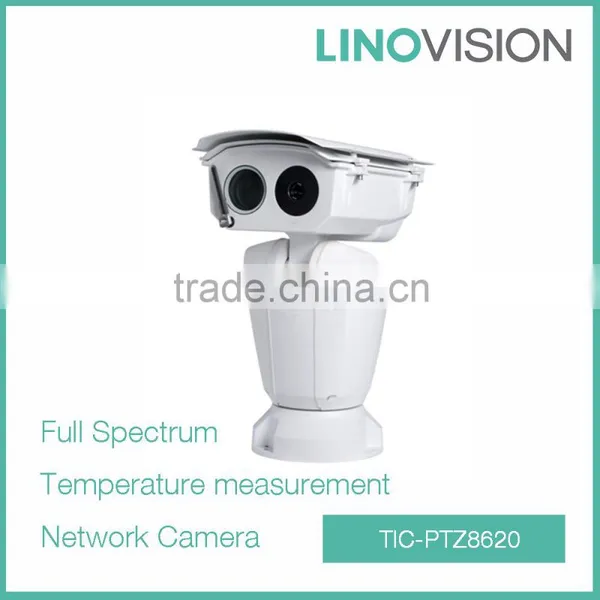

Full Spectrum Network Thermal Imaging PTZ Camera With Temperature Measurement
- 10000 Piece / Pieces per Month
- Shanghai
- Credit Card
- Temperature Measurement Full Spectrum 640x512 IP Thermal Imaging PTZ Camera
- Full Spectrum 336x256 Network Thermal Imaging Speed Dome Camera With Temperature Measurement
- Economic Network 640x512 Thermal Imaging Speed Dome Camera With Temperature Measurement
- Economic Network 336x256 Thermal Imaging Speed Dome Camera With Temperature Measurement
- Economic Network 640x512 Thermal Imaging Bullet Camera With Temperature Measurement
- Economic Network 336x256 Thermal Imaging Bullet Camera With Temperature Measurement
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Linovision | Model Number: | TIC-PTZ8620 |
Type: | IP Camera | Style: | Dome Camera | Sensor: | Other, Long Life, Uncooled VOx Microbolometer |
Technology: | NetWork | Special Features: | Waterproof / Weatherproof |
Product Description
> 1/2.8” 2Megapixel progressive scan Exmor CMOS
> Max 60fps@720P and 30fps@1080P resolution
> Powerful 40x optical zoom
> 640*512 VOx uncooled thermal sensor technology
> Athermalized Lens(thermal camera),Focus-free
> Support ROI,Motion Detection,Color Palettes
> Max 160°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 7/2 alarm in/out
> Micro SD memory(Max 128G)
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> H.264&MJPEG dual-stream encoding
> IP66
Model | TIC-PTZ8620 | ||||
Thermal Camera | |||||
Sensor Type | Long Life, Uncooled VOx Microbolometer | ||||
Effective Pixels | 640(H) x 512(V) | ||||
Pixel Size | 17um | ||||
Thermal Sensitivity | <40mK@f/1.0 | ||||
Spectral range | 7.5~13.5um | ||||
Lens | |||||
Focal Length | 35mm | 60mm | 100mm | ||
Focus Range | Athermalized , Focus-free | ||||
Angle of View(H×V) | 18°* 14 ° | Angle of View(H×V) | 18°* 14 ° | ||
Effective Distance | Man (1.8m*0.5m) | Detection:1300m Recognition:320m Identification:160m | Detection:2000m Recognition:500m Identification:260m | Detection:3000m Recognition:750m Identification:400m | |
Vehicle (2.3m*2.3m) | Detection:4000m Recognition:1000m Identification:300m | Detection:6000m Recognition:1600m Identification:800m | Detection:9000m Recognition:2300m Identification:1200m | ||
Camera Features | |||||
Digital Zoom | 24X | ||||
Color Palettes | 14(Whitehot/Blackhot/Ironrow/Icefire/FusionRainbowGlobowIconbow1Iconbow2 .etc) | ||||
ROI | Support, Custom areas | ||||
Visible Camera | |||||
Image Sensor | 1/2.8" Exmor CMOS | ||||
Effective Pixels | 1944(H) x 1092(V),2 Megapixels | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | 1/1 ~ 1/30,000s | ||||
Min. Illumination | Color: 0.05Lux @ F1.6; B/W: 0.005Lux @ F1.6; 0Lux @ F1.6 (IR on) | ||||
S/N Ratio | More than 50dB | ||||
Video Output | BNC(1.0Vp-p/75Ω), PAL/NTSC | ||||
Camera Features | |||||
Day/Night | Auto(ICR) / Color / B/W | ||||
Backlight Compensation | BLC / HLC /DWDR | ||||
White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||
Gain Control | Auto / Manual | ||||
Noise Reduction | Ultra DNR (2D/3D) | ||||
Privacy Masking | Up to 24 areas | ||||
Digital Zoom | 16x | ||||
EIS | Support | ||||
Defog | Support | ||||
Lens | |||||
Focal Length | 7.9mm ~ 316mm(40x Optical zoom) | ||||
Max Aperture | F1.6 ~ F6.1 | ||||
Focus Control | Auto / Manual | ||||
Angle of View | H: 41.5° ~ 1.1° | ||||
Close Focus Distance | 100mm~ 1000mm | ||||
Video | |||||
Compression | H.264Main profile/H.264High profile/M-JPEG | ||||
Frame Rate | Main Stream | Thermal:720P (default)/ 1280*1024@30fps Visible: 1080P (default)/720P@30fps | |||
Sub Stream | Thermal:640*360 (default)/ 640*512@30fps Visible: D1 (default)/CIF@30fps | ||||
Bit Rate | H.264: 56K ~14Mbps | ||||
Audio | |||||
Compression | G.711a/G.711mu | ||||
Interface | 1/1 channel In/Out | ||||
Intelligent Function | |||||
Auto Tracking | Single-scene, multiple-scene | ||||
Intelligent Video(optional) | Tripwire, Intrusion, Object Detection(Person&Vehicle), Abandon detection, Missing detection, Heat source detect& alarm .etc.. | ||||
Tracking Trigger Mode | Manual / Auto (alarm triggered) | ||||
Tracking Trigger Event | Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc. | ||||
Network | |||||
Ethernet | RJ-45 (10/100Base-T) | ||||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||||
Compatibility | ONVIF PSIA CGI | ||||
Max. User Access | 20 users | ||||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
PTZ | |||||
Pan/Tilt Range | Pan: 0° ~ 360°endless;Tilt: -45° ~ 90° | ||||
Manual Control Speed | Pan: 0.1° ~160° /s ; Tilt: 0.1° ~60° /s | ||||
Preset Speed | Pan: 0.1° ~160° /s ; Tilt: 0.1° ~60° /s | ||||
Preset | 300 | ||||
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | ||||
Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period | ||||
Auxiliary Interface | |||||
Memory Slot | Micro SD, Max 128GB | ||||
RS485 | Support | ||||
Alarm | 7/2 channel In/Out | ||||
General | |||||
Power Supply | AC24V | ||||
Power Consumption | <70W | ||||
Working Environment | -40°C~+70°C, Less than 90% RH | ||||
Ingress Protection | IP66 | ||||

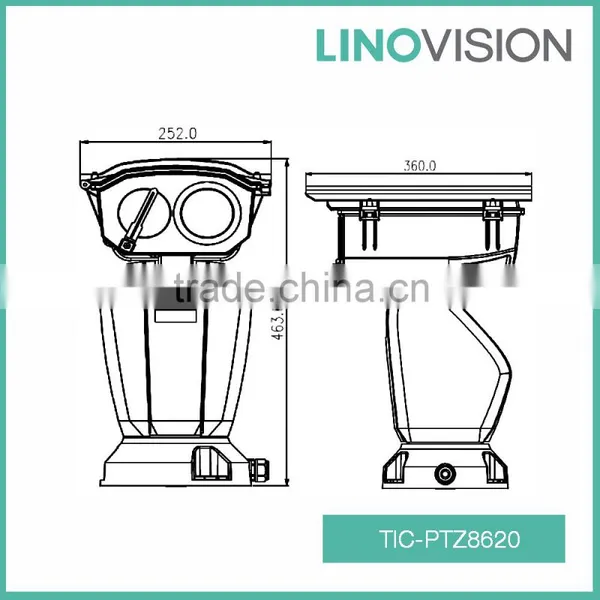

Dimensions | 360 mm × 252mm× 464mm | ||||
Weight | ≤18KG | ||||
Note: Effective distance values shown are nominal values and should be used as estimates only. Exact value calculations depend on a wide variety of conditions. |
