CB3282-87 Marine Surface Friction Upper Rudder Bearing For Boat And Vessel

FOB Price

USD $1 - $1 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port shanghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Chongqing, China	Brand Name:	Perpetual	Model Number:	CB3282-87
Part:	Other, Bearing

Product Description

Specifications

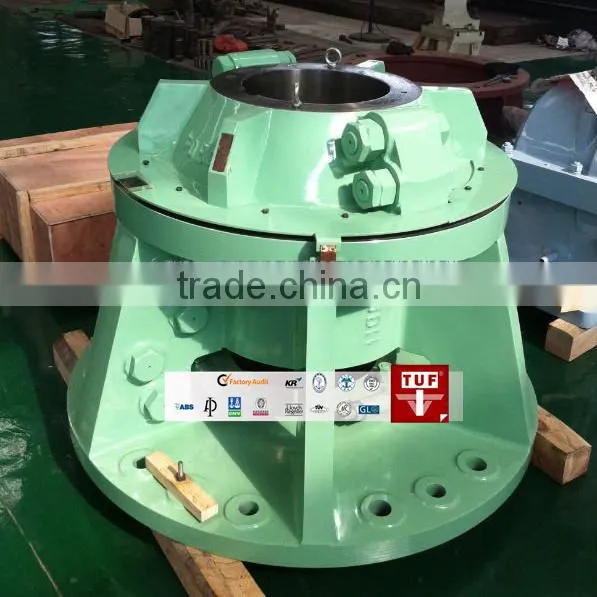

Our surface friction watertight upper rudder carrier is designed and manufactured in accordance with the standard of CB*3282-87

The Surface Friction Watertight Upper Rudder Carrier is one of the commonest upper rudder carriers used for different ships. The proper diameter of the rudder stock is from 200mm to 600mm.

Technical parameters:

Dia. Of Rudder Stock	D1	D2	D3	D8	Connecting Bolt	A	B	C	E	H	T3	Key Size
200	216	466	670	590	M30×12	330	80	90	450	20	30	45×25×80
220	236	550	790	700	M36×12	375	85	100	505	20	30	45×25×90
240	258	620	860	770	M36×12	430	90	100	560	20	30	45×25×90
260	278	680	920	830	M36×12	460	95	110	600	20	30	50×28×100
280	300	720	960	870	M36×12	515	90	110	665	20	40	60×32×100
300	320	750	1110	940	M42×12	545	95	120	705	20	40	60×32×110
320	342	780	1180	1010	M42×18	570	100	120	730	25	40	60×32×110
340	362	840	1240	1070	M42×18	630	105	130	800	25	40	60×32×120
360	384	900	1300	1130	M48×18	690	90	130	880	25	60	60×32×120
380	404	960	1360	1190	M48×18	755	95	140	955	25	60	60×32×130
400	426	960	1360	1190	M42×12	600	110	140	800	25	60	70×36×130
420	446	1020	1420	1250	M42×18	635	110	150	845	30	60	70×36×140
440	468	1080	1480	1310	M42×18	665	105	150	885	30	70	70×36×140
460	488	1140	1540	1370	M42×18	700	110	160	930	30	70	70×36×150
480	510	1210	1610	1440	M42×18	730	115	160	960	30	70	80×40×150
500	530	1270	1670	1500	M42×18	760	120	170	1000	30	70	80×40×160
600	690	1450	1950	1785	M64×28	890	140	200	1300	40	80	100×50×190

*Remark: This data sheet is just for reference. We can also manufacture the size according to the requirement or drawing of our client.
