Product Details
Place of Origin | Guangdong, China | Brand Name | YLI | |
Model Number | YS-130NO/NC-S |
Product Description
Product Parameter | Parameter Description |

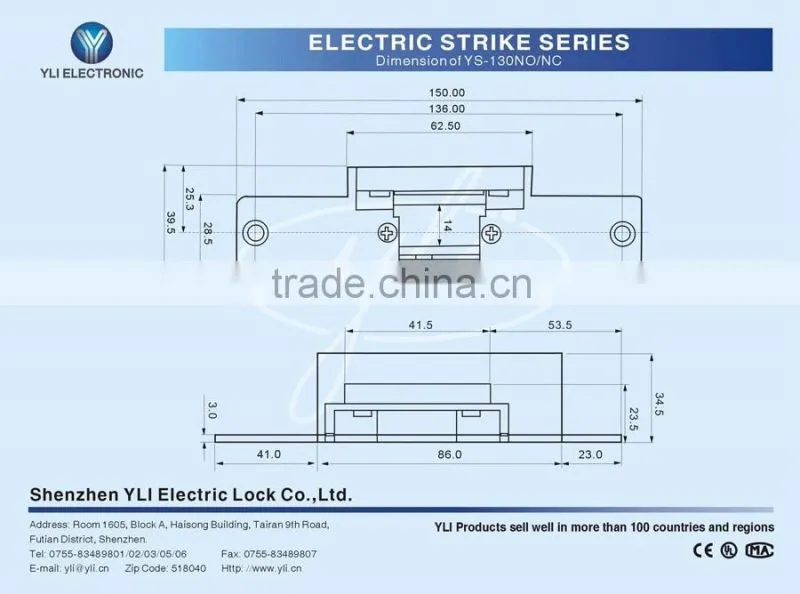

Lock Size | 150Lx39.5Wx34H(mm) |
lt structure | Zinc alloy |
Holding Stength | 500kg |
Voltage | DC12V (Need Order DC24V) |
Current | 200mA(YS-130NO-S); 200mA(YS-130NC-S) |
Feature | Fail Secure(YS-130NO-S) ;Fail Safe(YS-130NC-S) |
Signal Output | Lock Status OutputNO/NC/COM |
Suitable For | Wooden Door,Metal Door,PVC Door |
Surface Temperature | Within +20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~90%(non-condensing) |
Function | Built-out MOV |
Optional Accessories | YS-305 YS-306 |
Weight | 0.4kg |
Holding 500kg .
Aluminum, Stainless Steel Bolt.
Testing to 1000000 cycles.
High-Temperature Painted,Duable and Beatiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.
Packing Quantity(PCS/CTN) | 60 |
Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
Gross Weight(KG) | 23.4 |
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products,
we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company.
Meanwhile, we reserved all the rights of law for any tangle.
..
...
...
...
