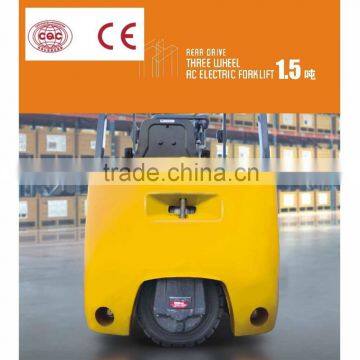

CHL 1.5 Ton Small Forklift For Sale

Specifications

small forklift for sale
1. With CE CQC certificate;
2. With Euro 3 emission standard;
3. With modern design, reliable quality







 1.  Factory Introduction

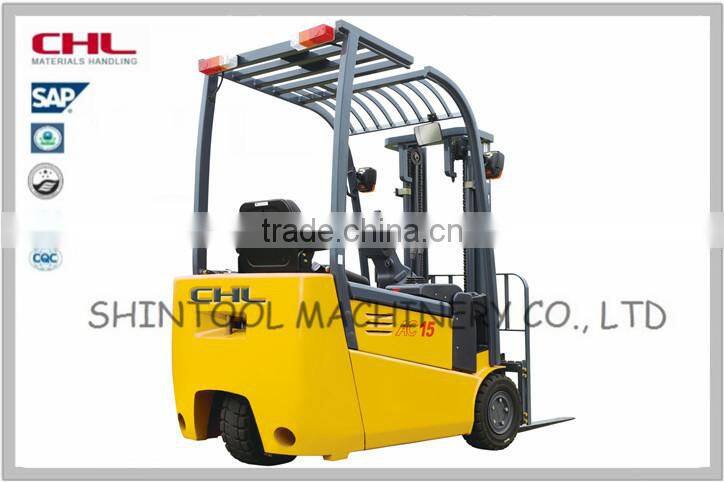

2. Products Show

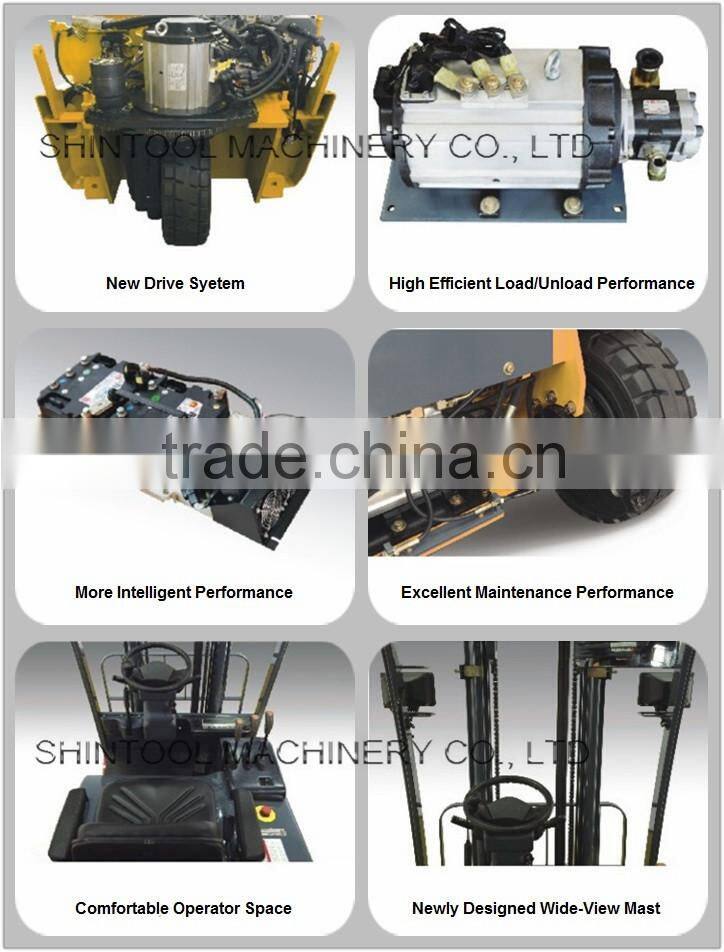

3. Details picture



4. Product testing





5.  Product Standard Configuration



Wide View duplex mast	Overhead guard	Traction bar	Superelastic tyre
Standard forklift	Overhead guard raincoat	Relevant tools	Control valve
Standard seat	Fork Carriage	Battery group	Fork bracket





6.   Forklift Optional Devices and Accessories

Carrying ram	Load stabilizer	Widened fork carriage	Longer forks
Crane boom	Load ejector	Pumping fork	Fork extended coverage
Rotating flat holding clip	Side shifter	Customer make color	Option attachments





7.  Forklift Specifications



Manufacturie`s Name		ANHUI HELI CO.,LTD.
Model Designation		CPD15SH
Configuration Number		GA2/GA3
Load Capacity	Q(kg)	1500
Load Center	c(mm)	500
Power Type		Battery
Operator Type		Seated
Wheelbase	y(mm)	1200
Tyre type		Superelastic
Tyre Number(Front/Rear)		2/1×
Tread(centre of tyre),front	b10(mm)	840(910*)
Tread(centre of tyre),rear	b11(mm)	-
Tyre Size,Front		18×7-8
Tyre Size,rear		18×7-8
Load Distance	x(mm)	330
Mast Tilt Angle,F/R	α/β(°)	3/6
Height with Mast Lowered	h1(mm)	1955
Free Lift	h2(mm)	110
Standard Lift Height	h3(mm)	3000
Height with Masht Extended	h4(mm)	4008
Overhead Guard Herght	h6(mm)	2080
Fork Size T×W×L	s/e/L(mm)	35×100×920
Fork Carriage to DIN 15173 A/B		2A
Length to fork face	L2(mm)	1797
Overall With	L1(mm)	990(1060*)
Outside Turning Radius	Wa(mm)	1467
Ground Clearance at mast,Loaded	m1(mm)	90
Ground Clearance at centre of wheelbase,Loaded	m2(mm)	100
Right Stack Aisle width(Pallet size 1000×1000mm,clearance 200mm)	Ast(mm)	3088
Right Stack Aisle width(Pallet size 1200×1200mm,clearance 200mm)	Ast(mm)	3311
Travel Speed,with/without load	km/h	12/12.5
Lifting Speed,with/without load	m/s	0.28/0.48
Lowering Speed,with/without load	m/s	0.55/0.45
Gradient performance with load	%	840(910*)
Acceleration time(10 metres) W/O load	N	7030
Total Approximate Weight(W/O battery)	kg	2897/2237
Axle Loading:Unloaded,Front/Rear	kg	1252/1645
Axle loading:Loaded,Front/Rear	kg	3790/607
Battery Voltage/rated capacity(5h)(min/max)	V/Ah	24/720(720/1000)
Battery weight(mix/max)	kg	660(650/750)
Battery to DIN 43531/35/36/A/B/C		43535A
Drive Motor-60 Min.Rating	kW	4.2
Pump Motor-15 Min.Rating	kW	6.2
Drive Motor Control Method		MOSFET/AC
Pump Motor Control Method		MOSFET/AC
Service Brake/Parking Brake		Hydraulic/Mechanial
Relief Pressure	Mpa	17.5





8. Forklift Optional attachments











9.  Product warranty term



• 15 months or 2000 working hours (which comes first).
• We provide the replacement parts for free within the warranty period.











10. Certificates













11. FAQ

1. Who is HELI ?

HELI is the forklift first brand in China. Racking Top 9 in the global forklift Suppliers in 2012 year. Market share 32% in domestic market
and export to more than 150 countries.



2. What is brand CHL?

CHL is a new brand created by the HELI factory on 2013. It is a new business of HELI.



3. What is the difference between HELI brand forklift and CHL brand forklift ?



Same	Difference
Same Factory	Different Painting Color
Same Components	Different Brand Name
Same Assembly Line	Different Brand Name
Same Support Team	Better Price





4. Who is Shintool ?

Shintool machinery is the company which been officially authorized by HELI factory to sell brand “CHL” forklift which produced by the
HELI factory.



We are sincerely looking for dealers for CHL forklifts in worldwide market,
and welcome your contact any time!



12. Our Services



At Shintool machinery, we supply ONE-STOP- SHOP  solution service for warehouse equipments and Chinese brand forklift

parts

Depends on 7 years experience and profession on the Chinese export business, any customer who  have the business

with us and - also any other Chinese suppliers,  we can be the position of supplying  ONE STOP- SHOP   export service.  Our nearest
export port is Shanghai, and Ningbo.



We can be the main exporter who is in charger of connecting other suppliers,  organizing the shipment, LCL load, one

B/L supply and other export issue service.
