Welding generating set With 4 Wheels
- 1000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
2KVA diesel welding silent type generator set
-
sell 6KW silent type diesel generator
-
5kva portable low noise diesel welding generator machine
-
5kva Generator welder diesel engine portable welding generator price
-
5kva diesel engines power generators with welding function for sale
-
6kva protable CE certification saving fuel welding generator diesel
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | RUIYING | Model Number: | RY5GF-LDEW |
| Output Type: | AC Single Phase | Speed: | 3000/3600rpm | Frequency: | 50/60HZ |
| Rated Power: | 2.0A | Rated Voltage: | 220V/380V | Rated Current: | 22A |
Product Description

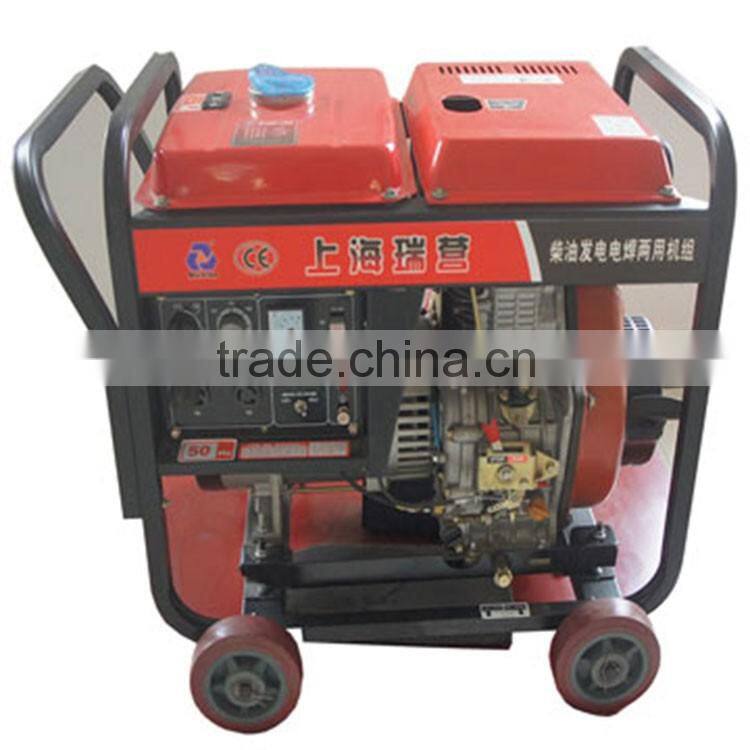

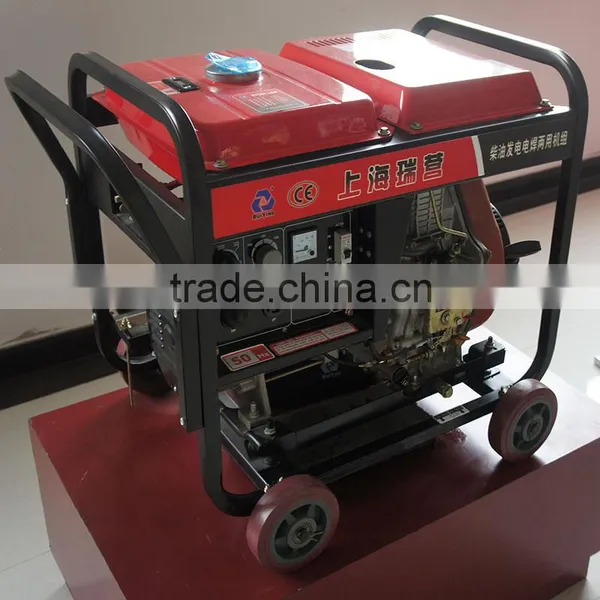

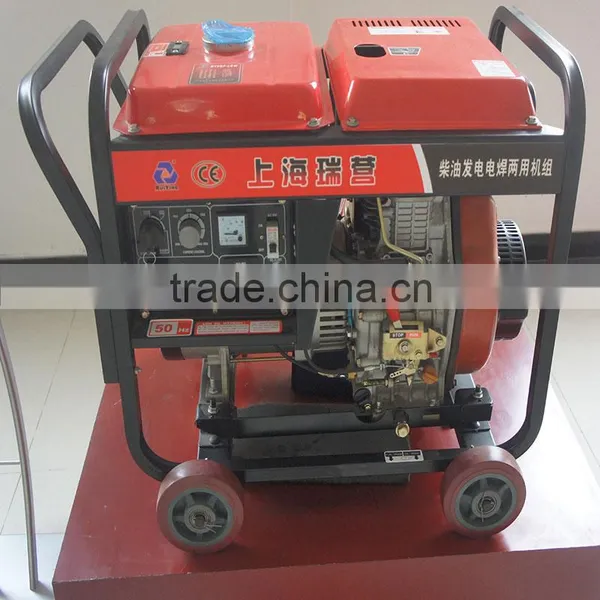

Welding generating set With 4 Wheels RY5GF-LDEW
Model Code | RY5GF-LDEW | |||
ALTERNATOR | Frequency | 50Hz | 60Hz | |
Rated Output Power(kVA) | 2.0 | 2.2 | ||
AC Rated Voltage (V) | 230 | 240 / 120 | ||
AC Rated Current (A) | 18.3 | 20.8 / 41.7 | ||
Phase | Single-phase | |||
DC Output | 12V / 8.3A | |||
Power Factor (cosφ) | 1.0 | |||
ENGINE | Engine Model Code | RY186FE | ||
Engine type | Single-cylinder, 4-stroke, Air-cooled Diesel Engine | |||
Rated Output Power(kW/HP) | 5.7/7.8 | |||
Rated Speed (RPM) | 3000 | 3600 | ||
Displacement (cc) | 406 | |||
Compression Ratio | 19:1 | |||
Starting Method | Electric Starter | |||
Fuel | 0# Diesel (summer)/-10# Diesel (winter) | |||
Fuel tank capacity (L) | 16 | |||
Lubrication Oil | SAE10W30 (above CC grade) | |||
GENERATOR SET | Structure Type | Cart Type | ||
Dimensions (L×W×H) (mm) | 910×530×740 | |||
Packing size (L×W×H) (mm) | 980×570×770 | |||
|
| |||
Net weight (kg) | 175/183 | |||
Low Oil Pressure Alarm System | With | |||
In 20" Container (sets) | 61 | |||
1.One year or 12 months warranty
from the day our customer get the machine, one year or 12 months, the first expired will be valid.
2.One Set Free Wearing Parts
One set wearing partswill be supplied for free,including air filter,oil filter,fuel filter.
3.After Sale Service
Any fault happens,please feel free to contact our after sale service department by:
Tel:0086-21-57581086,0086-21-57581618
how long can I get the generator
The max delivery time of our genset is 15 working days.
where do you send the genset?
At present we have two factories, one in Shanghai and another is in Nanjing, we will arrange the delivery according to production schedule.
what about your warranty period.
our warranty period is one year or 1000 running hours, any problem during this time, you can contact us. we will offer after sale service.
what is your payment term
we prefer 30% deposit in advance, 70% before delivery. L/C is also acceptable.
