ws2801 LPD6803 led pixel light

Specifications

ws2801 LPD6803 led pixel light
1. IP67 complete seal
2. mutli color change
3. 12mm

ws2801 LPD6803 led pixel light



With inside IC, working with LED controller, color changing effects is programmable.



Each Pixel Light can work and give different colors independently, even on one same line, each lamp can be giving a different color, LED controller can control each light singly.



Ideal product for Smart Multiple Color Changing Applications.

Difference between Normal RGB led pixel light and Smart RGB led pixel light:

1. Smart RGB led pixel light is with inside IC, LED controller can control each single light, changing effect is programmable

2. Normal RGB led pixel light is without IC, LED controller can only control all lights together, all lights are changing the same simultaneously

3. LED controllers for both types are different, Smart RGB led pixel light needs programmable led controllers

Specifications:

Color Options	Red/Green/Blue/Yellow/White/Multiple RGB
LED Type	DIP Strawhat F8 LED with Samrt IC inside
Size	Head Diameter 8mm/Hole Diameter 12mm
Housing	Anti-static PVC
Beam Angle	90~140°
Brightness	400mcd-1200mcd
Working Voltage	DC5V
Working Power	0.3W/pc
Working Temperature	-30 ~ 50 centigrade
Protection Grade	IP67-IP68
Life Span	>50,000 Hours
Cable Length	10mm between each 2 lights
Wave L ength	White 560-700NM; Red 620-630NM; Green 510-470 NM; Blue 455-470 NM; Yellow 620-630NM





Features

• With Smart IC inside, each light can be working independently
• Various color options including single color, multiple color and RGB full color
• Injection housing waterproof IP65 - IP68
• Shock or vibration resistant
• Long life span as more than 50,000 hours
• Energy saving and environmental friendly
• Various colors: Red/Green/Blue/Yellow/White/RGB Full Color
• Easy installation for holes with specially designed bayonet

Package

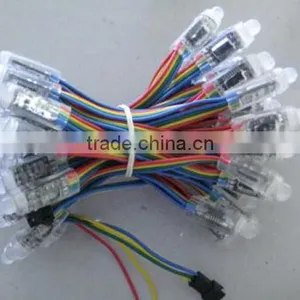

• 40pcs/String
• 200pcs/Anti-static Bag
• 1000pcs/Carton

Application

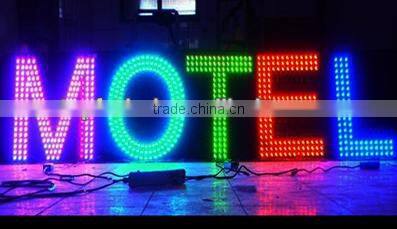

1.Backlight of signal, used in channel letter,signs,light box



2.Stores,supermarkets,mall,hotel board sign



3.Window display lighting



4.Emergency hallway lighting



5.Auditorium walkway lighting



6.Cove lighting



7.Architectural lights for canopy, corridor, window, archway



8.DIY lighting for indoor use



9.Path or contour marking



10.Decorative lighting for festivals, events, shows, exhibitions
