Home > Products > disc harrow > hydraulic pressure offset middle harrow 56pcs

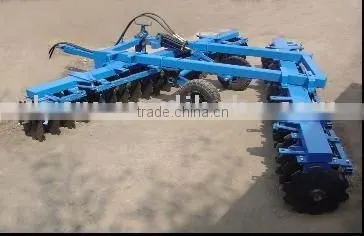

hydraulic pressure offset middle harrow 56pcs
- 500 Set / Sets per Month
- QINGDAO
- T/T
Product Details
| Condition: | New | Type: | Farm Cultivator | Power Type: | Diesel |
| Power(W): | 73-90kw | Certification: | CE | Warranty: | 12months |
| Use: | tillage | Place of Origin: | Shandong, China | Brand Name: | NO |
| Model Number: | 1BJ-6.0 | Weight: | 2520kg | After-sales Service Provided: | No overseas service provided |
Packaging Details
Iron frame
Product Description
Specifications
hydraulic pressure offset middle harrow 56pcs :1:matched power:75-120hp
2:Dia. of disc:560mm
3:working width:4.4-6.0m
hydraulic pressure offset middle harrow 56pcs :
1BJ Double folding wings in hydraulic pressure offset middle harrow : This series are used for crushing clods after tillage in sticky heavy fields ,the plough up, the scarification before seeding and cleaning away stubble of plants before tillage in the light soils .This harrow is featured by reasonable structure , high working efficiency ,strong capability into the soil and scarification ,horizontal hinge, wide width task and narrow width transportation .
Specifications
item | unit | 1BJ-4.4 | 1BJ-5.3 | 1BJ-6.0 |
working width | mm | 4400 | 5300 | 6000 |
working depth | mm | 140 | ||
Dia. Of disc | mm | 560 | ||
No. of disc | pc | 40 | 48 | 56 |
weight | kg | 1750 | 2200 | 2520 |
matched power | Hp | 75-100 | 100-120 | |
productivity | Ha/hr. | 2.7 | 3.3 | 3.5 |
Company Profile
Yucheng Yijia Machinery Co., Ltd. is a specialized manufacturer dealing with the design and production of agricultural machinery. We are a key company designated by the Ministry of Machinery Industry to produce hitching disc harrow, disc plough, blade, break shovel, and broadcast sowing machinery.
Our products are exported to the United States, Australia, France, Germany, Russia, Pakistan, Thailand, Africa and South America, more than 20 countries and regions. Our factory was promoted to be entitled as National 2nd-class Enterprise and got independent export rights. We own rich technical force, advanced equipment, excellent workshop and high prestige, and can supply consumers with reliable products and satisfactory service.
Our certificates and titles
1. A Class Enterprise of the National
2. Agricultural Machinery Spread License issued by the Ministry of Farming, Animal Husbandry and fishery of China
3. Production License of the whole National.
4. Certificate of Measuring and Inspection by National Technical Control Bureau
