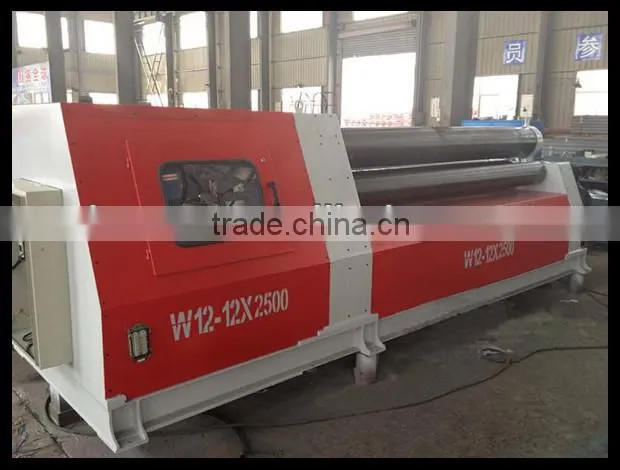

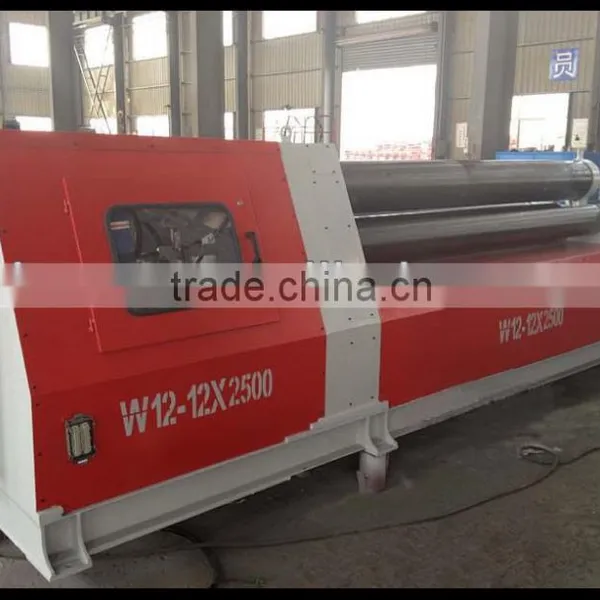

4 roll plate bending machine w12-12*2500,steel plate bending machine

Specifications

4 roll plate bending machine
1.CE,ISO, Certification
2.BOSCH Hydraulic system
3.High performance



4 roll plate bending machine

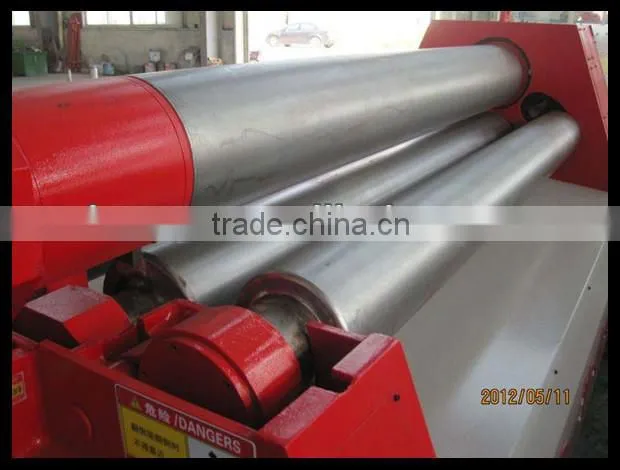

1. FEATURE OF 4 roller plate rolling machine

1.It is a kind of four-roller symmetrical machine with hydraulic pressure. It can shape steel board

 into cylinder, U model etc.

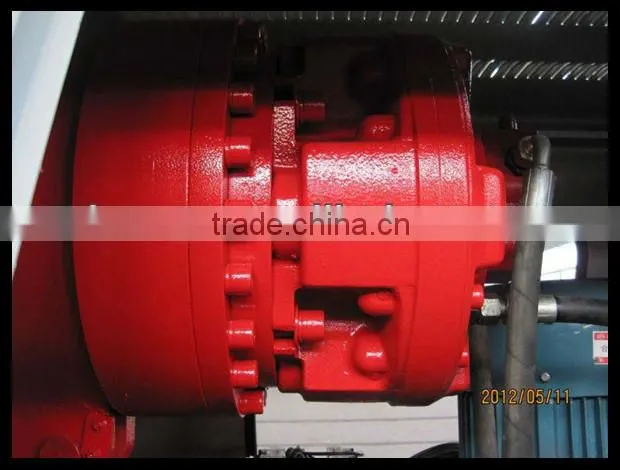

2.The up roller is the main drive.Through the reducer output gear and gear meshing to provide torque for

  coiled sheet.

3.The down roller make the vertical movement by the hydraulic cylinder.

4.Cone rolling is much easier.

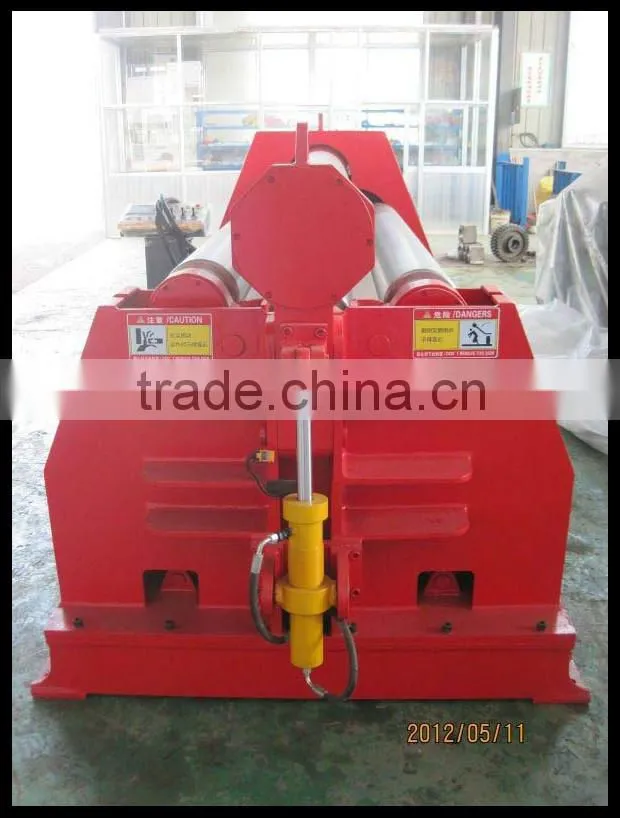

5. Hydraulic drop end for ease of finished cylinder removal, and conical bending device.

6. Emergency system: safety string barrier around the machine and emergency push button.



2. Export standard configuration

No.	Item	Remark
1	Main Motor	Siemens(Germany)

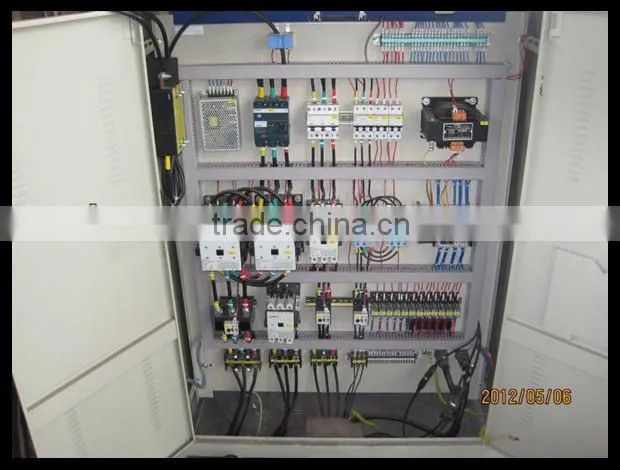

2	Electric parts	Schneider(France)
3	Hydraulic system	Bosch – Rexroth (Germany)
4	Seals	VALQUA(Japan)
5	PLC	OMRON (Japan)
6	Transducer	OMRON (Japan)



3.Technical data

No.	Specification	Unit	Parameter
1	The model	set	W12-12×2500
2	The plate yielding limit	Mpa	245
3	The max bend plate width	mm	2500
4	The max bend plate thickness	mm	12
4	The pre-bend plate thickness	mm	10
5	The diameter of up roller	mm	280
6	The diameter of bottom roller	mm	280
7	The diameter of side rollers	mm	220
8	The bend speed	m/min	5
9	The main motor power	kW	15





















We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC, according to customers' requirements.



We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.



All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.



If u want to know more information about our products, plz feel free to contact us!



Welcome to visit our company!
