Home > Products > Pasteurizer or sterilizer > hot filling beverage juice sterilizer
hot filling beverage juice sterilizer
- 100 Set / Sets per Month
- Shanghai port
- T/T
Product Details
| Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | Beyond |
| Model Number: | 5T/H | Type: | Other, pasteurization | Voltage: | 380V |
| Power(W): | 8kw | Weight: | 1250kg | Dimension(L*W*H): | 2250*2000*2200 |
| Certification: | ISO 9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Description for juice sterilizer :
Field of application:juice beverage and other liquid food industries. The tubular heat exchanger unit is designed for sterilizing and cooling of milk and juice as well as products containing fibers and particles. The sterilization temperature is typically 135~ 140C for 4 seconds holding. .
Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require connection to external service such as product inlet and outlet, water, steam, air and electricity.
The unit comprises:
- Frame
- Set of tubular heat exchangers with:
Regenerating section
Sterilization section
Hot water section
Cooling section
- Balance tank

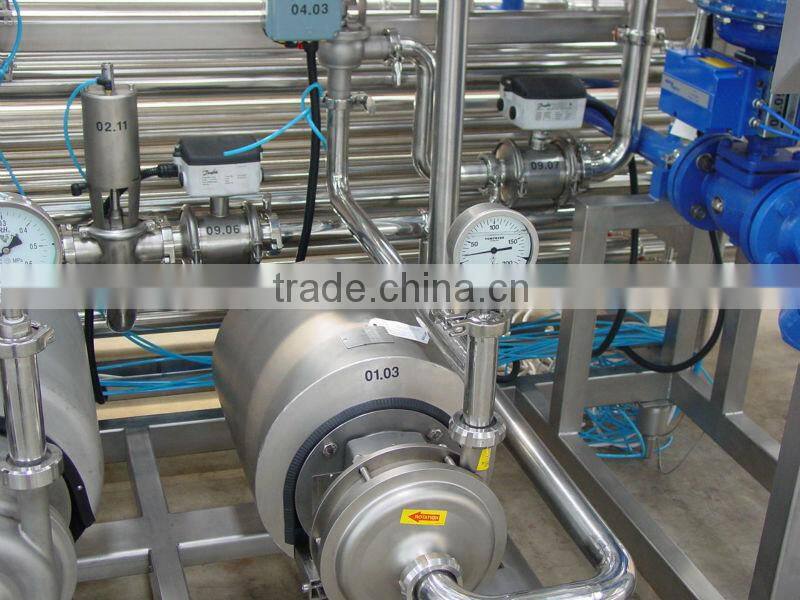

- Product pump
- Holding tube
- Hot water pump

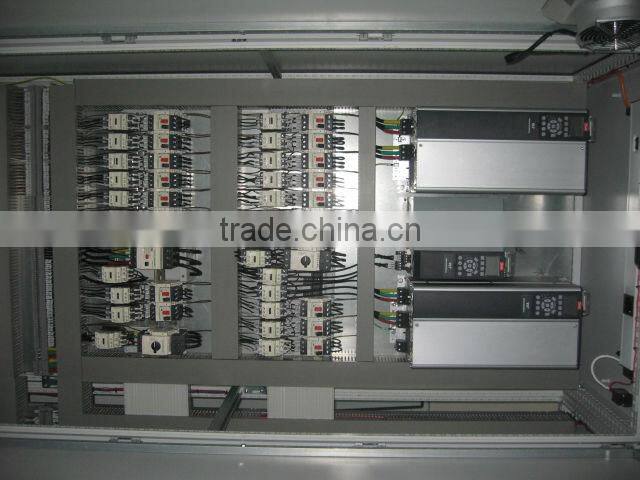

- Control panel with:
PLC controller
Color Human Machine Interface
Alarm for high and low temperature
Alarm for high temperature and low flow in hot water section
Start/stop buttons for pumps
Indicator for and control of pasteurizing temperature
- Set of internal pipes, valves and fittings

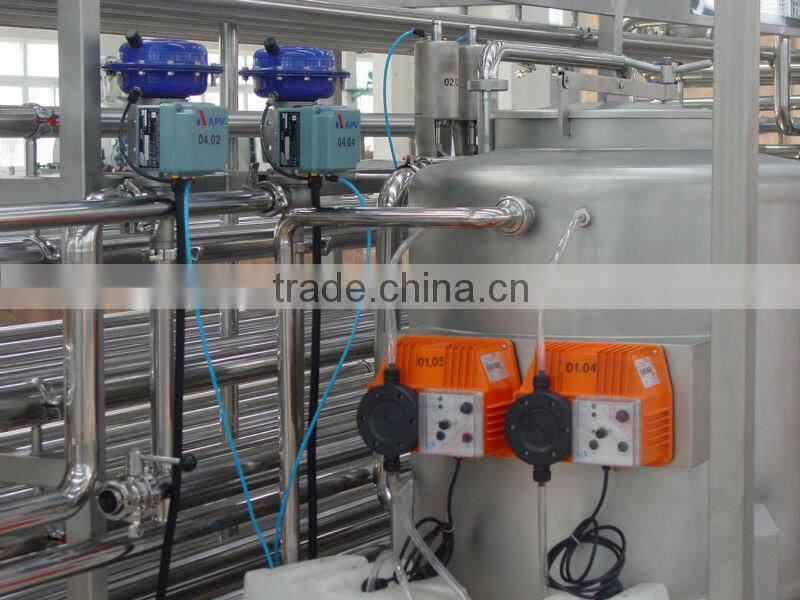

The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.
Parameters
Temperature profile: 5°C→65°C →95°C / 30S→140°C / 4S→25°C
Ice water 1:1 (≤2°C Spare) Cooling water 1:1(30°C Spare)
modle | LG-UHT-1 | LG-UHT-2 | LG-UHT-3 | LG-UHT-4 | LG-UHT-5 |
Production capacity(L/H) | 1000 | 2000 | 3000 | 4000 | 5000 |
Inlet temperature | 5°C | 5°C | 5°C | 5°C | 5°C |
Holding time(s) | 4-15 | 4-15 | 4-15 | 4-15 | 4-15 |
Sterilize temperature | 105~143°C | 105~143°C | 105~143°C | 105~143°C | 105~143°C |
Product outlet temperature | 20 | 20 | 20 | 20 | 20 |
Icewater inlet temperature | ≤2°C | ≤2°C | ≤2°C | ≤2°C | ≤2°C |
Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa | 0.5 MPa | 0.5 MPa |
Steam consumption | ~150Kg/h | ~210Kg/h | ~280Kg/H | ~350Kg/h | ~420Kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 60L/H | 60L/H | 70 L/H |
External dimension (homogenizer excluded) | 3500×2000×2500 | 3500×2000×2500 | 4500×2500×2200 | 5000×2000×2200 | 5000×2000×2200 |
Total weight of machine | 1700kg | 2000Kg | 2200 Kg | 2500Kg | 2800kg |
