Cheap Price 75W 100W 150W 200W 300W Car Inverter Dc to Ac 12V 220V

 Cheap Price 75W 100W 150W 200W 300W Car Inverter Dc to Ac 12V 220V

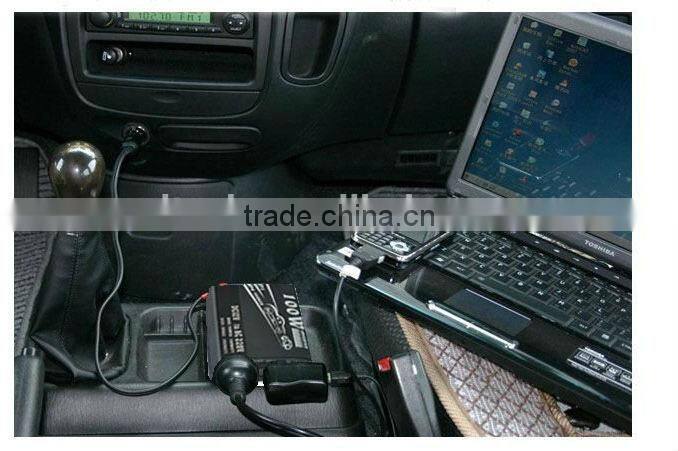

Saiaodi Brand Car Power Inverter can convert DC12V electricity provided the automobile into AC power 110V or 220V, and is widely used with those electric equipments which power consumption are less than 75W 100W 200W 300W, such as cell phone, laptop, portable computer, electric light, energy saving lamp, digital camera, vidicon, usb charger, portable television, CD player, DVD, electric fan, portable fridge, stereo and so on. It is very helpful when your travel, in mobile office, outdoor work and special vehicle, using electricity in the automobile.

Features:

 ·Advanced PWM CPU single chip intellectual control technology, which minish the bulk and weight in a great extent and make circuit work without noise.

·Modified sine wave output.

·Packed with a universal socket adapter, could be used in many countries.

·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

Technical parameters:

1.Input part

1)DC voltage: 12V

2)Voltage range: 10-15VDC or 21-30VDC

3)No load current draw: <0.8

4)Efficiency: >92%

5)DC connection: Cables with cigarette lighter

2.Output part

1)AC voltage: 100-120V or 220-240VAC

2)Continuous power: 100W

3)Surge power: 200W

4)Waveform: Modified sine wave

5)Frequency: 50hz or 60hz

6)AC regulation: 5%

3.Protection part

1)Low voltage alarm: 10DC±0.5V or 20.5±1V

2)Low voltage shut down: 9.5DC±0.5V or 19.5±1V

3)Over load: shut off output

4)Over voltage shut down: 15.5V or 30.5V

5)Over thermal: shut off output automatically

4.Environment part

1)Working temperature: between -10°C and +50°C

2)Working humidity: 20% ~ 90% RH

3)Storage temperature: between -30°C and +70°C

Characteristics of safety:
1. Overload protection, the power will be automatically cut off.
2. The integral fuse provides the safety guarantee.
3. Low voltage warning, the power will be automatically cut off
4. Overvoltage protection, the power will be automatically cut off.
5. Overhumidity protection, the power will be automatically cut off.

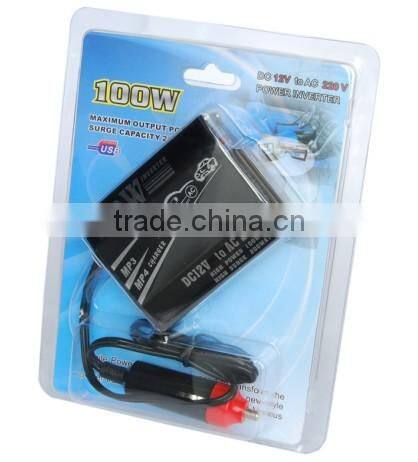

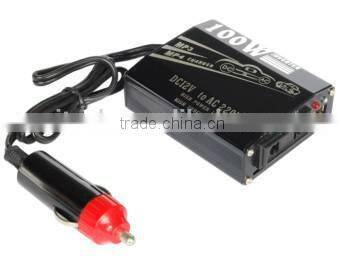

 2 patterns of 100w car inverter, the black one and the white one.
