How to Pack CapsulesHigh efficiency, low consumption
Energy material saving
Easy for operating
CE
Video:

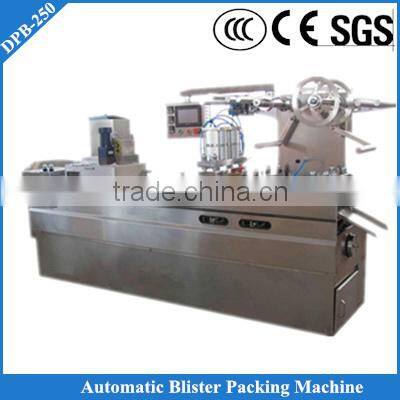

DPB-250-http://youtu.be/oDvYOk4BVPY

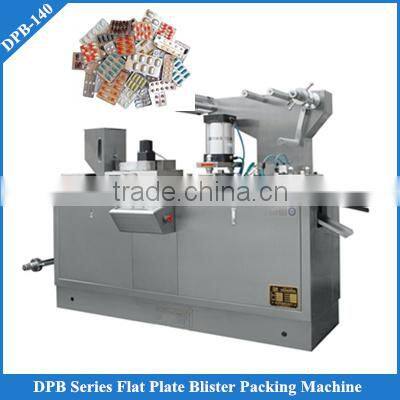

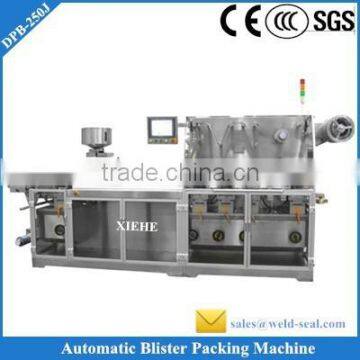

How to Pack Capsules and Pills|Flat Plate Automatic Blister Packing Machine DPP-140
Application:
1. This machine mainly be used in packing pharaceutical products, such as tablets, pills, capsules and drugs.
2. This packaging way(blister-pack) can impove product's quality, enhance product's additional value. Capsules Automatic Blister Packing Machine
Feature:
1. Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
2. With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test ,failure automatic debug and alarm, automatic protection and stop running.
3. The machine station module type design of level frame, good sight, safe and convenient operation.
4. Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.
5. PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability. Flat Plate Automatic Blister Packing Machine
6. The special design of moulds in rectangle shape, ladder type fixing, provide much convenience and easy to moulds replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.

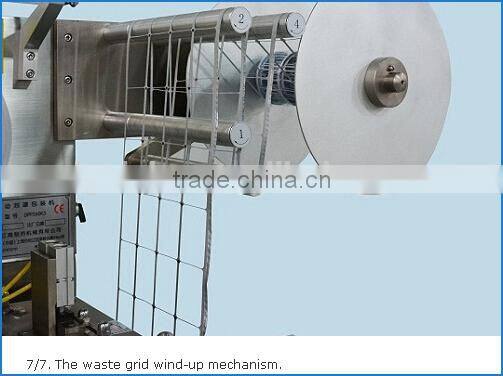

7. Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.

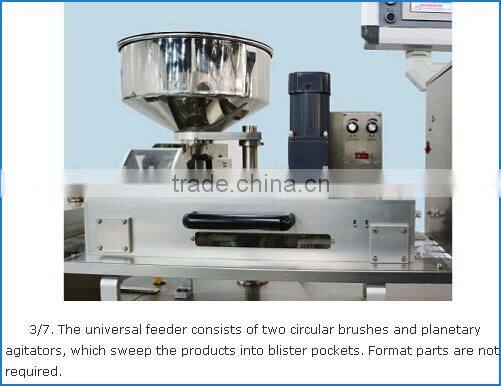

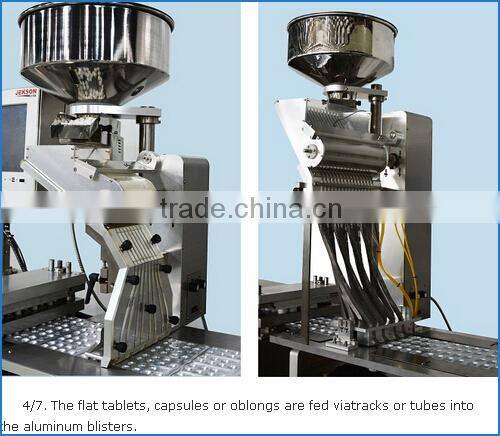

8. Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)
9. The machine has been designed into separated body, which is easily move into lifts or workshops.
Parameters for DPB-100 and DPB-250: How to Pack Capsules
Model | DPB-100 | DPB-140 |
Punch Frequency (Times/Min) | 8-35 | 8-35 |
Production Capacity (Blister/hour) | 2100 (Standard 80*57) | 4200 (Standard 80*57) |
Max Forming Area & Depth (mm) | 105*60*10 | 130*110*20 |
Stroke (mm) | 20-70 | 20-120 |
Standard Blister Size (mm) | 80*57, 80*35, 95*65, 105*42, 105*55 (customized) | |
Air Supply | 0.5-0.7 MPa 0.15 CBM/min | |
Total Power | 1.8 KW | 3.2 KW |
Voltage | 220/380 V 50 Hz | 220/380 V 50 Hz |
Main Motor Power | 0.55 KW | 0.75 KW |
PVC Thickness (mm) | 0.15-0.5*115 | 0.15-0.5-140 |
PTP Aluminum Foil Thickness | 0.02-0.035*115 | 0.02-0.035*140 |
Dialytic Paper Thickness (mm) | 50-100 g/m2*115 | 50-100 g/m2*140 |
Mould Cooling | Cold Water | |
Dimension (mm) | 1600*500*1200 | 2300*560*1410 |
Weight (KG) | 600 | 1000 |
Details:

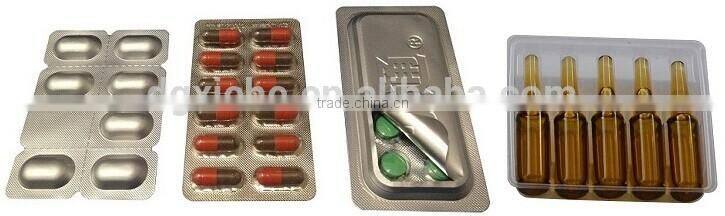

Blister Packing Samples:

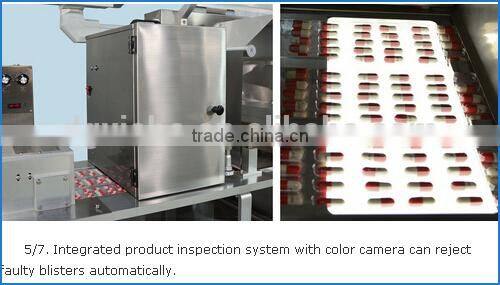

1. Product detecting and rejecting functions: check out the pills of which the rate of defect is above 15%, half-filled capsules and empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing and displaying the position and situation of the waste plate on the main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point reject and continuous reject.
5. System protective function: the system will alarm if troubles happen.
Xiehe provides you with the most thoughtful services | |
1 | One year warranty and life long maintenance |
2 | Free training and instruction |
3 | Free replacements |
4. | 24 hours online service |
5 | Sending technical staff overseas |
