Grinding Mill for Powder Coating Production Line

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao China

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Product Type:	Other, Powder Coating	Place of Origin:	Shandong, China	Brand Name:	Yuanli
Model Number:	MF N Series	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Grinding Mill for Powder Coating Production Line

MF N Grinding System Series

Application:

This series of grinding system is classified as ACM grinding machine, which is widely used in powder coating production line. It can also be used in other industries such as pharmacy, pigment, food, chemicals and ceramic.

Main characteristic:

1. Openable main grinding case for easy access to inside parts for cleaning and maintenance

2. Openable top cap by means of electromotor for easy access to internal parts of cleaning

3. Perfect particle size distribution

4. All parts to be in contact with powder coating made from stainless steel

5. Equipped with famous brand electrical parts

6. Equipped with tracking suspended sieve

7. Classifier never stick with powder

8. Two kinds of pulse time setting

Main Technical Parameter:

Main specification	Model
Main specification	MF-10N	MF-15S	MF-20/25S	MF-30S	MF-35S	MF-40/50S	MF-60S
Main motor power(kw)	7.5	11	15	22	22	30/37	45 2
Pin disk speed(rpm)	7000	6500	6000/4500	4500	4000	4000	2900
Classifier motor power(kw)	1.1	2.2	3	3	4	4	4
Classifier speed(kw)	0~2800	0~2800	0~2800	0~2800	0~2800	0~2800	0~2800
Feeding motor power(kw)	0.55	0.55	0.55	0.55	0.75	0.75	0.75
Grinder cover motor power(kw)		0.18	0.18	0.18	0.25	0.25
Discharge motor power(kw)	0.37	0.37	0.37	0.37	0.37	0.37	0.37
Rotary sieve motor power(kw)	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Blower motor power(kw)	7.5	11	15/22	22	30	30/37	45
Blower flow rate(m3/min)	20	30	40/70	70	76	80
Seperating efficiency	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%	≥98%
Particle size MESH	120~350	120~350	120~350	120~350	120~350	120~350	120~350
Capacity(kg/h)	100~150	150~200	200~300/300~400	400~500	500~600	600~800	800~1000

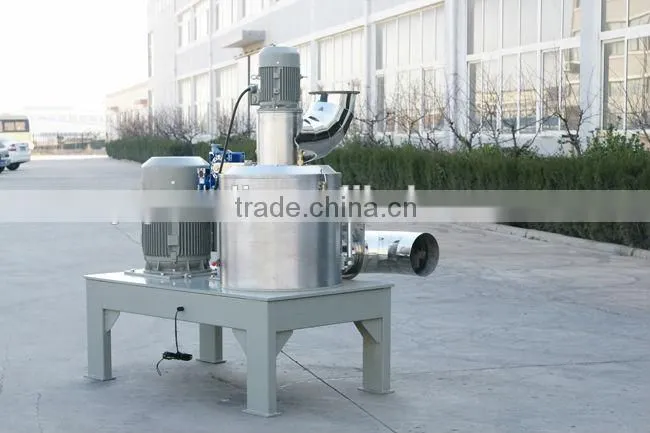

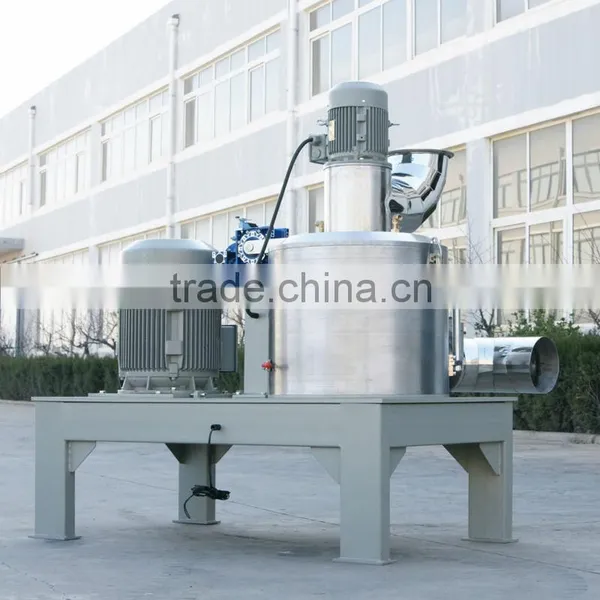

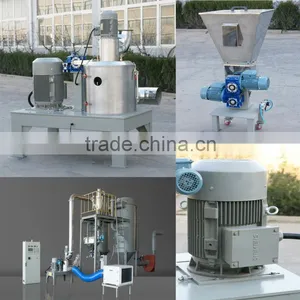

Machine Pic

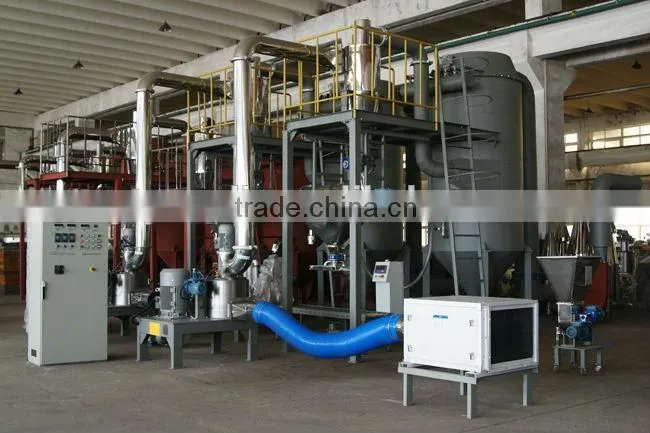

Workshop

We started to research and manufacture electrostatic powder coating equipments according to our customers' requirement since our company establish in 1988.

As the first and pioneer of powder coating production machinery supplier in China, Yantai Yuanli Machinery Manufacturing Co., Ltd. with very good reputation in domestic and overseas, supplying high quality machines and services.

Our advantages:

1. Formulation Provided

Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.

2. Manufacturing Technique

We make machining part in our own factory to control the quality of the machine parts to make sure the machine's quality. We have a presence in over 15 countries and are a technology driven organization with an extensive staff of highly experienced R&D and technical service personnel in Asia, Europe and the Americas.

3. After-sale Service

We can provide a variety of services to our customers, such as turkey project, our engineer abroad installation service, technical support online service, on-site training service, long-term maintenance service, spare parts replacement & repair service.

We sincerely invite you to visit our factory, thx!
