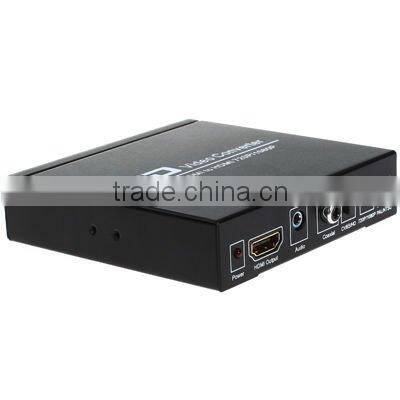

AV+HDMI to HDMI CONVERTER, Adopting DCDI Processing and Scaler Video Processing Technology.

Specifications

Product function:

1. HDMI output interface: connect with high definition TV or high definition projector
HDMI output format:720P@50/60Hz, 1080P@50/60HZ
Audio output format: Digital coaxial audio, analog stereo audio
2. CVBS input interface: DVD, set top box, PS2, WII, NGC and other players.
CVBS input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N
3. HDMI input format: 480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz
Compatible with several DVI format: 800X600,1024X768,1280X1024,1360X768, 1680X1050,1920X1080 etc.
4. 3.5mm audio interface: Connect with analog audio amplifier or headphones input interface
5. Digital coaxial output: Connect with digital audio amplifier.

Features:

1. Adopting new generation and low power consumption digital chip processing.
2. Using 3D compensation technology.
3. Adopting DCDI processing and Scaler video processing technology
5. Adopting I2S technology. Through I2S technology, stack the L/R analog audio input signal to HDMI interface,  make the HDMI line transport audio conveniently. Eliminate the analog audio transmission line of interference.
6. Decoding the HDMI digital audio into independent SPDIF coaxial audio and Analog audio through digital decoding technology
7. Adopting HDCP treaty processing technology. Input can decode, remove the HDCP agreement after HDCP, send out without HDCP HDMI signals, convenient back-end without HDCP decoding display device to receive.
8. Standard converting and video processing technology
a. Convert PAL, NTSC standard into HDMI@50/60Hz
b. Convert 50Hz HDMI signal into 60Hz HDMI signal
c. Convert 60Hz HDMI signal into 50HZ HDMI signal

Package Included:

1 x AV + HDMI to HDMI Converter

1 x 5V/1A Power

1 x User Manual (EN)
