HDMI Splitter 1x2, Operating Frequency up to 225MHz

Specifications

INTRODUCTION

1 × 2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers HD video solution for super market ; shopping m all ; HDTV, STB, DVD , projector factory; data control center; information distribution; conference room presentation; education and training ; corporation show room ; home theater , etc.

SPECIFICATIONS:

CONNECTION

a ) . Connect the input source and output displays to the HDMI Splitter .

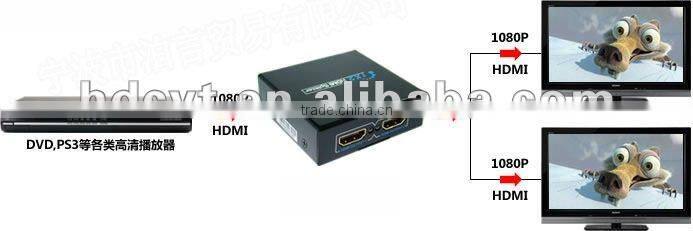

*Please refer to the Connection Image.

b ) . Connect the DC 5V power supply to the splitter. Please kindly note that power supply with higher voltage may damage the splitter.

c) . When input source and output displays are connected and turned on, the corresponding LED will light.

Attention: In order to protect the splitter and your devices, p lease make sure the splitter is

powered off before you attach in or extract video source and displays . Please insert and

extract HDMI cables gently.

INTERFACE

1. Power LED               2. Power Supply Socket

3. HDMI Input             4. LED of HDMI Input

5. HDMI1 Output           6. LED of HDMI1 Output

7. LED of HDMI2 Output     8. HDMI2 Output
