CNC Laser Cutting Home Textile with Conveyor Table

Wooden Case Package

Specifications

cnc laser cutting home textile
ntinuous cut long pattern
2.vacuum conveyor
3.clean cut edge
4.auto feeding

CNC Laser Cutting Home Textile with Conveyor Table

As the leader of laser solution for flexible fabrics, GOLDEN LASER developed Co2 Flat Bed laser cutting machine for home textile, upholstery fabric, garment, cloth and industrial fabric cutting.

Integrated laser cutting, precision unwinding and rewinding, auto marker making, continuous cutting overlong material, auto-recognition cutting, marking and order management.

At present, GOLDEN LASER has developed more than 30 models of laser cutting machines for fabrics and flexible materials. There are 4 series:
(1) Synchronous Belt Series: Synchronous belt transmission with accurate transmission. Stable performance, high efficiency, lubrication-free and easy maintenance. Compared with other laser cutting machines, it has lower cost.
(2) Galvanometer Series: High speed Galvo scanner. Processing speed can reach up to 8000mm/s. Especially suitable for high speed processing of small images.
(3) Galvanometer with X, Y Axis Series: Combining X, Y laser head cutting and Galvo head engraving. No need re-locating. High precision, high efficiency and more convenient.
(4) Double Y-axis Series: with flying route and double Y-axis structure (principal axis and auxiliary axis). The double Y-axis share the weight of gantry and can achieve large format high speed cutting (1200mm/s).

Laser Cutting Machine, Brief Introduction

Compared with the traditional knife processing, laser is advanced CNC technology and a unique non-contact processing, working without any graphical limits and not produce any mechanical deformation. Laser processing has the advantages of high precision, high speed, no fraying, and high quality results. In addition, applicability of laser processing is more flexible. Laser can do cutting, engraving, hollowing, punching and other processing for a variety of textile, fabrics, garment, leather, fur, shoe, plush toy, home textile, upholstery, carpet, automotive interior, tent, etc. Laser processing technology is more sophisticated, creative and unique.

Laser Cutting Machine Features

--Various working areas available

--No tool wear, non-contact processing

--High precision, high speed and accuracy of repeatability

--Smooth and clean cutting edges; no required reworking

--No fraying of fabric, no deformation of fabric

--Automated processing with conveyor and feeding systems

--Processing of very large formats by edgeless continuation of cuts possible

--Simple production via a PC design program

--Complete exhaust and filtering of cutting emissions possible

--Optional marking systems

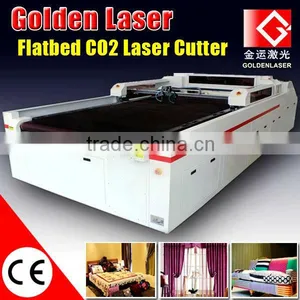

GOLDEN LASER - Flatbed CO2 Laser Cutting Machine

Laser Cutting Machine Description

1. Open-type wide area laser cutting bed. Working area of 2500mmX3000mm

2. Vacuum absorb conveyor working table with auto-feeding system, it is capable of fast and continuous cutting of textile fabrics.

3. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding and cutting.

4. Smart nesting software is optional, it can fast layout cutting graphics in the most material-saving way.

5. CNC 5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or online operation.

6. Laser heads are synchronized with exhaust system so that can totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine.

7. You can print to the laser from a variety of programs, including CorelDraw, AutoCAD and Adobe software.

8. Equipped with optic CCD camera recognition system, it is able to automatic finding edges and cutting.

Laser Cutting Machine Application Field

Suitable for cutting a variety of textiles and industrial fabrics.

1.Industrial fabrics: filter cloth, bolting cloth, nonwoven, glass fiber, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), coated fabric, PVC fabric, sponge, insulating material and other industrial flexible materials.

2.Home furnishing fabrics: furniture fabrics, sofa fabric, upholstery, curtain, blinds, carpet, mat, floor rug, felt, mattress, doormat, valance, tablecloth, bed sheet, bedspread, counterpane, dust cover, etc.

3.Garment fabrics: fast fashion garment, sportswear, swimwear, business suit, diving suit, exposure suit, stripes&plaids fabric, synthetic leather, genuine leather, etc.

4.Outdoor products: tent & membrane structure, PE/PVC/TPU/EVA/Oxford fabric, polyester, nylon, PVC coated fabric, PTFE, ETFE, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, marquee, canopy, awning, etc.

5.Carpet and Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.

6.Non-woven fabrics: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.

Laser Cutting Machine Technical Parameter

Model NO.	CJG-160300LD	CJG-250300LD	CJG-320500LD	CJG-320800LD
Working area	1600X3000mm	2500X3000mm	3200X5000mm	3200X8000mm
Laser Power	CO2 DC Glass Laser Tube 80W / 100W / 130W / 150W CO2 RF Metal Laser Tube 100W / 150W / 200W / 275W
Working Table	Vacuum absorb conveyor working table
Repeating Positioning Accuracy	±0.5mm
Cutting Speed	0-36000mm/min
Motion System	Offline Servo motion control system, 5 inches LCD display
Cooling System	Constant temperature water chiller
Power Supply	AC 220V±5% /50Hz
Format Support	AI, BMP, PLT, DXF, DWG, etc.
Standard Collocation	550W upper exhaust fans, 3000W nether exhaust fans, Mini air compressor
Optional Collocation	Auto-feeding system, Auto-recognition system, Auto nesting software, Marking system, Double laser head
Note: As products are constantly updated, please contact us for latest specifications.



Wide ranges of Cutting Area optional 1m X 0.6m, 1.4 X 0.9m, 1.6m X 1m, 1.8m X 1m, 1.6 X 2.5m, 1.6m X 3m, 2.1m X 3m, 2.5m X 3m, 2.1m X 6m , 3mX 4m, 3m X 6m, 3.2m X 5m, 3.2m X 8m, etc.

Price list, brochures, videos, samples-making and detail specifications are available.

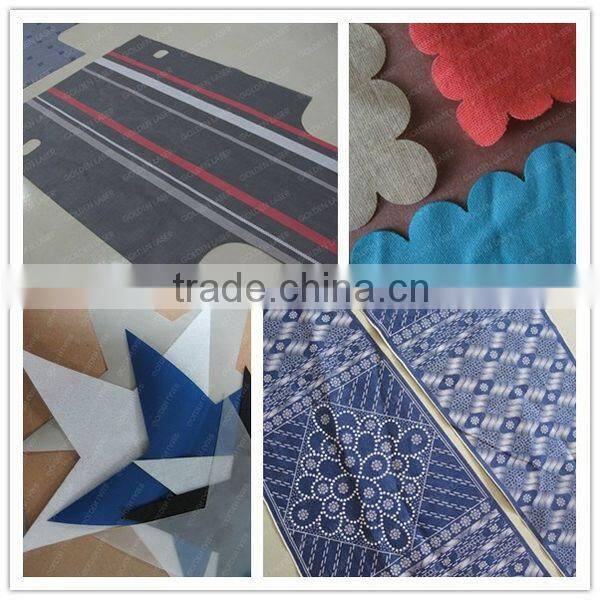

Laser Cutting Samples

Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

For the big machine, we will order the special container to load

Golden Laser - Golden Service

Installation Service

Installation Services are available with all GOLDEN LASER machines. We will dispatch technician to The Buyer's factory for installation and preoperation of machines.

Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then ship out the machine.

The whole set of machine guarantee is 1 year. We offer flexible extended warranties to our clients if needed.

Standardization of Service “212"

2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days

"1+6” Complete Services Specification

Any of laser machines purchased from Golden Laser for installation or maintenance, we provide “1+6” complete services.

One Installation Service “one-time" OK

Six Complete Services

1. Machinery and circuit check
Explain the functions of machine parts and ensure machine’s long-term operation.

2. Operating guide
Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.

3. Machine maintenance Labels Laser Die Cutting Machine
Explain the maintenance of machine parts to extend product life and save the energy consumption

4. Product Process guide
Depending on different materials, do testing to get optimal processing parameters to ensure the best quality of products.

5. Site clean-up services
Clean the customer site when service is completed.

6. Customer evaluation
Customers give the relevant comments and rating about service and installation personnel.

Why Golden Laser

© Laser innovative application service platform

© Leading laser solution provider

© More than 12 years experience in laser industry

© Laser-World of Photonics Exhibitor since 2005

© Strict quality control and exclusive after-sales service team

© Providing customized laser machines, seeking users & distributors globally



Golden Laser offers different type (Co2, YAG, Fiber) of laser machines and provides a comprehensive range of laser cutting, laser engraving, laser marking and laser welding systems. Whether you need a cost-effective machine or a more sophisticated laser solution, from the economical models to the large format automated laser processing systems, even customized laser systems, Golden Laser has the laser solutions that satisfy your requirements.
