Specifications
Portable laser marking1>10W/20W fiber laser
2>high speed galvo scanning system
3>maintenance free
4>fine and precision
Portable laser marking on metal plating coating material
Small, compact solid-state fiber laser marking improves laser marking results, reliability and performance
Advantages of the fiber laser include…
- Fully integrated design merges the individual components of the solid-state laser into a single functional element.
- Eliminates the need for periodic optics alignment as the cavity optics are an integral part of the fiber.
- Eliminates the need for periodic inspection of the optical surfaces including the cavity mirrors, Q-switch and rod ends.
- Eliminates the possibility of damage to intracavity optics from contaminated surfaces.
- Projected diode lifetime of over 100,000 hours for the fiber laser is significantly longer than the YAG laser for an overall lower cost of operation.
- More efficient diode pumping provides lower utility cost.
- The Ytterbium fiber laser provides the user with a zero-maintenance, highly reliable laser source.

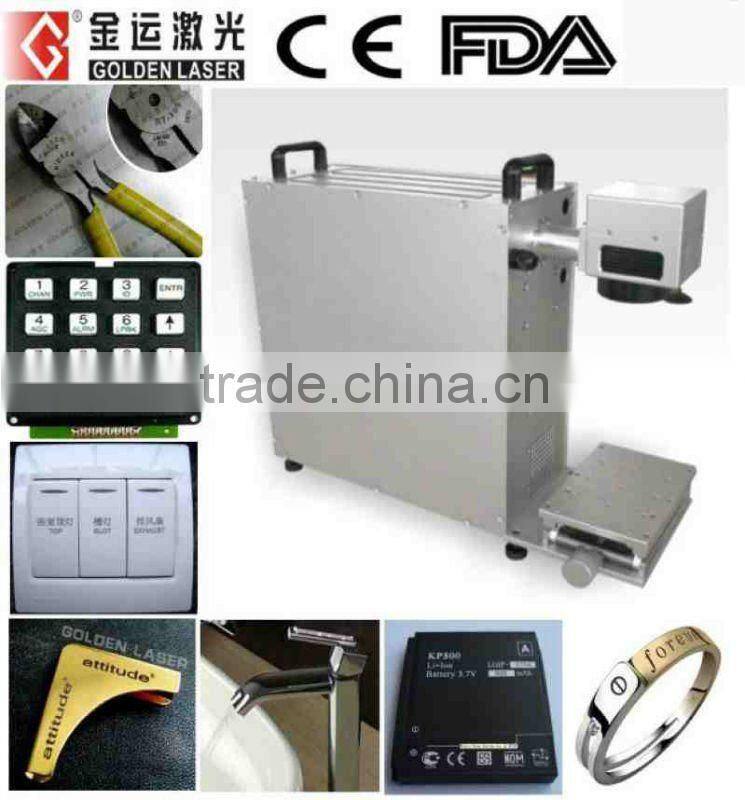

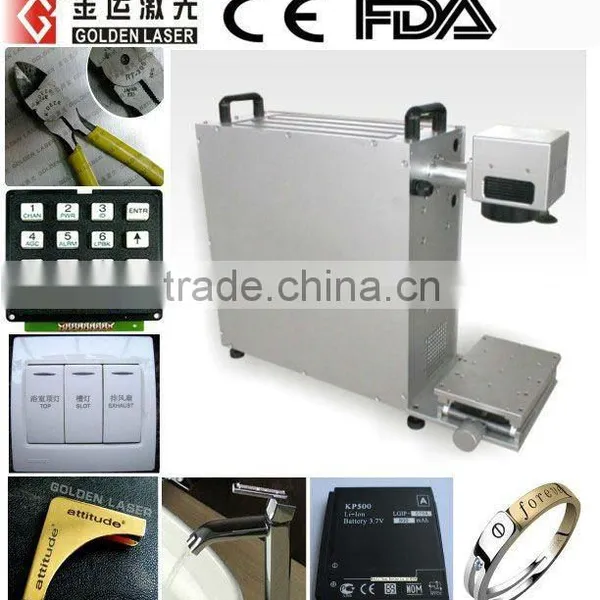

Portable Fiber Laser Marking Machine GDBGX-10 | |
| |
Machine Features: | |
1.Taking use of integrated design of whole structure, equipped with automatic focusing system. The operation is very humanized. 2.Adopting the imported original IPG fiber laser form Germany. Good beam quality. High photoelectric conversion efficiency. Long working life (100,000 hours). 3.Its beam quality is much better than traditional solid laser marking machine. As the base module(TEM00) output, diameter of focal spot is less than 20um. Divergence angle is 1/4 of pumped semiconductor laser. Particularly applicable to fine and precision marking. 4.Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast. 5.Long lifetime, small dimension, apply to work in the narrow environment. 6.Processing speed is 3 or 5 times faster than traditional marker. | |

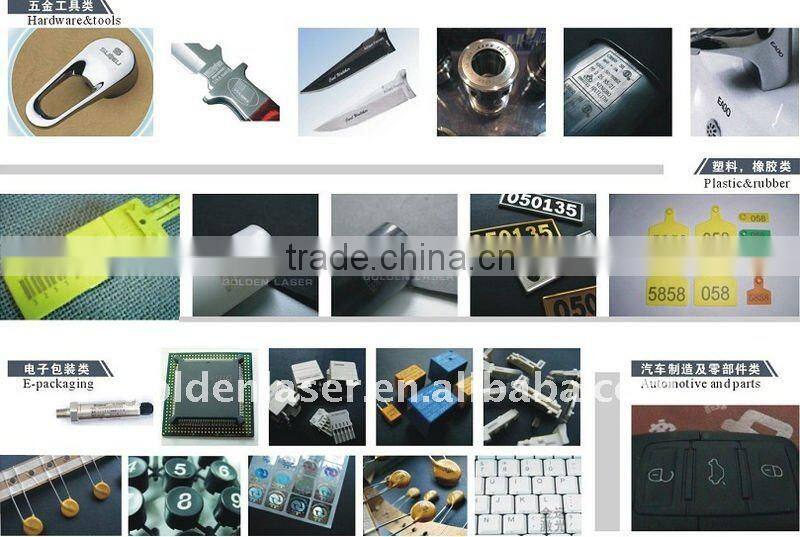

Applied industry and materials: | |
Materials: most of metal (including precious metals), engineering plastic, plating coating materials, spray material, plastic, rubber, epoxy resin, ceramic, and other materials. Industry: The phone keypad keys, translucent plastic keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks and watches, jewellery, automobile accessories, bags decorated clasps, cookers, stainless steel products and other industries. | |
Technical Parameter: | |
Laser generator | Fiber Laser |
Laser power | 10W |
Standard marking area | 70mm×70mm |
Optional marking area | 35mm×35mm, 130mm×130mm |
Working table | Manuel up and down aluminium alloy working table |
Marking speed | 0-7000mm/s |
Cooling system | Air cooling |
Control system | Digital offline control |
Galvo positioning accuracy | ±0.01mm |
Power supply | AC220V ± 5% / 50/60Hz |
Format support | AI, BMP, PLT, DXF, DST, etc. |
Optional | 20W fiber laser Rotary device for cylinder marking |

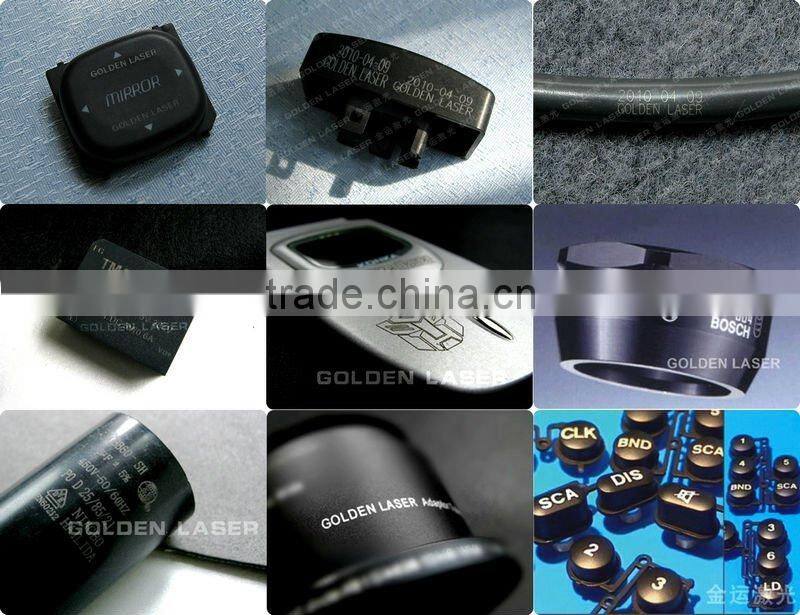

Laser Marking Samples:
