drawing machine and annealer
| We are the professional manufacturer have more than 20 years of experience in making all kinds of wire and cable machinery,realize the wire from drawing to extruding. | |
| we are the factory not the trade company,Machine’s body and other key components and parts are produced by our own factory, quality is reliable.,and we can control .the price;.the quality and .the delivery time; | |
| Drawing wire as you want | Cu,Al,Al-alloy,S.S,etc. |
| We have | Single /multi wire drawing machine(2 wires, 4 wires,16 wires, 20 wires) |
| After drawing | We have annealing,stranding,extruding machine |
| our company address | near to shanghai: Juqiao Economic Development Zone, Tangqiao Town,Zhangjiagang City, Jiangsu Province, China. |
| to see more products | http://jcjx.en.china.cn |
JCJX-DT21/8 8 heads copper wire drawing machin and annealere
1. Main usage
This type is used for drawing and annealing 8 copper wires from 1.0-1.8mm to 0.1-0.4mm.Easy to maintain, simple to operate and low noise, high efficiency. HS CODE 84633000
2.Technical parameter:
Machine type | JCJX-DT21/8 |
Inverter control | Dual inverter control |
Drawing dies No./max. | 21×8 |
Inlet diameter | Ø 1.0- 1.8mm |
Out diameter | Ø0.1- 0.4mm |
Drawing line speed | 1800mpm/max |
Slip ratio of m/c | 20%+16% |
Frame | Welded by steel plate |
Capstan | Zirconium oxide porcelain |
Main motor | 90kw(DC) |
Spooler motor | 11kw(DC) |
Annealing voltage | DC 0-60V |
Annealing current | DC 1500A |
Protection type | Steam or nitrogen |
Spool bobbin size | Ø 500mm/Ø 630mm OR according to customers |
Transmission type | By timing belts |
Spooler control | PID Synchronous spooler |
Detecting device | Weight balance by swing arm |
Tension control | Weight balance type |
Lubrication type | Spray type |
Brake | Magnetic brake |
Power source | 380v 50/60 HZ or others |
The beautiful appearance Zirconium oxide porcelain-----Capstan

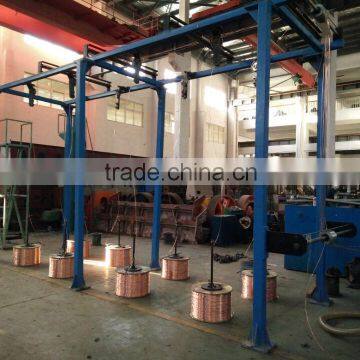

Pneumatic take-up machine 8 Heads pay-off

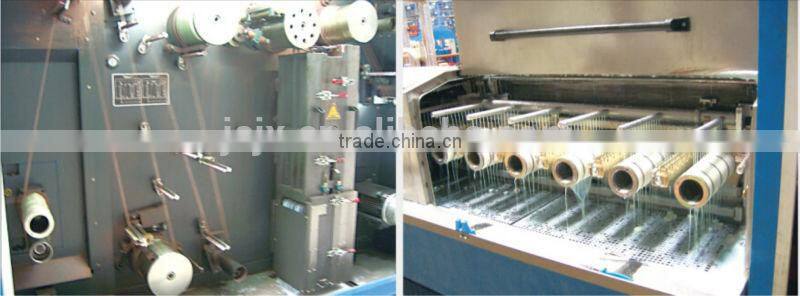

Steam or nitrogen annealing Spray type Lubrication

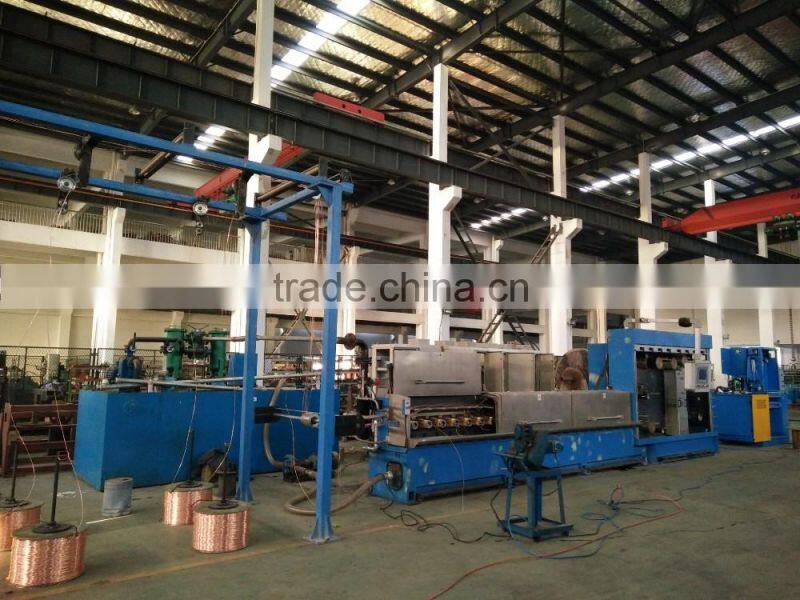

The whole production line
Components :
1. Bobbin or Coiler pay-off
2. Main drawing machine
3. Continuous annealer machine
4. Tension control device
5. Dual-spooler automatic take-up or single bobbin automatic take up
6. Electric control system
7. Gearbox lubrication system
8. Drawing liquid supplying system
9. Annealing water supplying system
10. Pointing and threading machine
11. Steam generator
3.Machine's advantage :
1). Multi wire, high efficiency
2). Third-section-annealing system, outside electrically neutral (no current flow to other unit)
Space saving 50%
Electric saving 10%
Quick die change system for saving dies quantity 30%.
High production efficiency for 2 wires, 4 wires,16 wires, 20 wires
3). Machine’s body and other key components and parts are produced by our own factory, quality is reliable.
4.Take care of your products:
5.Our advantage:
we have our own factory and we can custom the machine according to you requirements ,we also
can control :
1.the price;
2.the quality;
3.the delivery time;
Jiacheng has some world famous parts suppliers,machines have high price prefprmance ratio;Body and other key components are produced by our own factory,quality is reliable; Jiacheng has more than 20 years of experiences in wire and cable machine;Driving to Shanghai,we only need one and a half hours;
Pre-sale training:
in order to guarantee the customers are able fully to operate the machine,if the customer need,
we can help customer training,includes:
rrect operationg mode;
rrect maintenance way;
3.remove simple problem;
our company for our machine product,since the shipment date,our company free after-sale
maintenance service guarantee period is:
1.1 year for mechanical part;
2.6 months for electrical part;
Many years service on ALIBABA, so please rest assured to us, we will give you the best machine and the best service.
