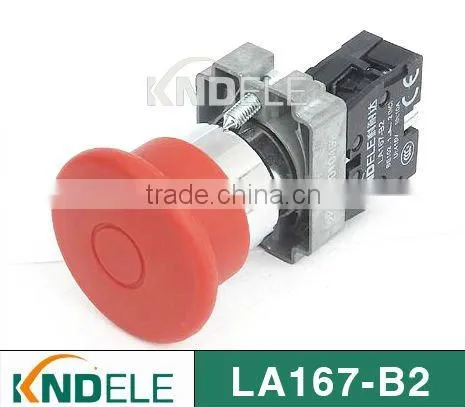

40mm Waterproof Red Mushroom Push on Push off Switch ,grade A ,silver Contact LA167-B2-BT,B2-BX
US$ 0.2 - 1
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND push on push off switch
Model Number:
push on push off switch B2-BT,B2-BX
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof Rotary Switch,2 or 3 Position Selector Switch With Long Handle Silver Contact Grade A LA167-B2-BJNegotiableMOQ: 10 Pieces -
Waterproof Rotary Switch,2 or 3 Position Selector Switches With Light Led Silver Contact Grade A LA167-B2-BKNegotiableMOQ: 10 Pieces
-
Flat Waterproof Electrical Push Button Switch With LED ,silver Contact Grade A LA167-B2-BWNegotiableMOQ: 10 Pieces
-
Flat Waterproof Electrical Push Button Switch With LED Auto-lock,silver Contact Grade A LA167-B2-BZNegotiableMOQ: 10 Pieces
-
22mm Led Button Indicator Grade A LA167-B2-BVNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
KND push on push off switch
Model Number
push on push off switch B2-BT,B2-BX
Protection Level
IP40 IP65
Max. Current
10A
Max. Voltage
415V
Specifications
1. push on push off switch2. push button switch
CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description
We are a manufacturing push button switch organization.push button switch is our main product.We produce all kinds of push button switch . These are our company's push on push off switch models in the picture , you can add X before the push on push off switch models. If you want one push on push off switch for sample ,please contact us .thank you.
| push on push off switch Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| push on push off switch Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| push on push off switch Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |

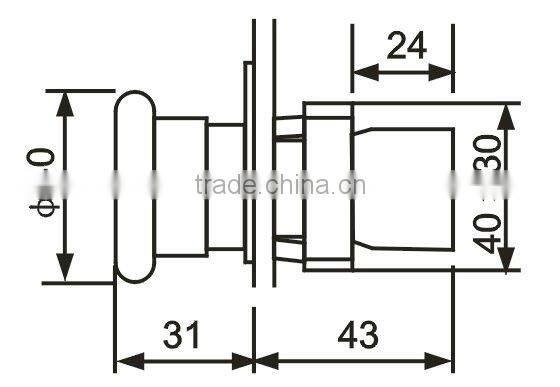

| Elucidation | Color | Contact Type | Reference | |
| | 40mm | 1NC | B2-BT42 |
| 40mm | 1NO+1NC | B2-BT45 | ||
| 60mm | 1NC | B2-BX42 | ||
| 60mm | 1NO+1NC | B2-BX45 | ||
| 1 The finger of comfort press to press | ||||||
| position and switch to turn peration | ||||||
| 2 The function identify | ||||||
| 3 The auto aonnect ground | ||||||
| 4 Defend the finger get an electric | ||||||
| shock a design | ||||||
| Plate chrome metals a head and install a base | ||||||
| The quakeproof bolt carry son | ||||||
| Hard ,credibility ,as long as | ||||||
| 3000000time machine life span | ||||||
| As long as 50000 hours of the service life | ||||||
| of the LED indicator | ||||||
| The button head hold antomatic is in open the | ||||||
| bore | ||||||
| The button head revolve certain angle,card go | ||||||
| into touch some base | ||||||
| 2metal bolt fix quake proof | ||||||
| The anto connect ground | ||||||
| The open type connect line to carry and have | ||||||
| never need to prepare loose bolt | ||||||
| Electricity function | ||||||
| Most can pack 1-6 pay to touch some mold piece | ||||||
Our push on push off switch have waterproof function
Our push button switch use the fireproof material which can protact it from burning
Our push button switch screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The push button switch contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
