Home > Products > Ex junction box > Stainless Steel Explosion Proof Junction Box

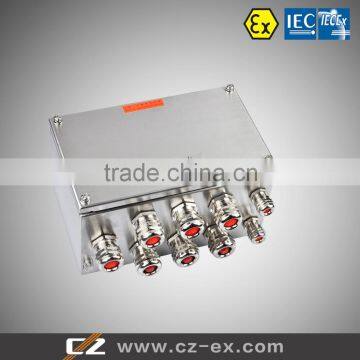

Stainless Steel Explosion Proof Junction Box

FOB Price

USD $180 - $2,000 / Set

1 Set(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	CZ
Model Number	CZ1320e	Protection Level	IP66
Type	Junction Box	External Size	Optional

Product Description

Specification and Features:

Main Technical Data:

Ex mark	Ex e IIC T4/T5/T6 Gb DIP A21 TA T4/T5/T6
Intended use	Can be used in zone 0, zone 1, zone 2, zone 20 zone 21 and zone 22
Degree of protection	IP66
Rated voltage	max 1100V
Rated current	max 400A
Ambient temperature use	-40 ℃ to +40 ℃ /55 ℃
Shock resistance	7J(Nm)
Earthing	M6
Box internal installation structure forms	Rail bracket install and brass mounting plate install
Box open structure forms	Open cover type and open door type
Remove plate	3mm detachable removal plate
Material thickness	Standard 1.5mm(Other customized)
Material enclosure	304/316L/Carbon steel

Order Specification:

Optional Removable Plate:

Outline dimensions:

Specification of Cover-Open box:

Specification of Door-Open box:

FAQ

1. Q: Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

4. Q: How about the certificates?
A: TUV/DNV/SIRA/CML/CE/CQST
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.

6. Q: How long to make a sample?
A: Samples will be prepared within three days.
7. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
