Home > Products > Oil Purifier > Chongqing Junneng LY series of Portable Filtering & Refueling removing impurities oil purifier

Chongqing Junneng LY series of Portable Filtering & Refueling removing impurities oil purifier

FOB Price

USD $1,200 - $2,500 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Chongqing port

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Flow:	30-50L/min	Working Pressure:	Normal Pressure
Place of Origin:	Chongqing, China	Brand Name:	Chongqinq Junneng oil purifier manufacturing	Model Number:	LY series
Usage:	Other, Hydraulic fluid oil	Voltage:	subject to order	Power(W):	0.75~505kw
Dimension(LWH):	subject to order	Weight:	subject to demension	Certification:	ISO9001
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

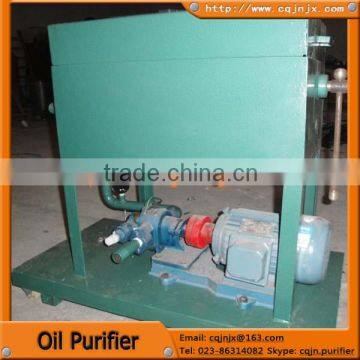

Chongqing Junneng LY series of Portable Filtering & Refueling removing impurities oil purifier filtration equipment

LY series plate pressure oil purifier is mainly used to separate the impurities and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure, easy operation, low cost, etc

Technical Parameters

Model		LY-30	LY-50	LY-100	LY-125	LY-150	LY-200	LY-300
Rated Flow(L/min)		30	50	100	125	150	200	300
Working pressure (MPa)		0~0.5
Filter Area sq.m.		≥0.3	≥0.39	≥1.3	≥1.54	≥1.89	≥2.01	≥3.1
Plate size (mm)		280×280			320×320
Way for compressing		Manually pressed spiral
The number of filter box		11	13	17	11	13	19	25
The Number of plate		12	14	18	12	14	20	26
Power supply		380V 50HZ
Total Power (KW)		0.75	1.1	2.2	2.2	3	4	5.5
Rate (r/min)		1440
Filter precision (μm)		≤5			≤3
Filter size (mm)		285×290			325×330
Inlet diameter (mm)		φ32	φ32	φ42	φ50	φ50	φ60	φ60
Outlet diameter (mm)		φ25	φ25	φ38	φ42	φ42	φ50	φ50
Dimension	L(mm)	750	800	850	800	850	920	1000
	W(mm)	530	530	530	600	600	600	600
	H(mm)	930	930	930	1100	1100	1100	1100
Weight (kg)		80	95	130	180	210	250	300

Attention:Dimension and weight will be changed with changing the technical specification.
