Touch hot runner Temperature Controller with MTC E 6 zone

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 20000 Set / Sets per Month
Port shanghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	MTCKING	Model Number:	MTC-E-6 zone	Shaping Mode:	Plastic Injection Mould
Product Material:	Other	Product:	Other, Plastic injection mold

Product Description

MTC-E Series

MTC-E Model hot runner temperature control, 4.3-inch touch screen with an interface card will not burn and self-protection technology, any short circuit and wrong, so that it will not be damaged.

MTC-E-8 Series hot runner temperature controller
01	Brand name	MTCKING
02	Model	MTC-E-6
03	Control method	Touch control, communication
04	Maximum control range	12 zone
05	Manipulation Language	English, Chinese, Korean, Japanese, etc.
06	Customization	Provide customized services
07	Screen Select	4.3-inch main screen
08	Display Screen	IPS-LCD, Removable ,Wired remote control
09	Size	360mm340mm130mm

Important Parameter

01	Control of temperature difference	±1℃
02	Cold high-end compensatiaon	≤±1℃ TC
03	Temperature control range:	50℃-450℃ ( Temperature units can be freely selected )
04	Total output power:	3.5KW
05	Maximum output current of single loop:	15A
06	Alarm range:	0-100℃ Free set
07	Application of the rmocouple model:	K/J model
08	Work power:	AC220V/380V 60HZ
09	Control	Digital PID control
10	Operational environment:	10℃-60℃,relative humidity35%H-85%RH,Noncorrosivity
11	Depending on your needs and meet your technical requirements

Product Features

01	4.3 inch touch display
02	Show current&outputs ratio
03	color sound and light
04	Fuse fusing warning
05	Detect ther mocpuple abnormal
06	Detect heating tube abnorrmal
07	SCR temperature
08	Detect SCR short or open
09	Limit large current ,prolonging
10	380V voltage protection,avoid card broken by misconnections
11	High quality industrial components,Suitable for any environment
12	Control linear voltage output,protect the heating tube
13	New interface,completely avoid card broken
14	Software and the output line function
15	Single card control,easy to maintain
16	Depending on your needs and meet your technical requirements

Exterior Photos

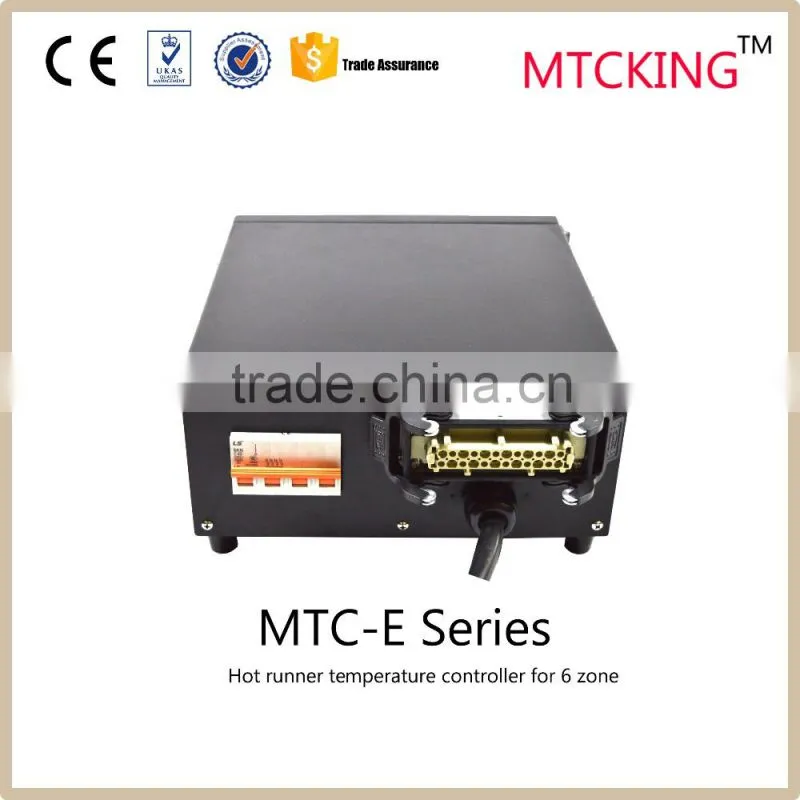

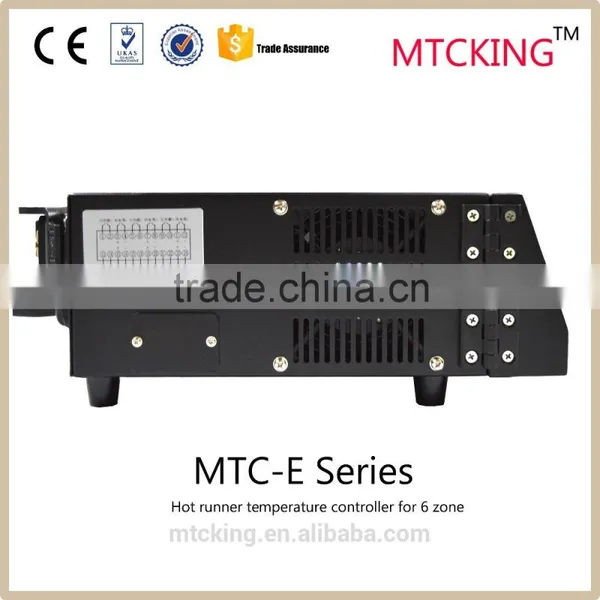

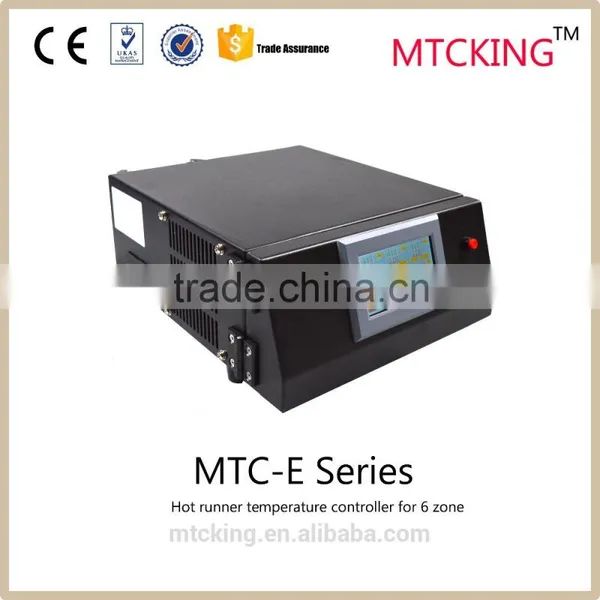

Excellent and concise, intelligent MTCE hot runner temperature controller

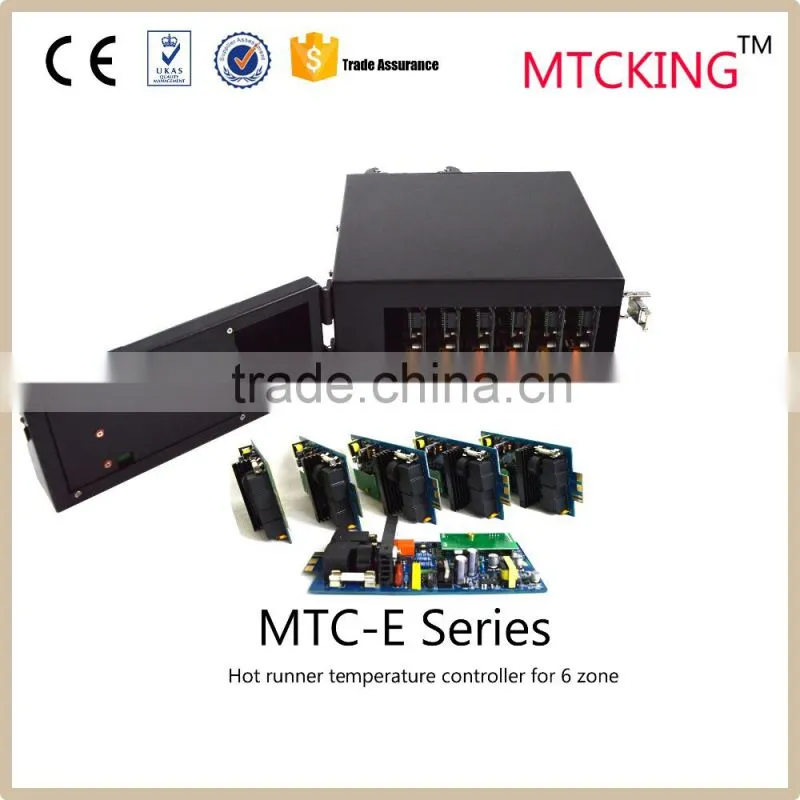

After the open, you can see the communication function hot runner temperature control card

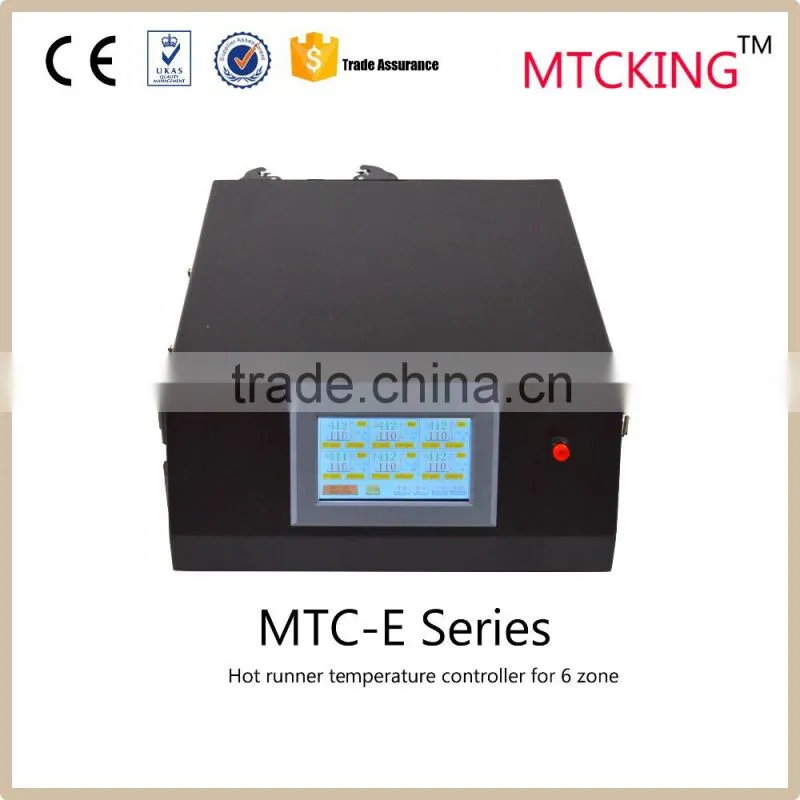

Home screen

4.3 inches touch screen, the status of each temperature control zone can be very clear, free to control the temperature control zones.

Sixth Zone Control screen

The interface of The sixth temperature control zone, you can view the specific parameters.

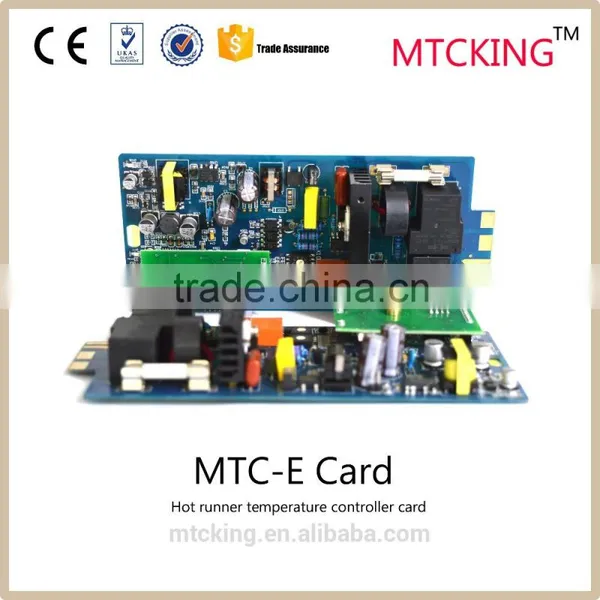

Communication Cards

Touch screen can easily control the hot runner temperature control card, after receiving the communication information, it started working.

National patent Interface

Completely avoid “burn card ”,the actual effective contact area is five times that of traditional interface，Over-current capability is three times that of traditional interface。

Fitting

01	Heavy-duty cable	5m Standard configuration
02	Power cable	5m Standard configuration
03	Power plug	16A/32A or other
04	Standby screen	According to order quantity
05	standby control card	According to order quantity
06	Manual	1
07	Depending on the need, you can customize
