50W 75W 100W Stainless Steel Sensor Hand Sanitizer Dispenser Laser Marking Machine

this model of laser engraving machine would be shipped in woden case

Specifications

Hand Sanitizer Dispenser Laser Marking Machine
.large size metal material.
2.ball screw system
3.rotary equipment
4.CE ISO

             Promotion!! Hand Sanitizer Dispenser Laser Marking Machine

nameplate printing Machine is one of our best-sellers of our company.





                                            Key Features

1*.Imported high quality semiconductor laser diode pumped Nd: YAG



2*.High quality laser beam mode(10000 hours), high lightning conversion  efficiency.



3*.Low power consumption, cost effective and long lifespan, convenient to maintenance.



4*.Sturdy and compact structure. HP-26 running stability with high safety. Mainly used for metal, alloy and oxide, ABS resin, ink ,electronic components, jewelry, auto parts, telecommunication products, plastic keys, integrated circuit (IC) industry.



5*.Easy to install and operation, marking accuracy is good.



6*.Integrated marking software with user-friendly design.



7*.Various connection mode for optimzing to achieve automaically marking.



8*.Versatile marking software is compatible with Coreldraw,AutoCAD,Photoshop.



9*.Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking  supporting, serial number, bar code, 2D code, incrementing serial No., automatic jump codes, etc.



10*.Excellent for long-lasting operation.



                                      Technology Parameters

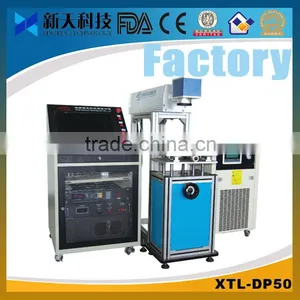

Model	Hand Sanitizer Dispenser Laser Marking Machine XTL-DP50
Laser power	50 w
Laser wavelength	1064nm
Cooling way	Water cooling
Beam quality	m2<6
Laser repetition frequency	≤50KHz
Standard marking area	110mm x 110mm
Optional marking area	150mm x 150mm
Marking depth	≤0.3mm
	The depth is adjustable according to different materials
Linear speed	≤7000mm/s
Min. Line width	0.02mm
Min. letter	0.25mm
Repeatable accuracy	±0.001mm
Software supported	CorelDraw, AutoCAD, Photoshop etc
Gross power	≤2.5KW
Electricity source	220V/50Hz /15A



                                                Guarantee

1.One year quality guaranty, the semiconductor laser marking machine with main parts shall be changed free of charge when problems happened during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.12 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.



                                               Application Field

Electronic component, IC chips , panels, measuring tools, all kinds of mechanicao parts,hardware tools, dials and  other carbide materials





                          Marking machine components

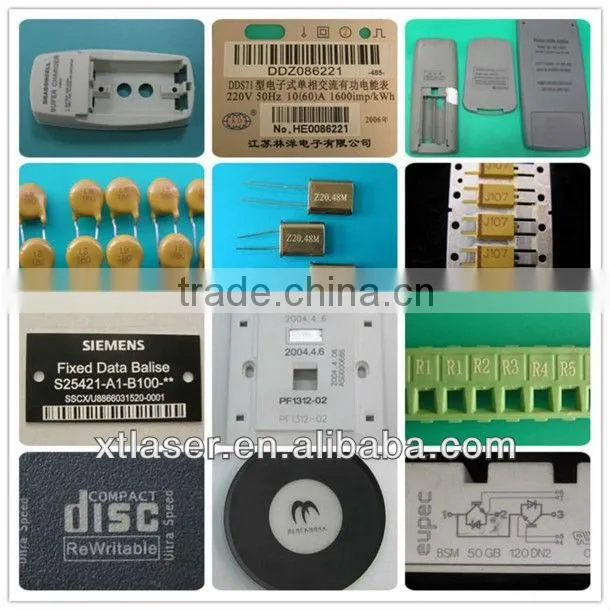

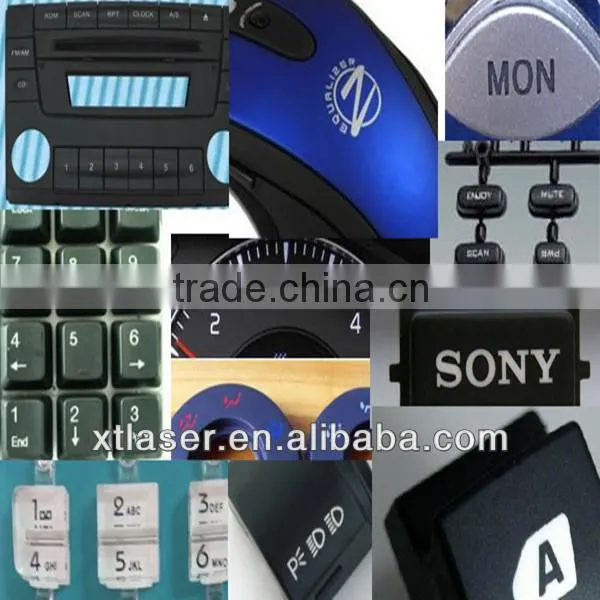

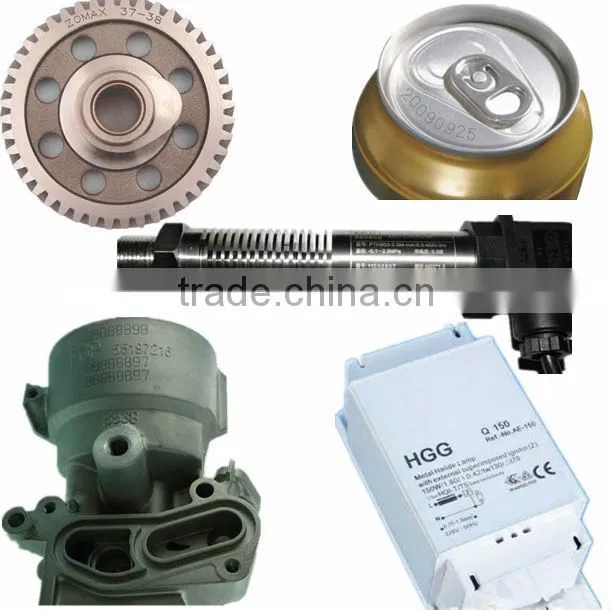

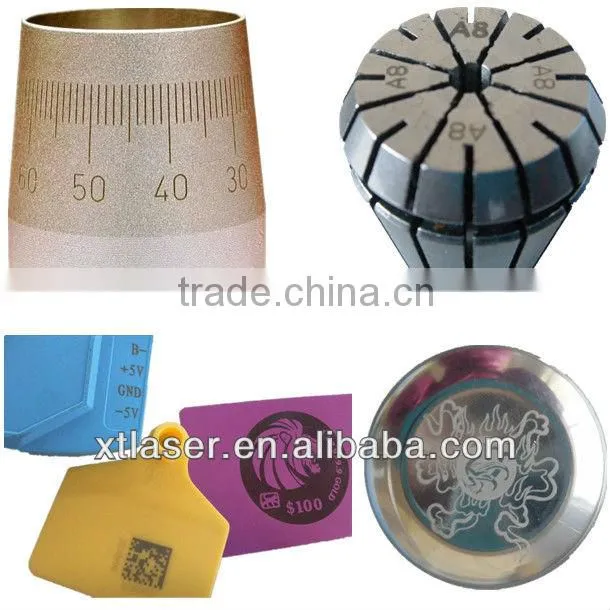

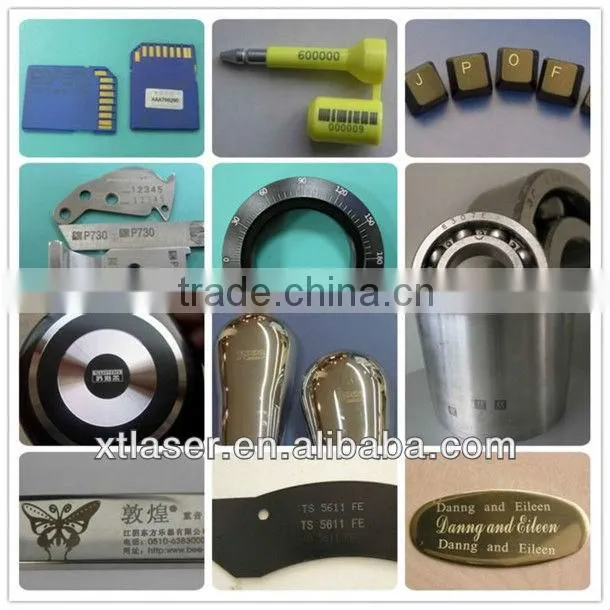

                                          marking photos





                                                  Certifications

laser engraving machine has been approved by CE/ISO





                                                   About Us

Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004.

 It is a professional manufacturer engaged in the research,development,

production and service of  Diode pumped Laser marking machine,

Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,

Laser welding machine, Laser cutting machine and Laser trimming machine.

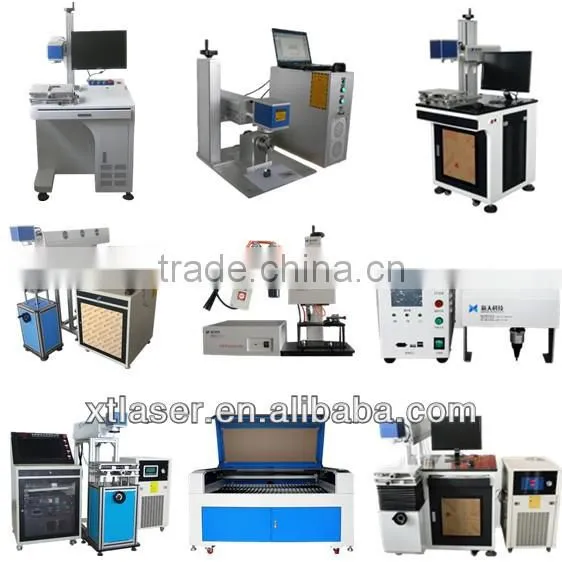

                       Other Types of  Laser Marking Machine

 Except for laser engraving machine , we also offer you : Fiber laser making machine, Pneumatic marking machine, CO2 RF laser marking machine
