2014 hot sale portable mini fiber laser marking machine for sale

FOB Price

USD $1,000 - $4,500 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	Other, Fiber Laser, Fiber Laser
CNC or Not	Yes	Cooling Mode	Other, Air Cooling, Air Cooling of portable fiber laser marking machine
Control Software	EZCAD	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy	High precision, 0.01mm of portable fiber laser marking machine	Place of Origin	Shandong, China
Brand Name	XT	Model Number	XTL-FP20portable fiber laser marking machine
Power(W)	20W	Certification	CE, ISO
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Delievered will be by wooden case of portable fiber laser marking machine

Product Description

2014 hot sale portable mini fiber laser marking machine for sale

Best service/Good quality/Lowest cost

Introductions of portable fiber laser marking machine
YAG laser marker is a kind of solid laser marking machine which has the most extensive application and mature technologies. It is popular for the High photoelectric conversion rate,Low power consumption and stable laser output.

Highlights of portable fiber laser marking machine
1. imported UK ceramic condenser chamber, resistant to elevated temperature and corrosion, long life (8-10 years), high photoelectric conversion rate, no need to adjust the lifting plate form to focus when doing engraving within 3mm depth, The speed of making one-time 1mm engraving is 3 times than our Opponent
2. Large power,controled by eletric and software,tunable
3. Low cost,without ink and other print consumables
4. Scanned with high precision by galvo head
5. 24 hrs continuously working
6. Depth: aluminium plate 5mm, steel plate 3mm
7 .Speed:5mm x 5mm steel plate:0.6mm in 10 minutes

Laser marking machine's Spec.

Laser Power	10W 20W 30W 50W
Laser Brand	Germany IPG Fiber /Raycus Fiber
Galvo Scanner	USA or Germany made or China made optional
Laser wave length	1064nm
Marking Area	70×70mm 110×110mm 160×160mm optional
Marking speed	≤7000mm/s
marking depth	0.05~0.5 mm (accord to the material)
Mini.Line width	0.01mm
Mini.character	0.1mm
Cooling way	Air cooling
Support software	User friendly interface
	set and deal different layers graphic in seperate
	Support PLT,PCX, AL, DXF, BMP,JPG formats file
	compatible AutoCAD, CorelDraw, Photoshop etc software
	Proprietary software for laser marking machine
Character	convenient control, set & deal separately
	Automatic serialization, date coding
	letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment
Optional device	On-line flying marking, 3D dynamic marking,Rotary marking

Exact materials can be used by XINTIAN portable fiber laser marking machine:

Materials	mark		mark
Stainless Steel/ Stainless/Aluminum	√	Carbon Fiber/Carbon Nanotube	√
Makrolon polycarbonate	√	Carbon Nanotube	√
Bayers Bayblend FR	√	Clear coat anodized aluminum	√
Brass	√	Cobalt Chrome Steel	√
Black/White ABS	√	Colored Delrin (Black, Brown)	√
Silicon Carbide	√	Compacted Powder Iron /Iron Phosphate Coating	√
White PEEK	√	Copper	√
GE Plastics Polycarbonate Resin	√	DAP - Diallyl Phthalate	√
Glass filled PEEK	√	GE Plastics Polycarbonate Resin 121-R	√
Glass filled teflon	√	Silicon Steel	√
Hard coat anodized aluminum	√	Yellow Chromate Aluminum
Machine Tool Steel	√	Nickel Plated Brass/Gold/Kovar/steel	√
Magnesium	√	Nylon	√
Metal Plated Ceramics	√	Polybutylene Terephthalate	√
Molybdenum	√	Polysulphone	√
Nickel Plated 1215 Mild Steel	√	Rynite PET	√
Silicon Wafers	√	Santoprene	√
Zinc Plated Mild Steel	√	Various Inconel Metals (Nickel-Chromium Super Alloys	√
* You can send your materials for our testing marking for type choice

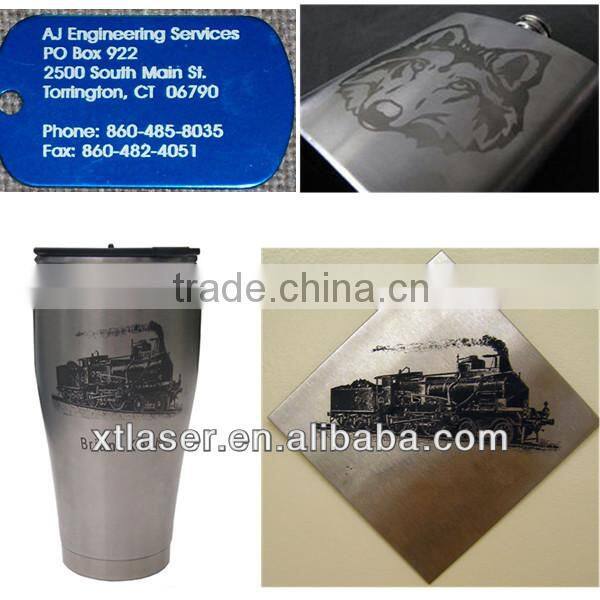

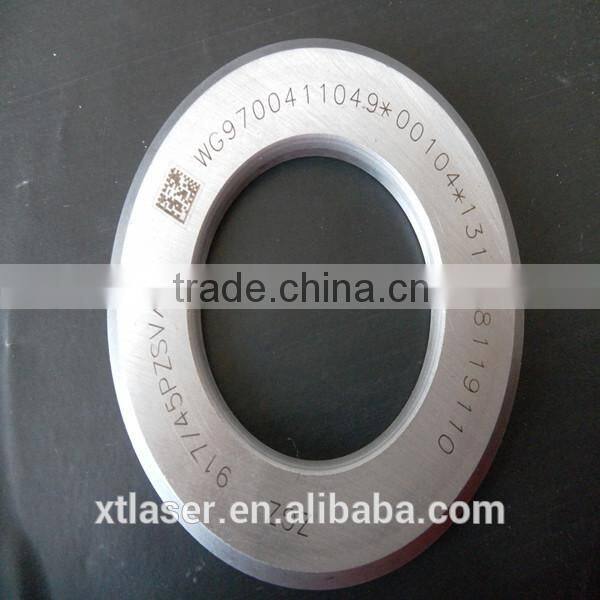

Marking samples of portable fiber laser marking machine

Package of portable laser marking machine

Certificate of portable fiber laser marking machine

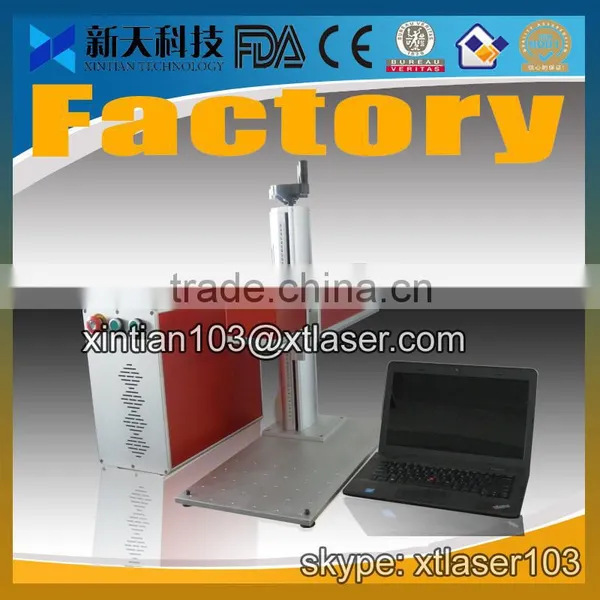

Factory

Namecard

Company Profile

Jinan Xintian Technology Co., Ltd.

Jinan Xintian Technology Co.,Ltd was established in 2004,it is a professional manufacturer engaged in the research, development, production and service of laser marking machine,fiber laser marking machine.pneumatic marking machine,laser engraving machine,laser welding machine, laser cutting machine and laser trimming machine. We possess high efficient cooperated technology and sevice team, high coordinated producing and service network. Our company strictly according to ISO9001:2008 international quality management system elements of conduct production,process inspection,incoming inspection,various links quality,Pay attention to produce aftersales quality feedback and continuous imporvement principle,ensure products performance and stable quality Our company will continue its efforts in every colleague support,in other fields to make greater achievements.Jinan Xintian Technology Co.,Ltd also met with more excellent products and more satisfied with the cost performance of more satisfactory service to acknowledge old and new customers for supports love.
