Automatic High Speed Metal Ridge Cap Guttering Sheet Roll Forming Machine

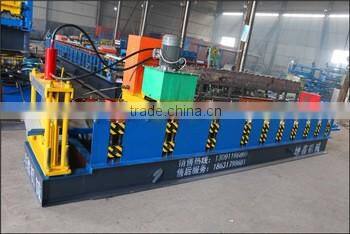

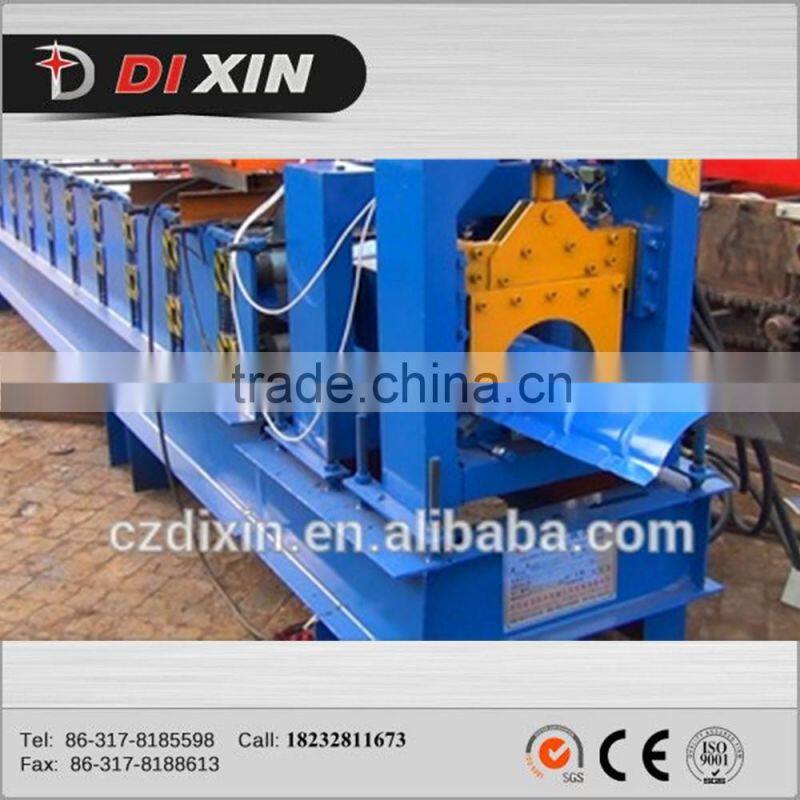

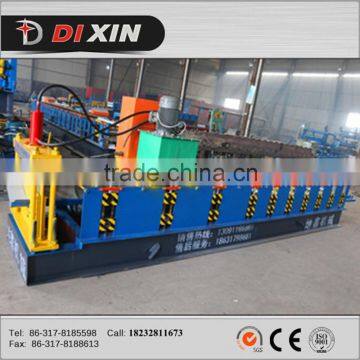

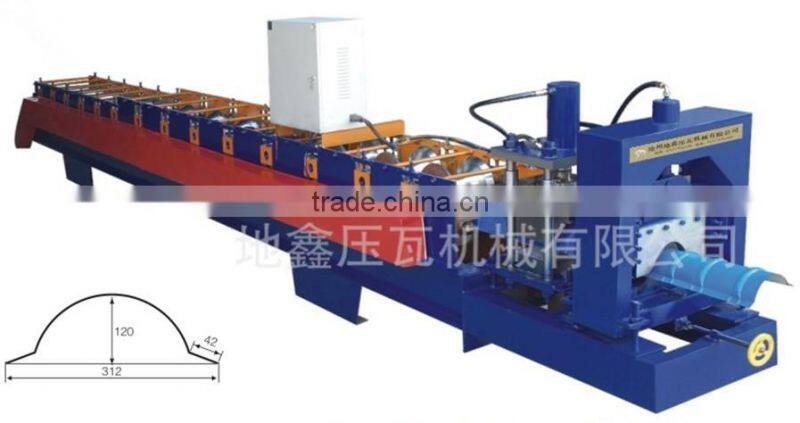

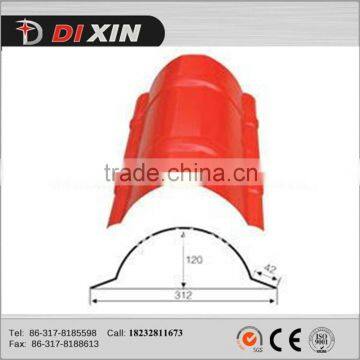

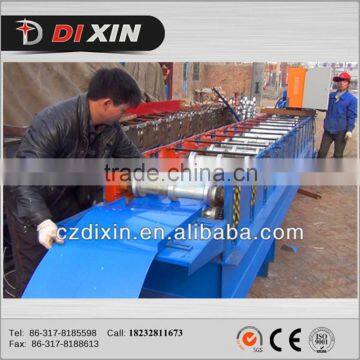

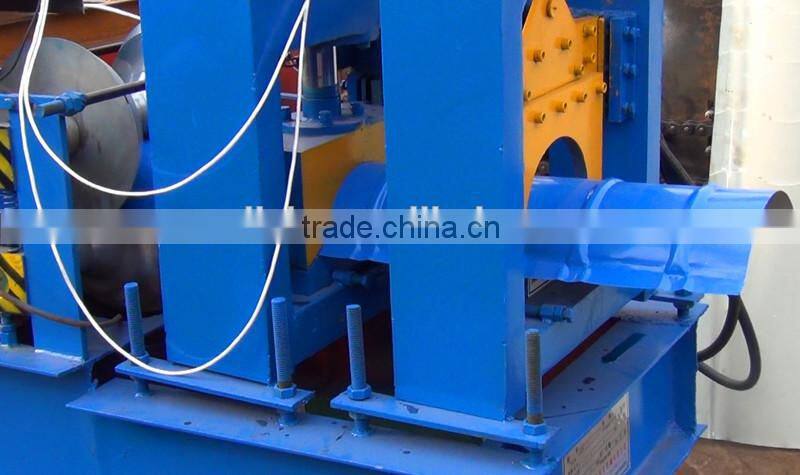

1. photoes of forming machine
2. technical parameters
| 1 | Name of commodity & specification | DX312 ridge tile roll forming machine | |||||
| 2 | Main motor power | 4kw, 3 phase | |||||
| 3 | Hydraulic motor power | 3kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
| 6 | Control System | PLC Delta Inverter | |||||
| 7 | Main Frame | 400mm H-Beam | |||||
| 8 | Backboard Thickness | 18mm | |||||
| 9 | Chain Size | 33mm | |||||
| 10 | Feeding Material | color steel coils | |||||
| 11 | Feeding Thickness | 0.3-0.8mm | |||||
| 12 | Feeding Width | 600mm | |||||

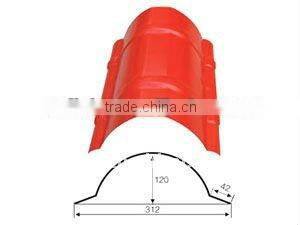

| 13 | Effective width | 312mm | |||||
| 14 | Productivity | 0-9m/min | |||||
| 15 | Roll Station | 14 | |||||

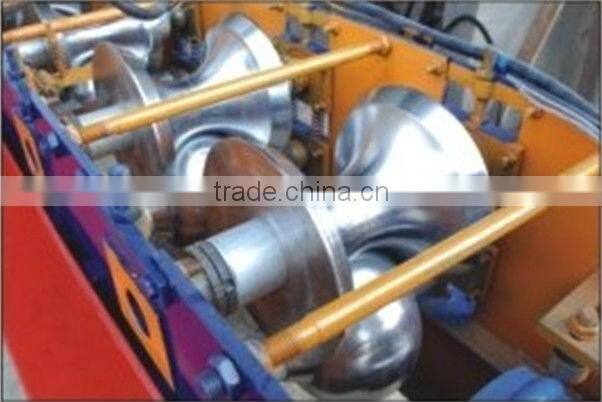

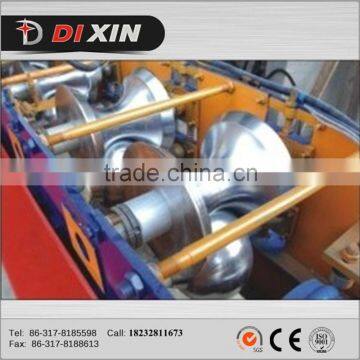

| 16 | Roller Diameter | 65mm | |||||
| 17 | Roller material | 45# steel | |||||
| 18 | Cutter material | Cr12 , quenched | |||||
| 19 | Cr-Plating Size | 0.05mm | |||||
| 20 | Overall Size | 7500×1000×1200mm | |||||
| 21 | Total Weight | 3T | |||||
| 22 | Components | Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Glazed Tile Pressing Device--------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set | |||||
| 23 | Workflow | Manual decoiling----feeding and guiding----roll forming----pressing----cut to length----run out table | |||||
| 24 | Package | nude in the container | |||||
| 25 | Minimum order quantity | 1 set | |||||
| 26 | Payment terms | T/T(30% T/T pay in advance, the remaining 70% pay before ship) | |||||
| 27 | Delivery time | 30 working days later after receiving the deposit | |||||
| All technical parameters can be changed, according to user's need. | |||||||

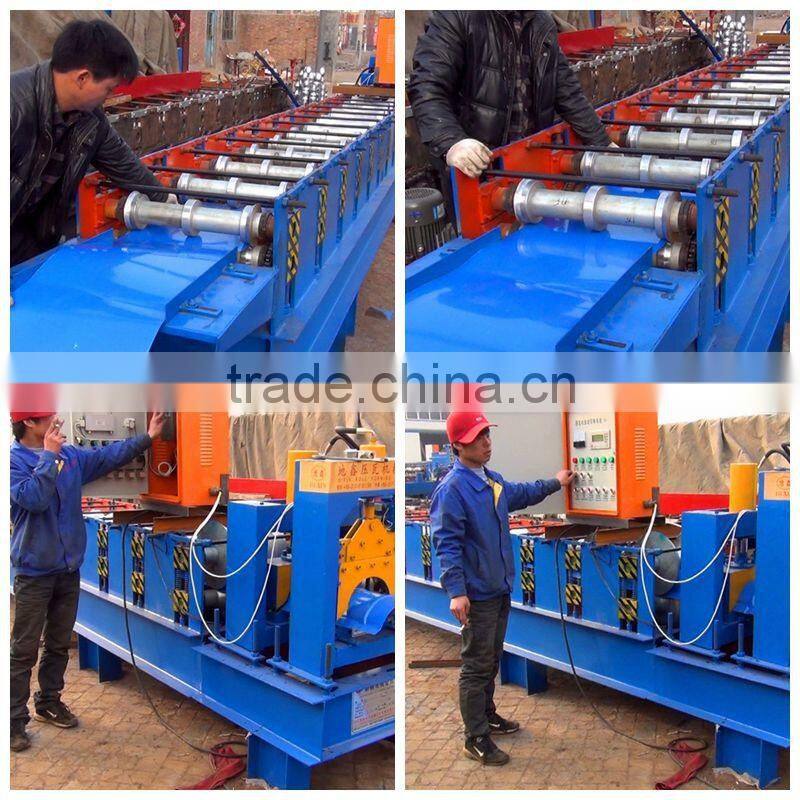

3. working flow
4. other panel
Welcome to DIXIN, Welcome to China!
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you,car pick up to send.
Thanks for watching our products,if you have the interests,please leave your message,or you can contact us ,speical design is avaliable!
The machine is bare packing.
Usually one machine can be put into one 20feet container.
We use steel wire to fix the machine in the container.
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
