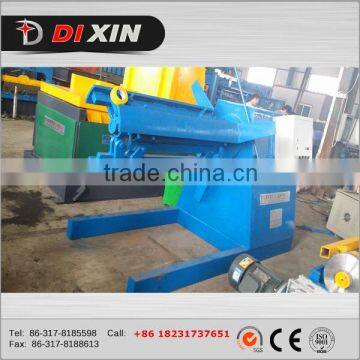

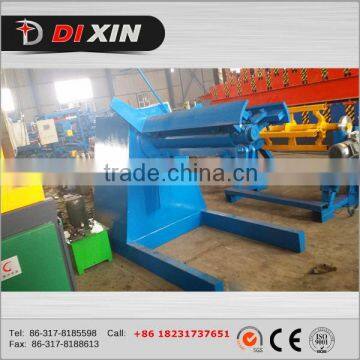

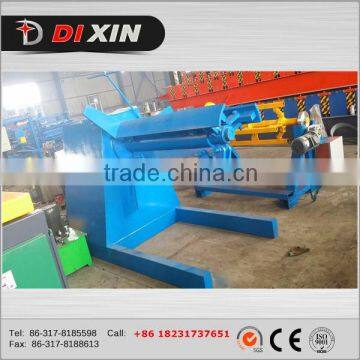

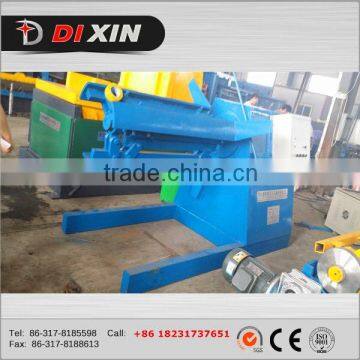

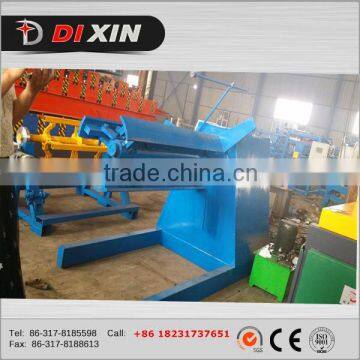

2016 Color Coil 5 Tons Hydraulic Uncoiler/ Decoiler Machine Price
US$ 6,500 - 10,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Decoiler
Tile Type:
Colored Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10 Tons Steel Coil Hydraulic Uncoiler Machine/ DecoilerUS$ 6,500 - 10,500MOQ: 1 Set -
10 Tons Automatic Decoiler/ Hydraulic UncoilerUS$ 6,500 - 10,500MOQ: 1 Set
-
10 Tons Color Steel Coil Decoiler/ Uncoiler MachineUS$ 6,500 - 10,500MOQ: 1 Set
-
China Supplier Color Steel Coil 5 Tons DecoilerUS$ 6,500 - 10,500MOQ: 1 Set
-
DX Uncoiler,Decoiler,Hydraulic Uncoiler/roll Forming Machine ManufacturerUS$ 6,500 - 10,500MOQ: 1 Set
Condition
New
Type
Decoiler
Tile Type
Colored Steel
Use
Step
Production Capacity
10-15m/min
Place of Origin
Hebei, China
Brand Name
DIXIN
Model Number
DX 10 TONS DECOILER
Power(W)
7.5kw
Voltage
380V 50Hz 3phases
Dimension(L*W*H)
5m*1.3m*1.3m-15m*1.3m*1.4m
Weight
3.2T
Certification
ISO9001/BV Certification
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
2016 color coil 5 tons hydraulic uncoiler/ decoiler machine price
Application
This machine is used to hold coil, and uncoil it, and feed into roll forming machine. This machine can rotated clockwise and anti clockwith. Also the speed is adjustable. With the help of limit switch box, this uncoiler can work with roll forming machine synchronized. It greatly save the labours and improved the working efficiency.
Hydraulic decoiler, Manual decoiler, uncoiler, feeding machine
Main parameter:
1. Install size: 2700mm*1750mm*1700mm
2. The coil width: ≤ 1250 mm
3. Coil inside diameter: 480-510mm
4. Productivity: 0-35m/min
5. Main motor power: 3 KW
6. Hydraulic unit power: 3 KW
7. Electric control system: PLC vector inverter
8. Capacity: 5tons, 8 tons, 10tons
We also can design and manufacture as per your request.
Main parameter:
1. Install size: 2700mm*1750mm*1700mm
2. The coil width: ≤ 1250 mm
3. Coil inside diameter: 480-510mm
4. Productivity: 0-35m/min
5. Main motor power: 3 KW
6. Hydraulic unit power: 3 KW
7. Electric control system: PLC vector inverter
8. Capacity: 5tons, 8 tons, 10tons
We also can design and manufacture as per your request.
| Advantage of our decoiling machines |
| High quality |
| Lower cost |
| Durableness |
| High efficiency |
| Reliable working |
| Low failure rate |
| Low energy consumption |
| Trouble free after sales service |
